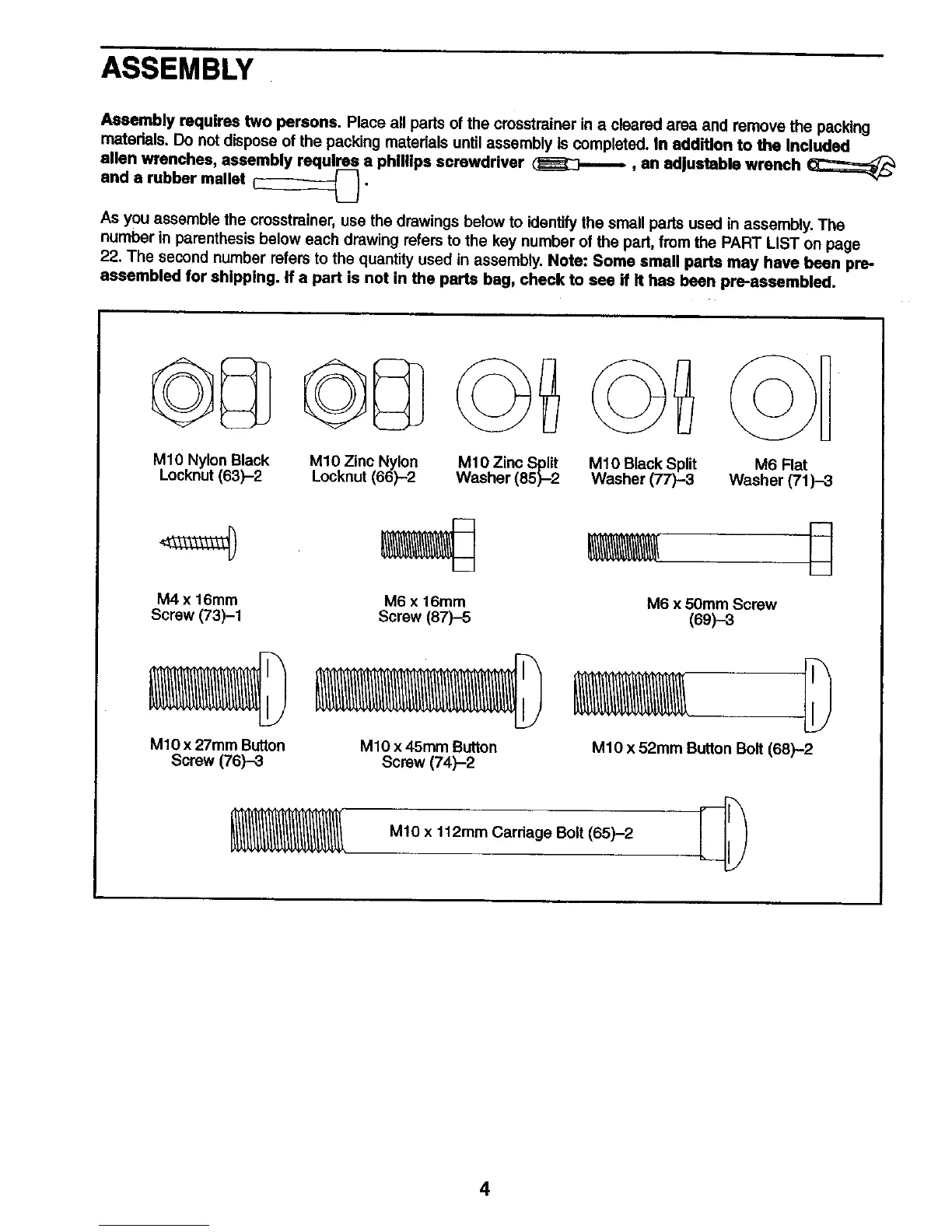

ASSEMBLY
Assembly requires two persons. Place all parts of the crosstrainer in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. In addition to the Included
allen wrenches, assembly requires a phillips screwdriver
- _. C_W_--..---, an adjustable wrench
and
a
rubber
mallet
As you assemble the crosstrainer, use the drawings below to identify the small parts used in assembly. The
number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page
22. The second number reters to the quantlty used in assembty. Note: Some small parts may have been pre-
assembled for shipping. If a part is not in the parts bag, check to see if It has been pre-assembled.
M10 Nylon Black
Locknut (63)-2
M10 Zinc Nylon
Locknut (66)-2
M10 Zinc Split
Washer (85)-2
M10 Black Split
Washer (77)-3
M6 Flat
Washer (71)-,3
M4x 16ram M6 x 16mm M6 x50mm Screw
Screw (73)-1 Screw (87)-5 (69)-3
M10 x 27ram Button M10 x 45mm Button M10 x 52mm Button Bolt (68)-2
Screw (76)-3 Screw (74)-2
M10 x 112mm Carriage Bolt (65)-2
4
