9. Insert the wires (H) into the top of the Right
Upright (84).
Next, locate the Wire Tie (113) included with the
hardware. Insert the Wire Tie through the small
hole in the side of the Right Upright (84). Then,
tighten the Wire Tie around the wires (H), and
cut off the end of the Wire Tie.
9
83
H
8
83
H

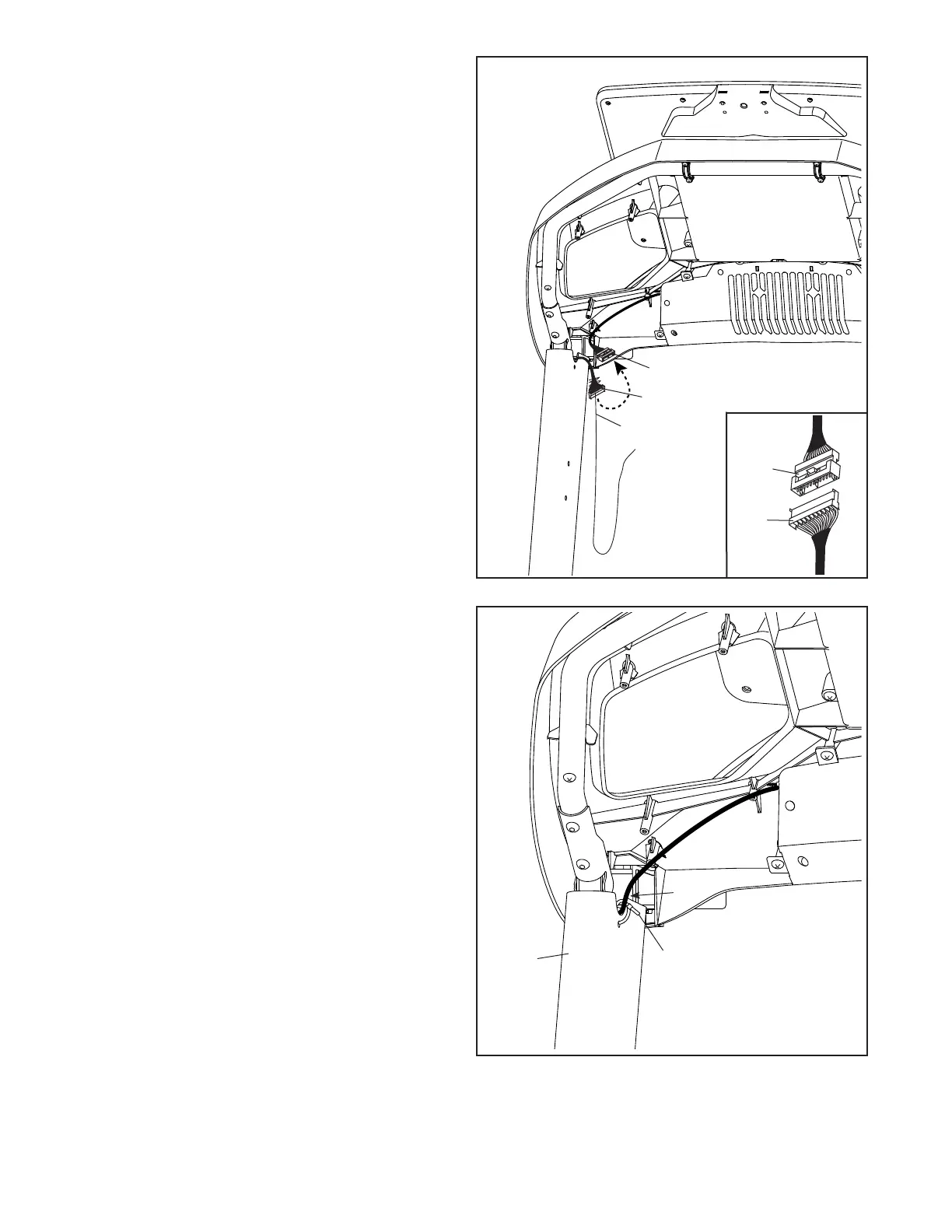

8. See the inset drawing. Connect the Upright
Wire (83) to the console wire (H). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove any wire
ties (I) from the Upright Wire.
113
84
H
I
To Next Page
