11
11
11
8
9
12
78
78
79
79
Hexagonal
Holes

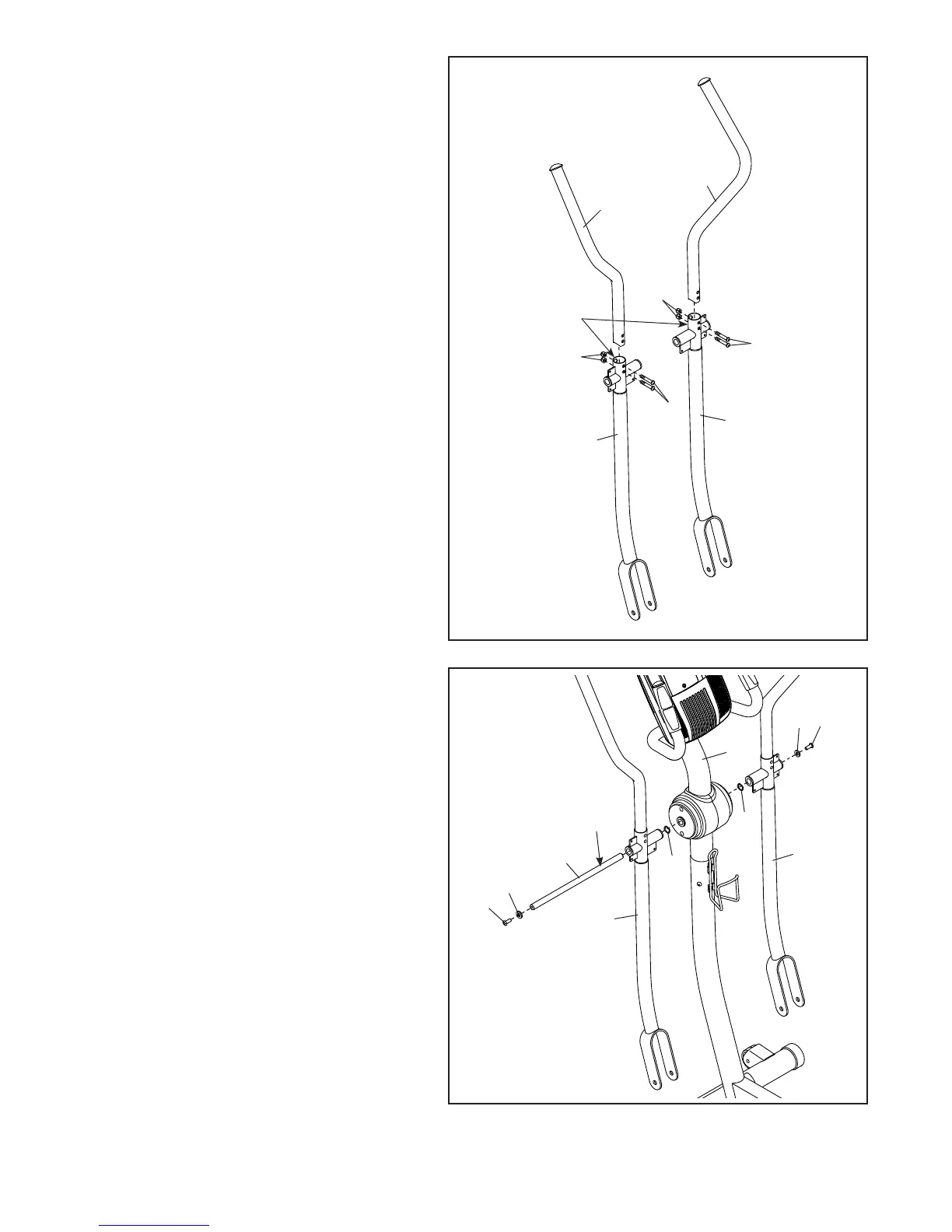

11. Identify the Left Upper Body Arm (8) and the
Left Upper Body Leg (11), which are marked
with “Left” stickers, and orient them as
shown.
Insert the Left Upper Body Arm (8) into the
Left Upper Body Leg (11).
Attach the Left Upper Body Arm (8) with two
M8 x 41mm Bolts (78) and two M8 Jam Nuts
(79). Make sure that the Jam Nuts are in
the hexagonal holes in the Left Upper
Body Leg (11).
Attach the Right Upper Body Arm (9)
to the Right Upper Body Leg (12) in the
same way.
12
12. Using a small plastic bag to keep your
fingers clean, apply a generous amount of
the included grease to the Pivot Axle (74)
and to two Wave Washers (111).
Insert the Pivot Axle (74) into the Upright (3)
and center it.
Slide a Wave Washer (111) onto each end of
the Pivot Axle (74).
Orient the Left Upper Body Leg (11) as
shown, and slide it onto the left end of the
Pivot Axle (74). Slide the Right Upper Body
Leg (12) onto the right end of the Pivot Axle.
At the same time, tighten an M8 x 23mm
Screw (84) with an M8 Washer (88) into
each end of the Pivot Axle (74).
88
84
111
88
74
3
84
111
12
11
Grease
To Next Page
