13
15

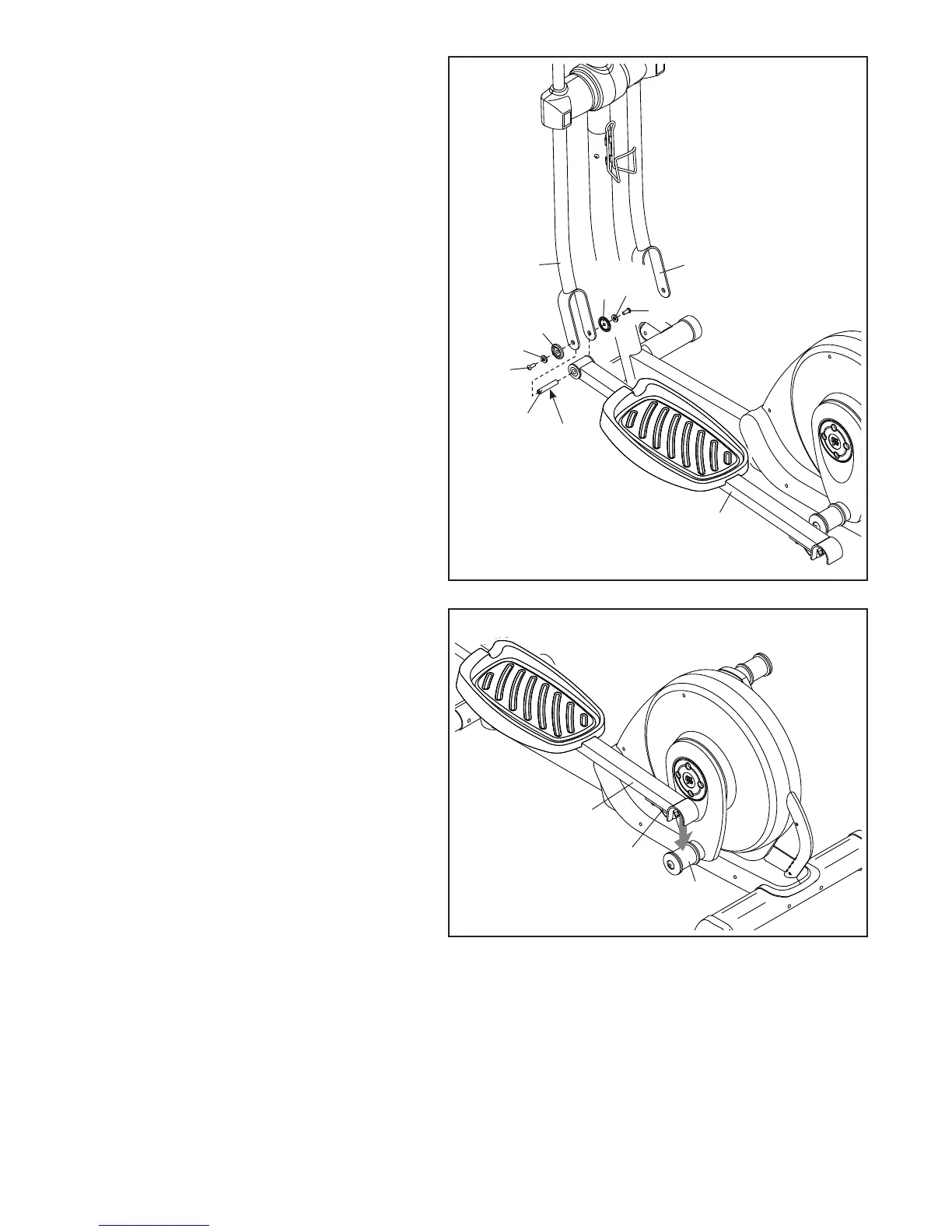

15. Apply a small amount of grease to one of the
Pedal Arm Axles (32).
Tighten an M8 x 23mm Shoulder Screw
(115) with an M8 Washer (88) and a Pedal
Arm Cover (31) a few turns into the Pedal
Arm Axle (32).
While a second person holds the front end
of the Left Pedal Arm (14) inside the bracket
on the Left Upper Body Leg (11), insert the
Pedal Arm Axle (32) into both parts.
Next, tighten an M8 x 23mm Shoulder Screw
(115) with an M8 Washer (88) and a Pedal
Arm Cover (31) a few turns into the Pedal
Arm Axle (32). Tighten both Shoulder
Screws at the same time; to avoid dam-
aging the Pedal Arm Covers, do not
overtighten the Shoulder Screws.
Repeat this step to attach the Right Pedal
Arm (not shown) to the Right Upper Body
Leg (12).
Grease
115
32
88
31
12
11
14
31
16. Lift the latch on the underside of the Left
Pedal Arm (14), and set the Left Pedal Arm
on the left Crank Bushing Sleeve (43).
Release the lever, and make sure that the
Left Pedal Arm (14) is securely connected to
the Crank Bushing Sleeve (43).
Connect the Right Pedal Arm (not shown)
in the same way.
See step 5. Tighten the M8 x 69mm Bolt
(80) and the two M8 x 23mm Screws (84).
Latch
43
14
16
88
115
