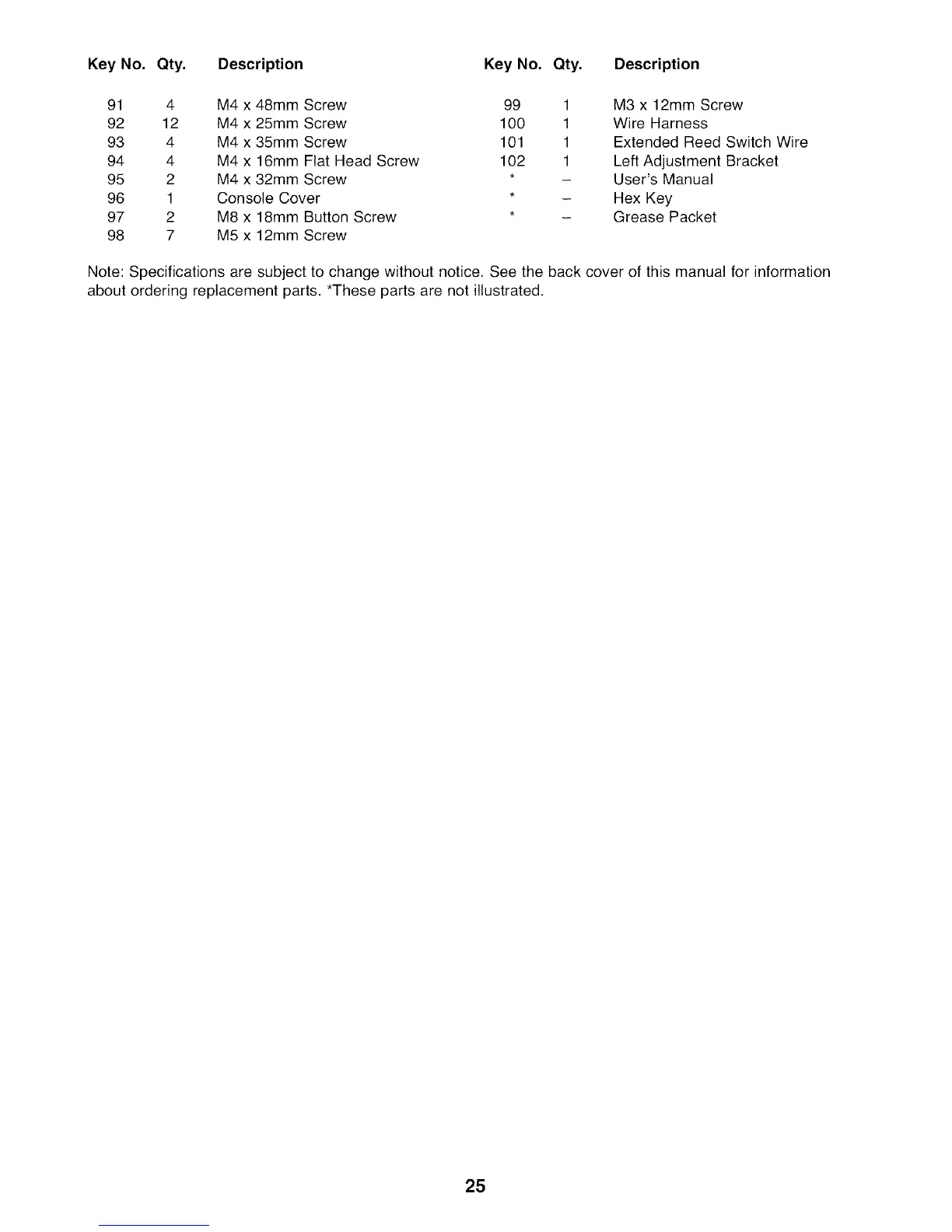

Key No. Qty. Description Key No. Qty. Description
91 4 M4 x 48mm Screw 99 1 M3 x 12mm Screw
92 12 M4 x 25mm Screw 100 1 Wire Harness
93 4 M4 x 35mm Screw 101 1 Extended Reed Switch Wire
94 4 M4 x 16mm Flat Head Screw 102 1 Left Adjustment Bracket
95 2 M4 x 32mm Screw * - User's Manual
96 1 Console Cover * - Hex Key
97 2 M8 x 18mm Button Screw * - Grease Packet
98 7 M5 x 12mm Screw
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
25
