7. 7

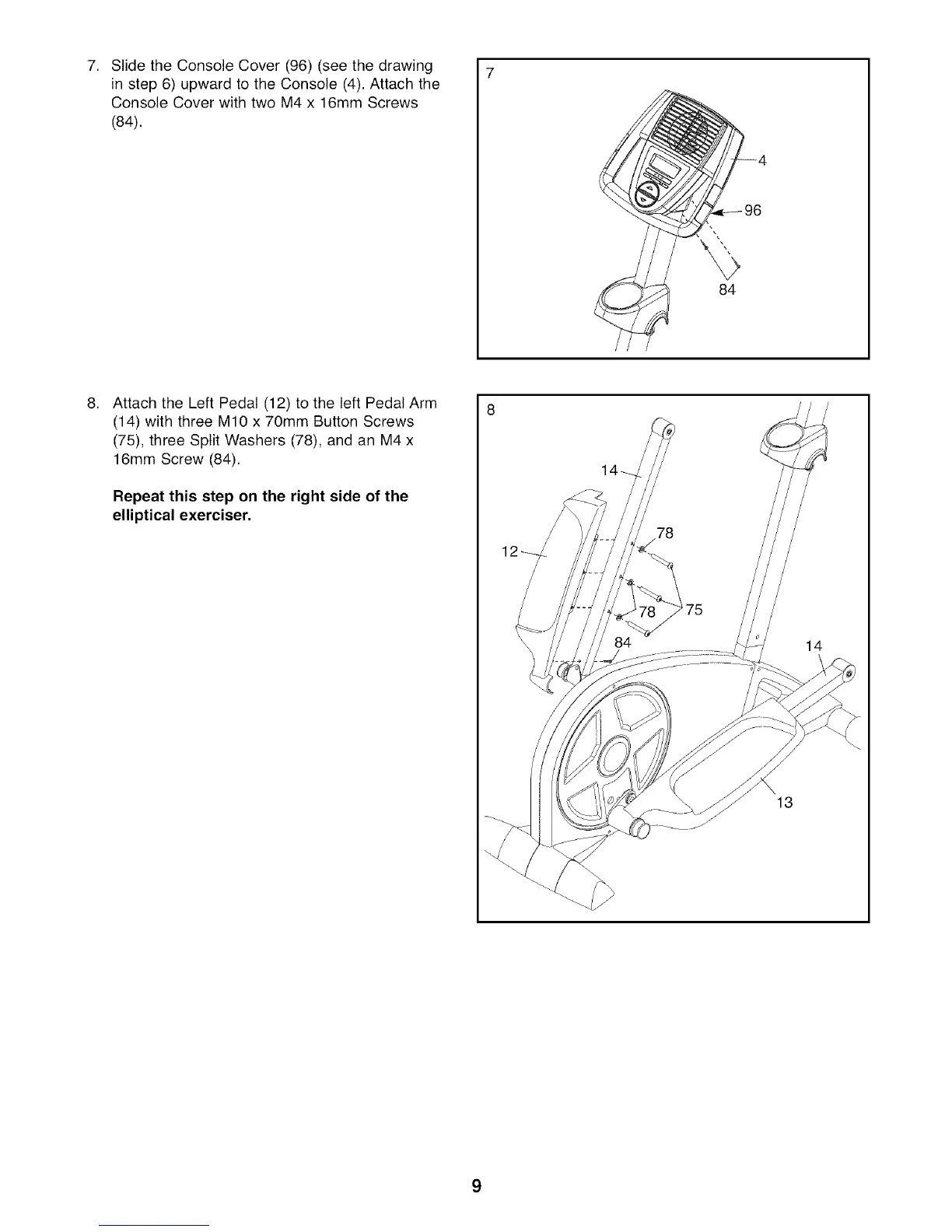

SlidetheConsoleCover(96)(seethedrawing
instep6)upwardtotheConsole(4).Attachthe
ConsoleCoverwithtwoM4x16mmScrews
(84).
84
,
Attach the Left Pedal (12) to the left Pedal Arm
(14) with three M10 x 70mm Button Screws
(75), three Split Washers (78), and an M4 x
16mm Screw (84).
Repeat this step on the right side of the
elliptical exerciser.
14
13
9
