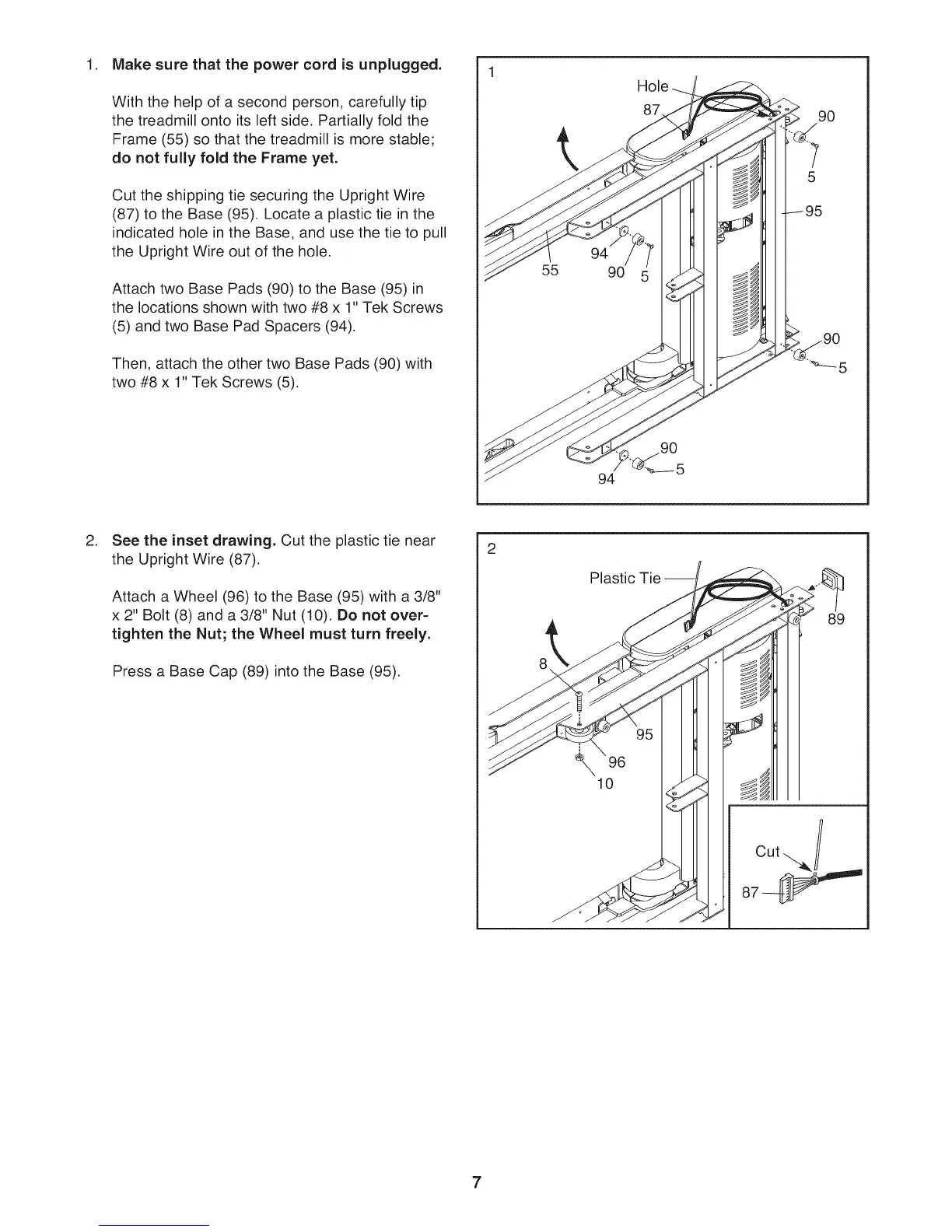

1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the shipping tie securing the Upright Wire
(87) to the Base (95). Locate a plastic tie in the
indicated hole in the Base, and use the tie to pull
the Upright Wire out of the hole.
Attach two Base Pads (90) to the Base (95) in
the locations shown with two #8 x 1" Tek Screws
(5) and two Base Pad Spacers (94).
Then, attach the other two Base Pads (90) with
two #8 x 1" Tek Screws (5).
94
87
90
90
5
.
See the inset drawing. Cut the plastic tie near
the Upright Wire (87).
Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
Plastic Tie--
10
Cut. l
To Next Page
