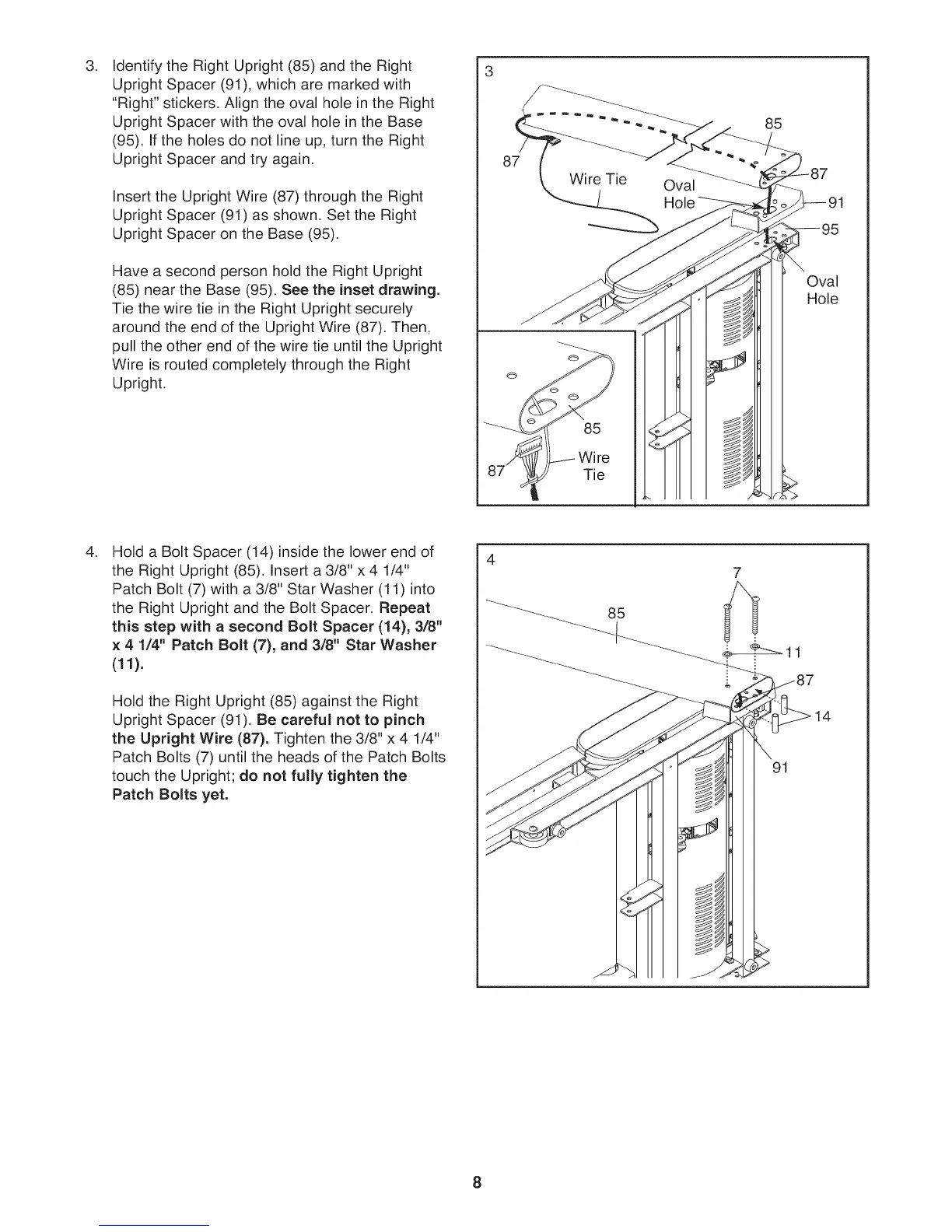

3. 3
IdentifytheRightUpright(85)andtheRight
UprightSpacer(91),whicharemarkedwith
"Right"stickers.AligntheovalholeintheRight
UprightSpacerwiththeovalholeintheBase
(95).Iftheholesdonotlineup,turntheRight
UprightSpacerandtryagain.
InserttheUprightWire(87)throughtheRight
UprightSpacer(91)asshown.SettheRight
UprightSpacerontheBase(95).
HaveasecondpersonholdtheRightUpright
(85)neartheBase(95).Seetheinsetdrawing.
TiethewiretieintheRightUprightsecurely
aroundtheendoftheUprightWire(87).Then,
pulltheotherendofthewiretieuntiltheUpright
WireisroutedcompletelythroughtheRight
Upright.
87
Tie
85
Oval
Hole
,
Hold a Bolt Spacer (14) inside the lower end of
the Right Upright (85). Insert a 3/8" x 4 1/4"
Patch Bolt (7) with a 3/8" Star Washer (11) into
the Right Upright and the Bolt Spacer. Repeat
this step with a second Bolt Spacer (14), 3/8"
× 4 1/4" Patch Bolt (7), and 3/8" Star Washer
(11).
Hold the Right Upright (85) against the Right
Upright Spacer (91). Be careful not to pinch
the Upright Wire (87). Tighten the 3/8" x 4 1/4"
Patch Bolts (7) until the heads of the Patch Bolts
touch the Upright; do not fully tighten the
Patch Bolts yet.
4
85
7
---. _ .,- _._- 87->', _
To Next Page
