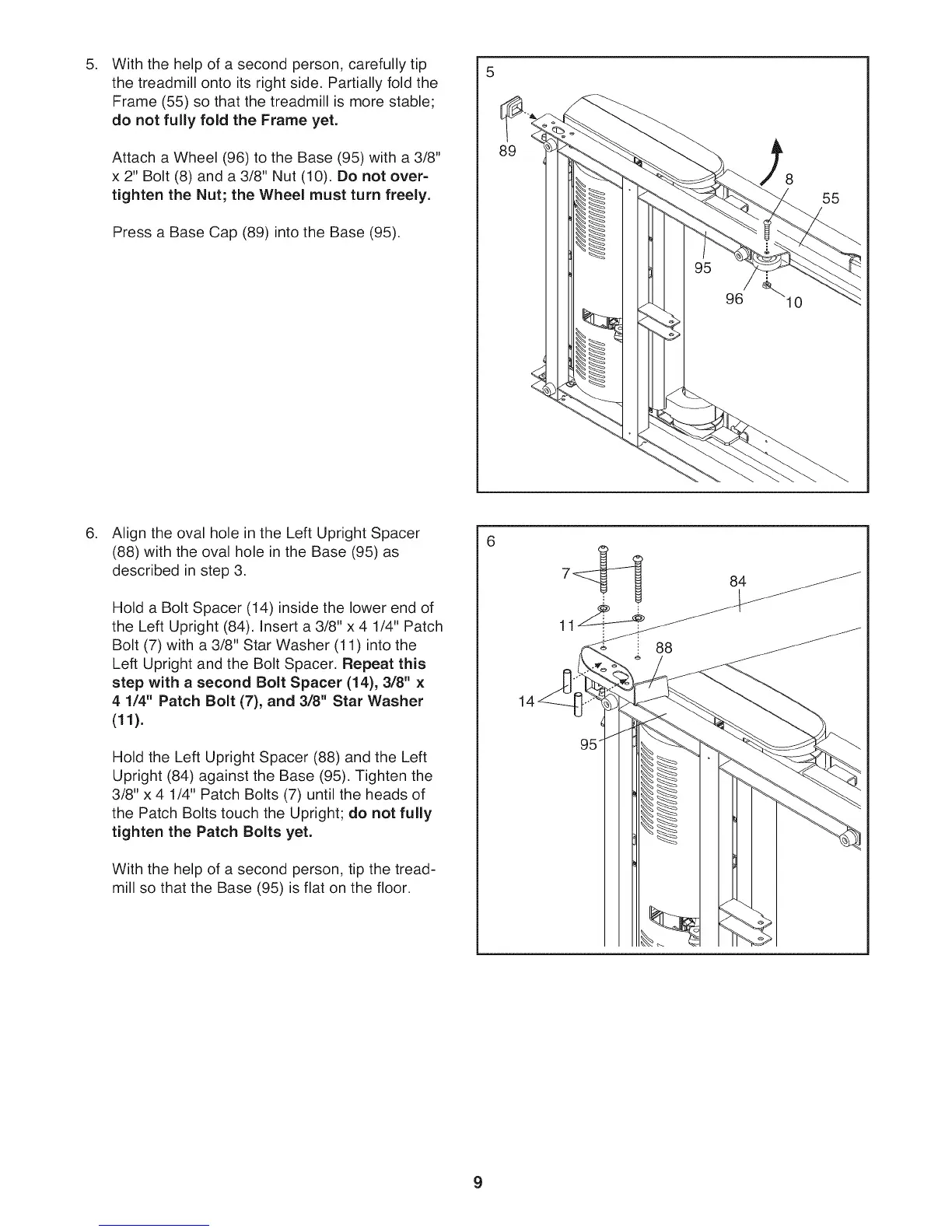

With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
5
89
95
96
.
Align the oval hole in the Left Upright Spacer
(88) with the oval hole in the Base (95) as
described in step 3.
Hold a Bolt Spacer (14) inside the lower end of
the Left Upright (84). Insert a 3/8" x 4 1/4" Patch
Bolt (7) with a 3/8" Star Washer (11) into the
Left Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (14), 3/8" x
4 1/4" Patch Bolt (7), and 3/8" Star Washer
(11).
Hold the Left Upright Spacer (88) and the Left
Upright (84) against the Base (95). Tighten the
3/8" x 4 1/4" Patch Bolts (7) until the heads of
the Patch Bolts touch the Upright; do not fully
tighten the Patch Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (95) is flat on the floor.
84
4
95"
9
