12

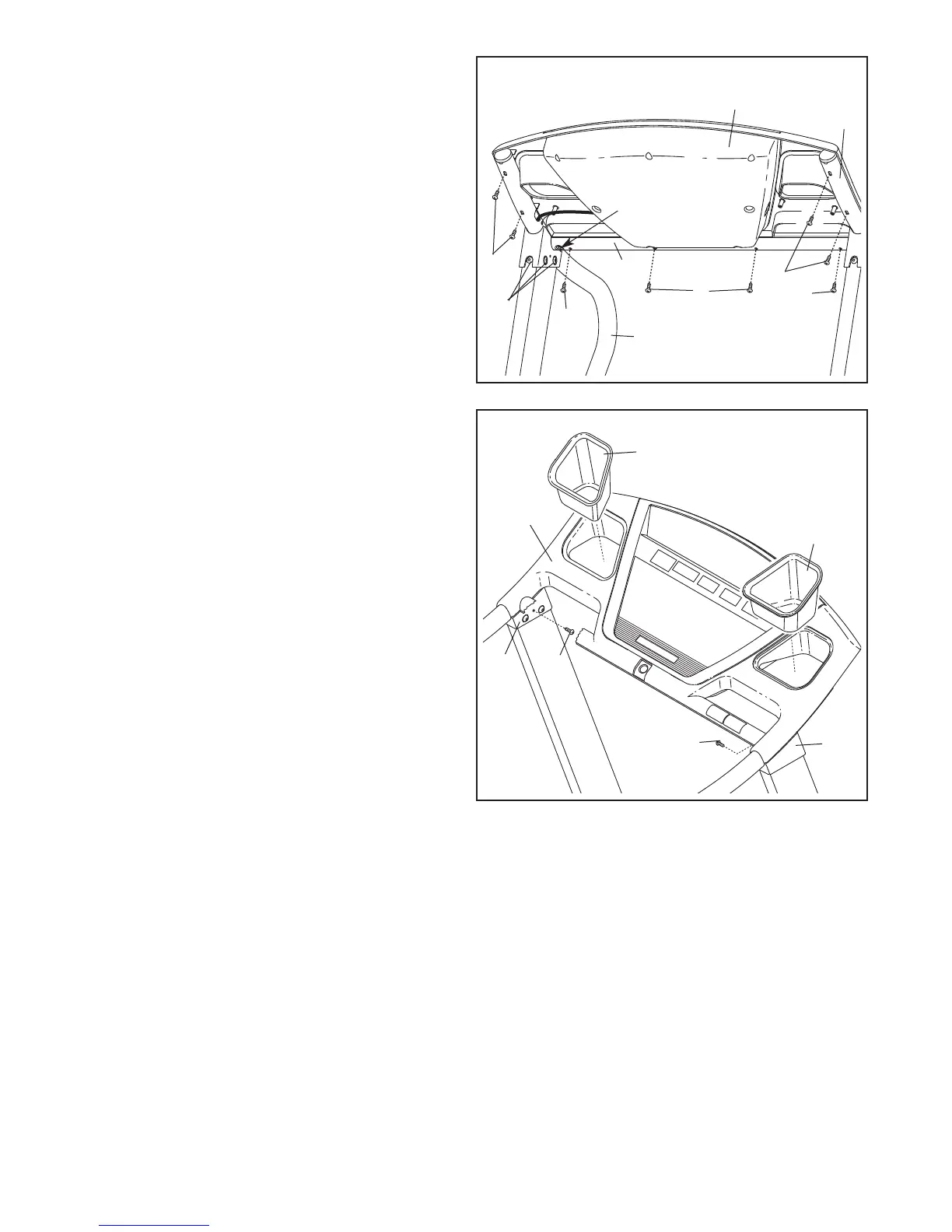

14. Attach the console assembly to the Left and
Right Handrails (107, 104) and the Crossbar
(106) with four #8 x 3/4" Screws (1) and four #8 x
1/2" Screws (2). Start all eight Screws before
t
ightening them.
Tighten the six 5/16" x 1" Bolts (6) (only three
are shown).
Tighten the two 1/4" x 3/4" Bolts (10) (only one
is shown).
See assembly steps 4 and 6. Firmly tighten the
four 3/8" x 4" Bolts (9).
2
104
107
Console
Assembly
1
4
1
2
2
1
6
10
15. If necessary, press the Left Tray (94) and the
Right Tray (103) into the Console Back (98).
Tighten #8 x 1/2" Screws (2) into the Left
Handrail Spacer (74) and the Right Handrail
Spacer (78).
94
103
78
74 2
98
2
15
106
