11

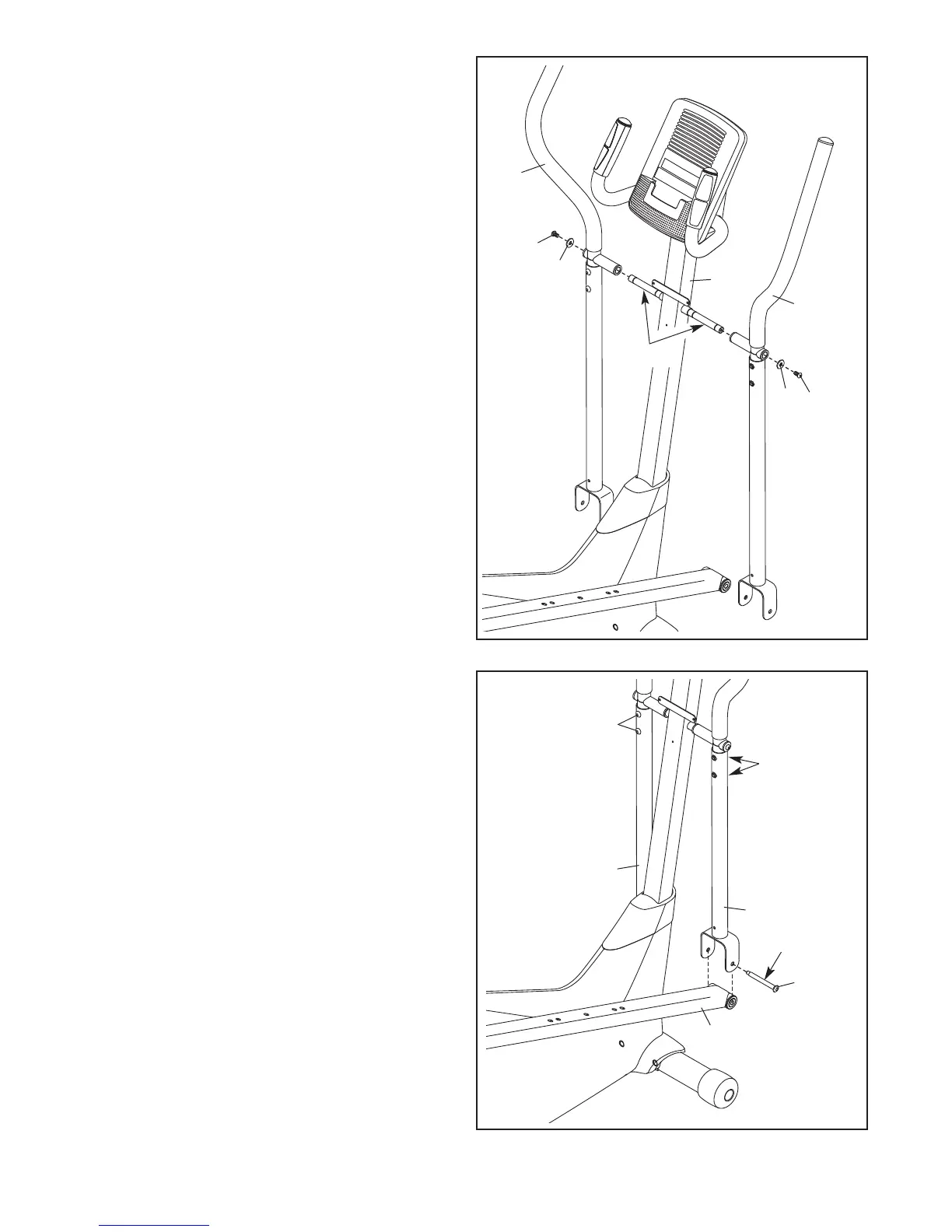

10. Apply a generous amount of the included
grease to the axles on the Upright (2).
O
rient the Left and Right Upper Body Arms (8,
9) as shown, and slide them onto the left and
r
ight sides of the Upright (2).
Attach each Upper Body Arm (8, 9) with an M8
x 20mm Patch Screw (80) and an M8 Washer
(33).
1
0
2
33
80
31
76
76
49
80
33
11
8
9
6
6
Grease
Grease
11. Apply a small amount of grease to a Shoulder
Patch Bolt (31).
While a second person holds the front end of
the Right Pedal Arm (49) inside the bracket on
the right Upper Body Leg (6), insert the
Shoulder Patch Bolt (31) through the right
Upper Body Leg and the Right Pedal Arm.
Tighten the Shoulder Patch Bolt (31) into the
welded nut on the right Upper Body Leg (6).
Repeat this step to attach the Left Pedal Arm
(not shown) to the left Upper Body Leg (6).
Tighten the M8 x 45mm Button Bolts (76).
