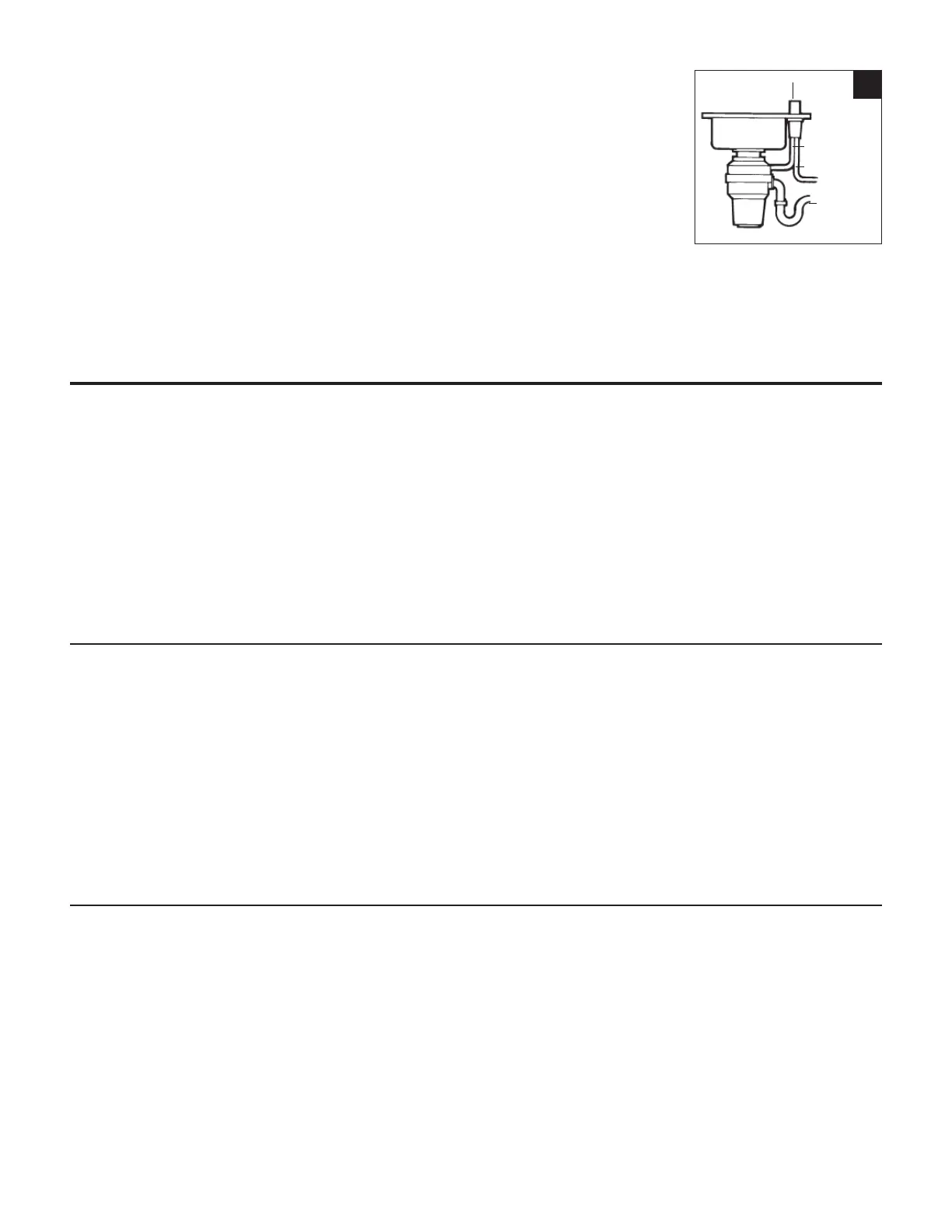

2. Connect dishwasher hose (5B) using a hose clamp. Make sure all
plumbing connections are tight and in accordance with all plumbing
codes and ordinances. Run water and check for leaks.
5B
*Air Gap
Rubber Hose
Dishwasher
Hose
Drain
Disposer
*Air gap may not be required
for all installations. Check local
plumbing codes.
ELECTRICAL CONNECTIONS
Connect the disposer to appropriate household current only.
The receptacle to which this appliance is connected must be controlled by a switch.
WARNING: Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether
the appliance is properly grounded. Do not modify the plug provided with the appliance if it will not
fit the outlet. Have a proper outlet installed by a qualified electrician.
GROUNDING INSTRUCTIONS
This disposer is equipped with a grounded plug-in power cord.
This appliance must be grounded. In the event of a malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This appliance is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances. If the supply cord is damaged it must be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
PERMANENT WIRE INSTALLATION INSTRUCTIONS
For waste disposers not equipped with a grounded plug-in power cord.
GROUNDING: This disposer must be connected to a grounded, metal, permanent wiring system;
or an equipment-grounding conductor must be run with the circuit conductors and connected to
the equipment-grounding terminal or lead on the disposer.
An acceptable motor control switch with a marked off position shall be provided at the time of
installation to disconnect the disposer from all ungrounded supply conductors. The switch shall be
mounted in sight of the disposer or in sight of the sink opening for the disposer.
