Project Source PSD-30 - Typical Installations

16
LEAKS: If the unit leaks at the top, it may be due to:
1. Improper seating of sink flange (gasket centering, putty or tightening).
2. Support ring not tightened properly.
3. Defective or improperly installed cushion mount.
If unit leaks at the waste elbow, leak may be due to improper tightening of elbow flange screws.

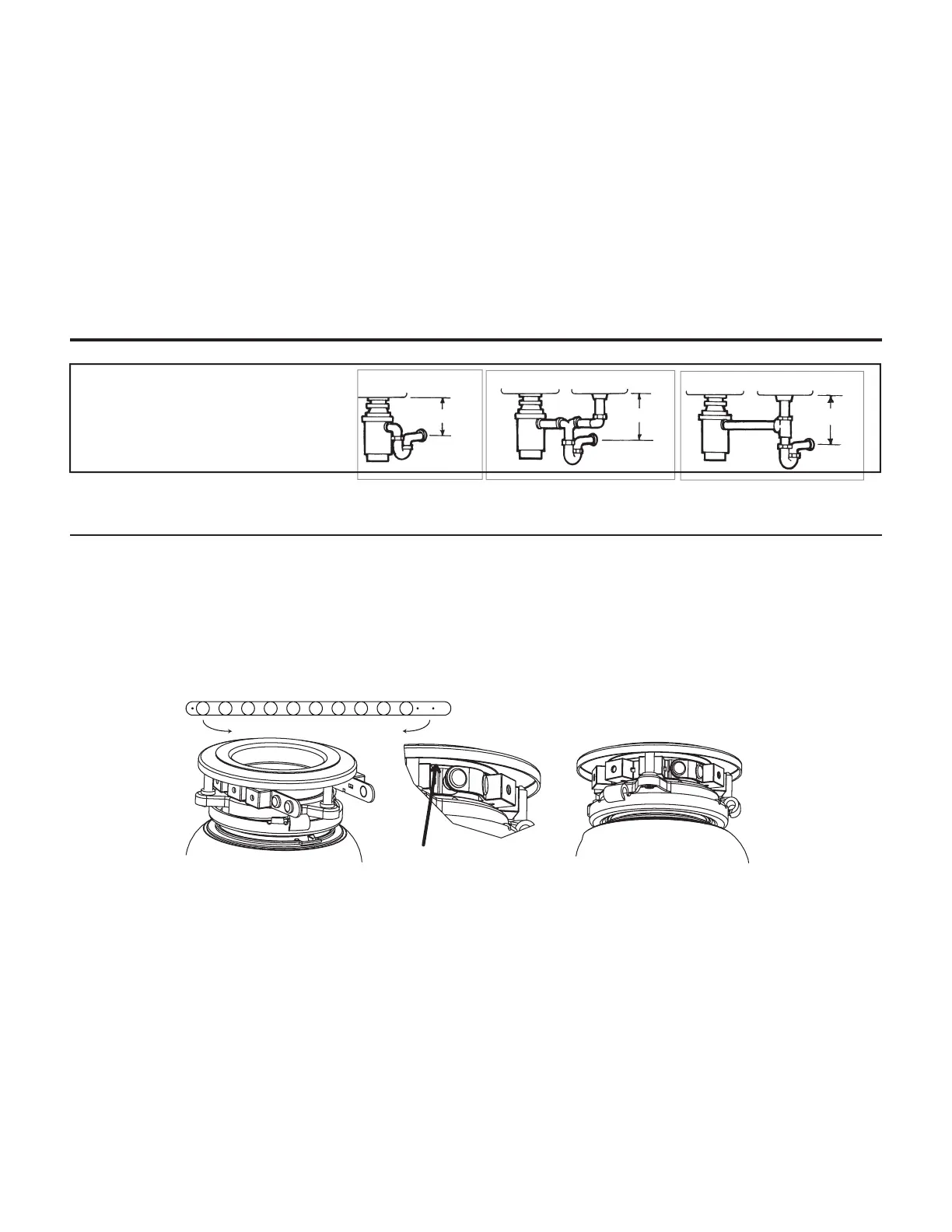

TYPICAL INSTALLATIONS
SINGLE BOWL
DOUBLE BOWL CENTER OUTLET
DOUBLE BOWL END OUTLET
*approx
*approx
*approx
*Approximate Dimension
PSD-30, PSD-50, PSD-70 10.2 in
PSD-90, PSD-125 10.6 in
PSD-90-SL, PSD-100-SL 10.5 in
WARNING: This is not a toy. Keep uninstalled Silver
Guard® away from children.
6A 6B
6C
ATTACHMENT INCLUDED WITH PSD-90 &
PSD-125 MODELS ONLY
MOUNTING THE SILVER GUARD
®
After the disposer is fully mounted to the sink, guide the Silver Guard
®
through the mount screws
(6A) with the flat portion of the black strap facing the metal sink flange. Place the Silver Guard
®
between the Support Flange and Upper Mount Ring. Please note (6B) that the Silver Guard
®
must
be placed under the flange of the Support Ring. Once the Silver Guard
®
is fitted, firmly press on
the snaps to secure the strap (6C).
