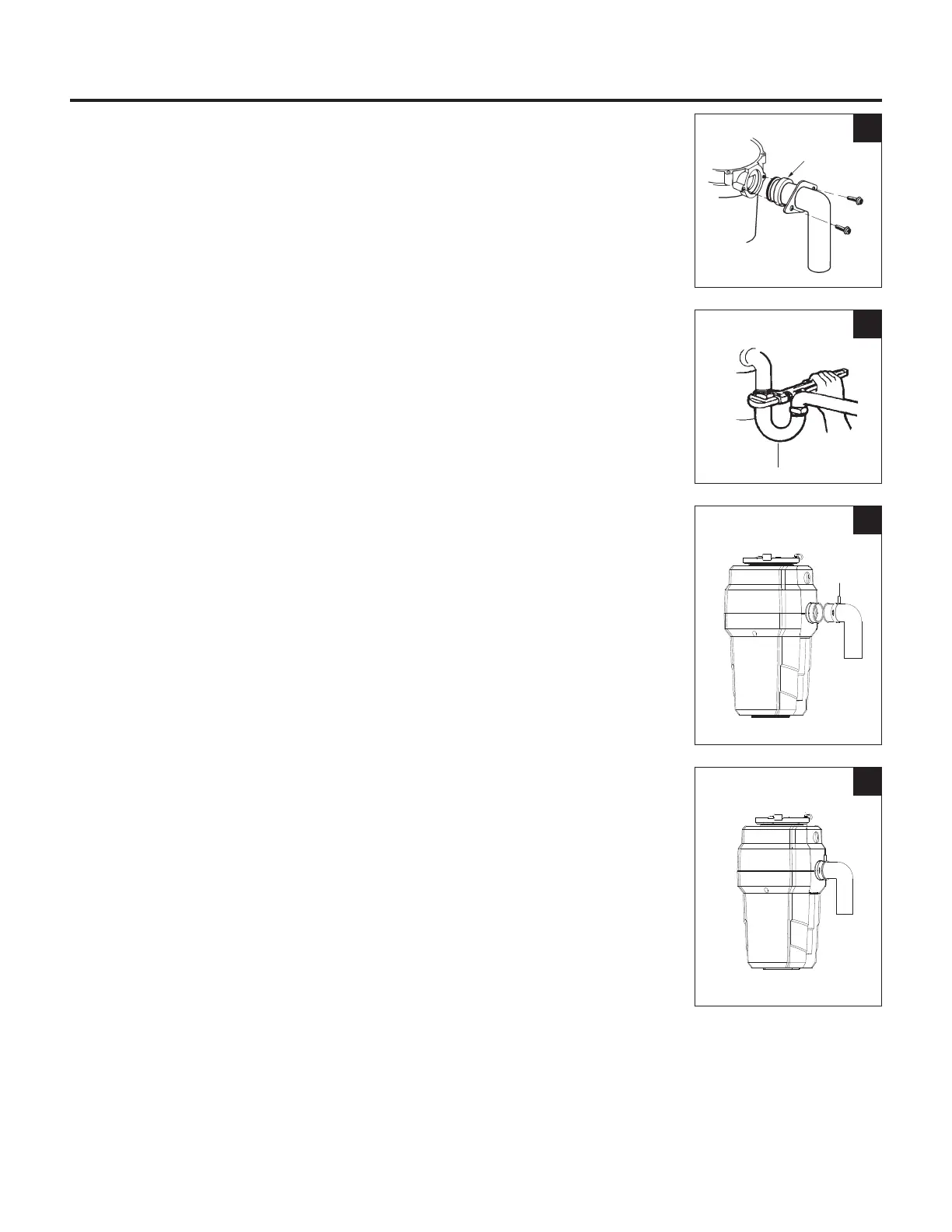

ATTACHING DISCHARGE ELBOW

Rubber

Gasket

P-Trap

Spring

Clamp

Ring

FOR MODELS PSD-30, PSD-50, PSD-90-SL, PSD-100-SL (A. & B.)

1. Connect the waste elbow to the disposer by sliding the flange

against the rubber gasket on the elbow and tightening the screws

into the disposer (see 3A). Then connect bottom of the elbow by

tightening the slip nut (see 3B). If using a straight pipe, it must have

a lip similar to the one on the elbow. Remove the gasket from the

elbow and install it on the straight pipe with the flat end of the gasket

facing toward the disposer discharge opening.

2. If you are connecting to a dishwasher, go to section 6B. If not, make

sure all plumbing connections are tight and in accordance with all

plumbing codes and ordinances. Run water and check for leaks.

FOR MODELS PSD-70, PSD-90 & PSD-125 (C. & D.)

3. Depress the wings on the spring clamp to remove it from the rubber

sleeve. Slip the spring clamp over the smooth side of the elbow

and slide it towards the lipped side of the elbow (see 3C). Insert

the waste elbow into the rubber sleeve so the elbow lip fits into the

groove located inside the rubber sleeve. Position the spring clamp

over the rubber sleeve and secure (see 3D). If using a straight pipe,

use one with a lip matching the lip on the elbow supplied with the

disposer.

4. If you are connecting to a dishwasher, go to section 6B. If not, make

sure all plumbing connections are tight and in accordance with all

plumbing codes and ordinances. Run water and check for leaks.
