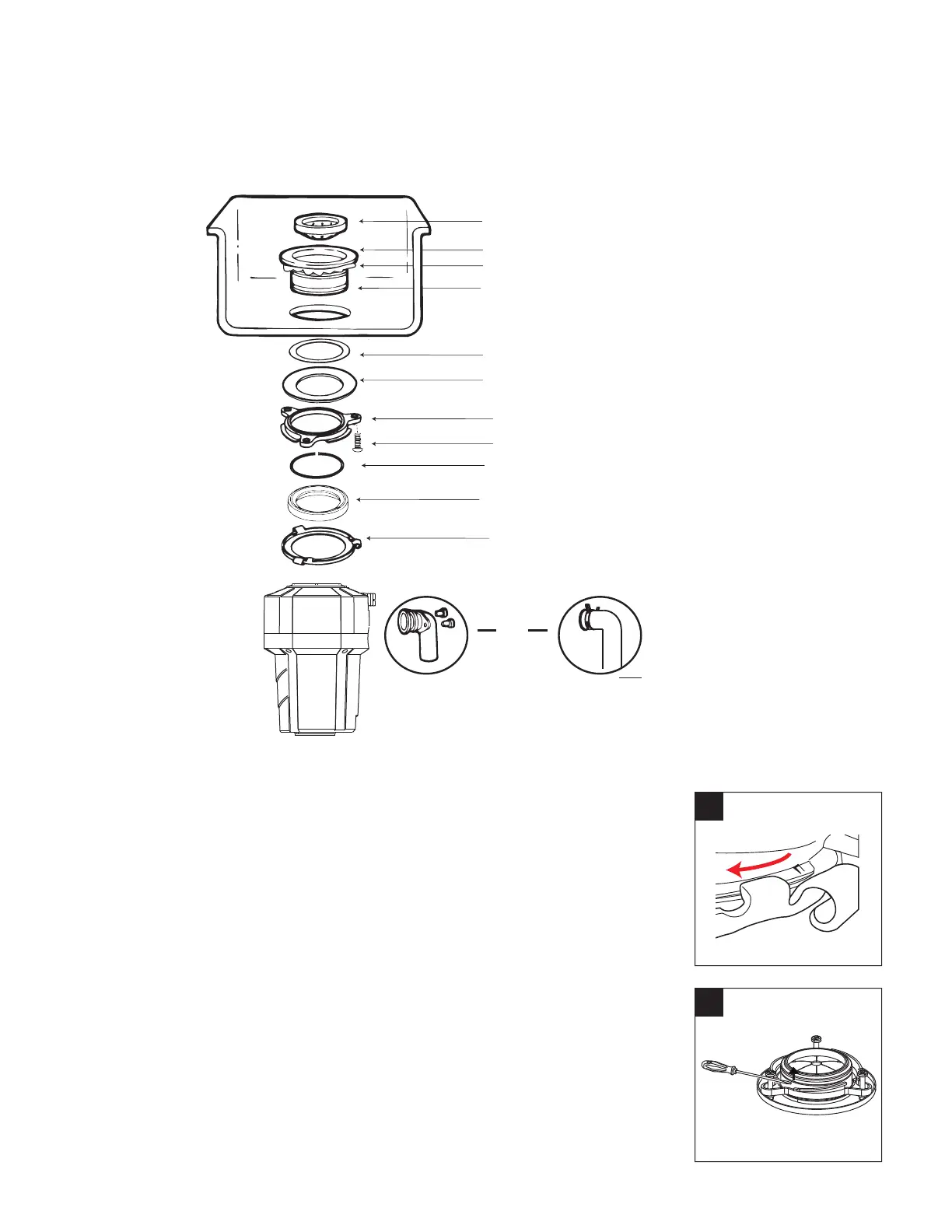

6
Removable Splash Guard
Sink Flange
Plumber’s Putty (not included)
Sink
Upper Mount Ring
Mounting Screw
Retainer Ring
Cushion Ring
Lower Mount Ring
Rubber Gasket
Fiber Gasket
Support Flange
Elbow Flange & Screw Set (2)
Elbow
Spring Clamp Ring
Elbow
Groove
OR
PSD-70, PSD-90
& PSD-125
MODELS ONLY
1. The Cushion Ring and the Lower Mount Ring will remain attached
to the disposer during installation. Take apart the other parts of the
mounting assembly by rotating the Lower Mount Ring (J on page 3)
clockwise until the Lower Mount Ring Tabs slide off from the Upper
Mount Ring ramp (2A). This allows you to pull the Sink Flange up
and out of the remaining Lower Mount Assembly. Note the order of
these parts as they are arranged in the required order. Unscrew the
3 Mount Screws until the Upper Mount Ring can be moved to the top
of the Support Flange. Remove the Retainer Ring with a flat head
screw driver (2B).
A1
A2
2A
2B
NOTE: Cushion Ring included between the Upper Mount Ring and Lower Mounting Ring.
* Part not disengaged during disposer installation.
A
B
F
E
J
D
C
I
G
H
Plumber's putty (not included)
