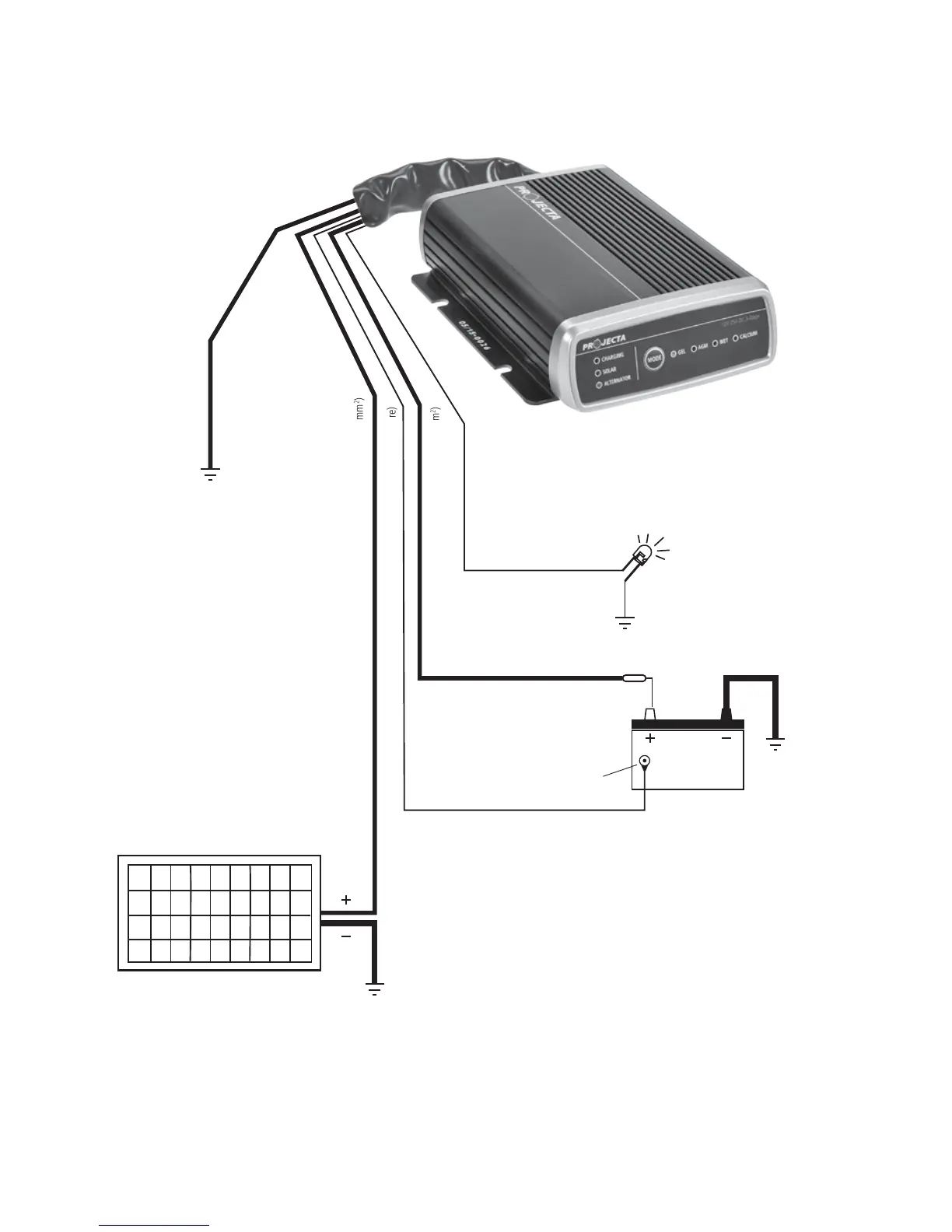

3. Solar Battery Input Only
12V Solar Panel
LED Panel
Mount Indicator
Earth/Chassis
Ground/Chassis – Black (8mm
2
)
External LED – Pink (1.5mm
2
)
Solar – Green (8mm
2
)
Output/Auxiliary Battery – Grey (8mm
2
)
Temperature Sensing – Black (twin core)
Temp Sensor mount
to battery casing
Earth/Chassis
Earth/Chassis
Fuse
Battery 2
(Aux Battery)
* Optional
*
*
