9

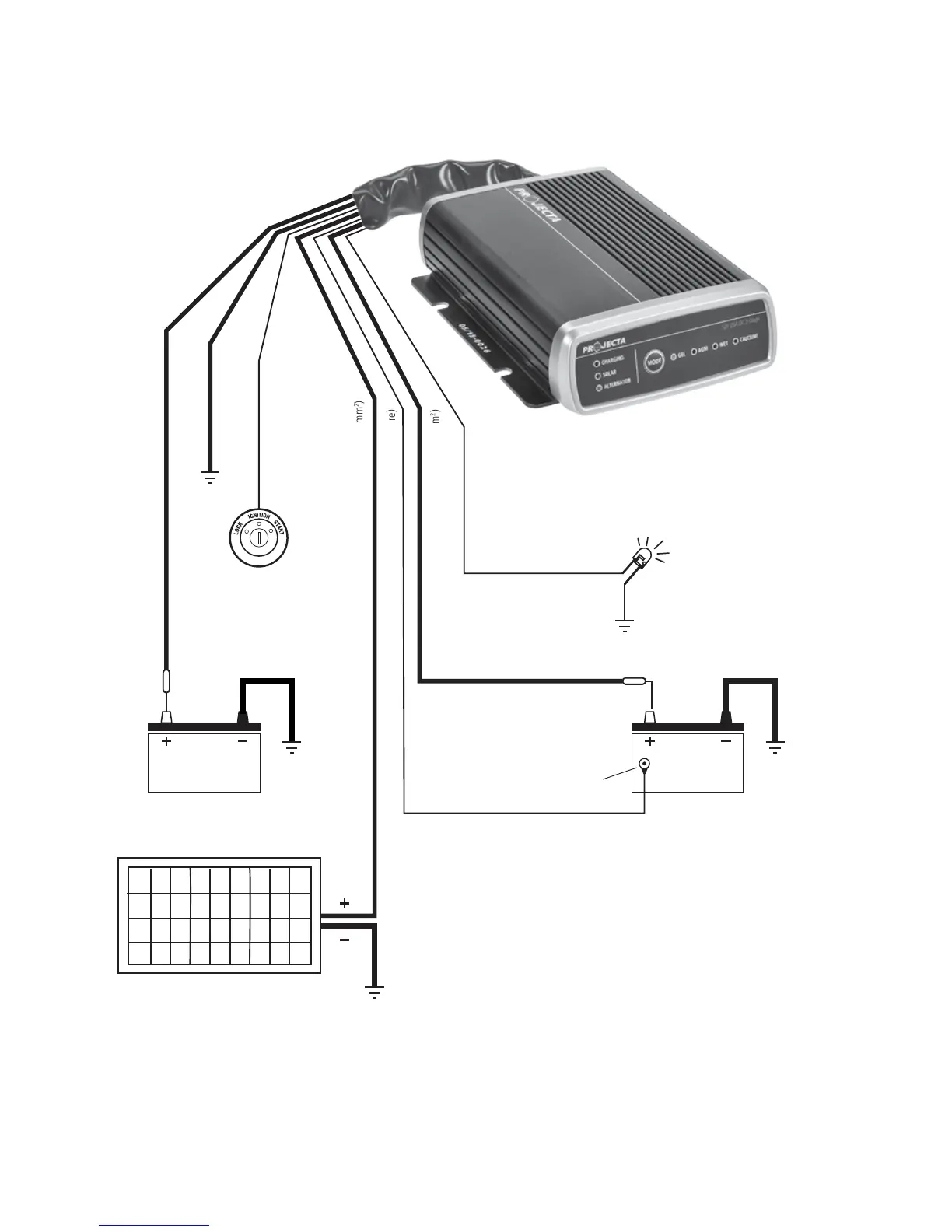

TYPICAL WIRING INSTALLATION
1. Full System
12V Solar Panel
* Optional
*
*
*
For vehicles fitted with
a Smart Alternator only
LED Panel
Mount Indicator
Earth/Chassis
Alternator/Starter Battery – Red (8mm
2
)
Ground/Chassis – Black (8mm
2
)
Ignition override – Blue (1.5mm
2
)
External LED – Pink (1.5mm
2
)
Solar – Green (8mm
2
)
Output/Auxiliary Battery – Grey (8mm
2
)
Temperature Sensing – Black (twin core)
Temp Sensor mount
to battery casing
connects to ignition feed if smart alt.
Earth/Chassis
Earth/ChassisGround/Chassis
Fuse
Fuse
Battery 2
(Aux Battery)
Battery 1
(Starter Battery)
