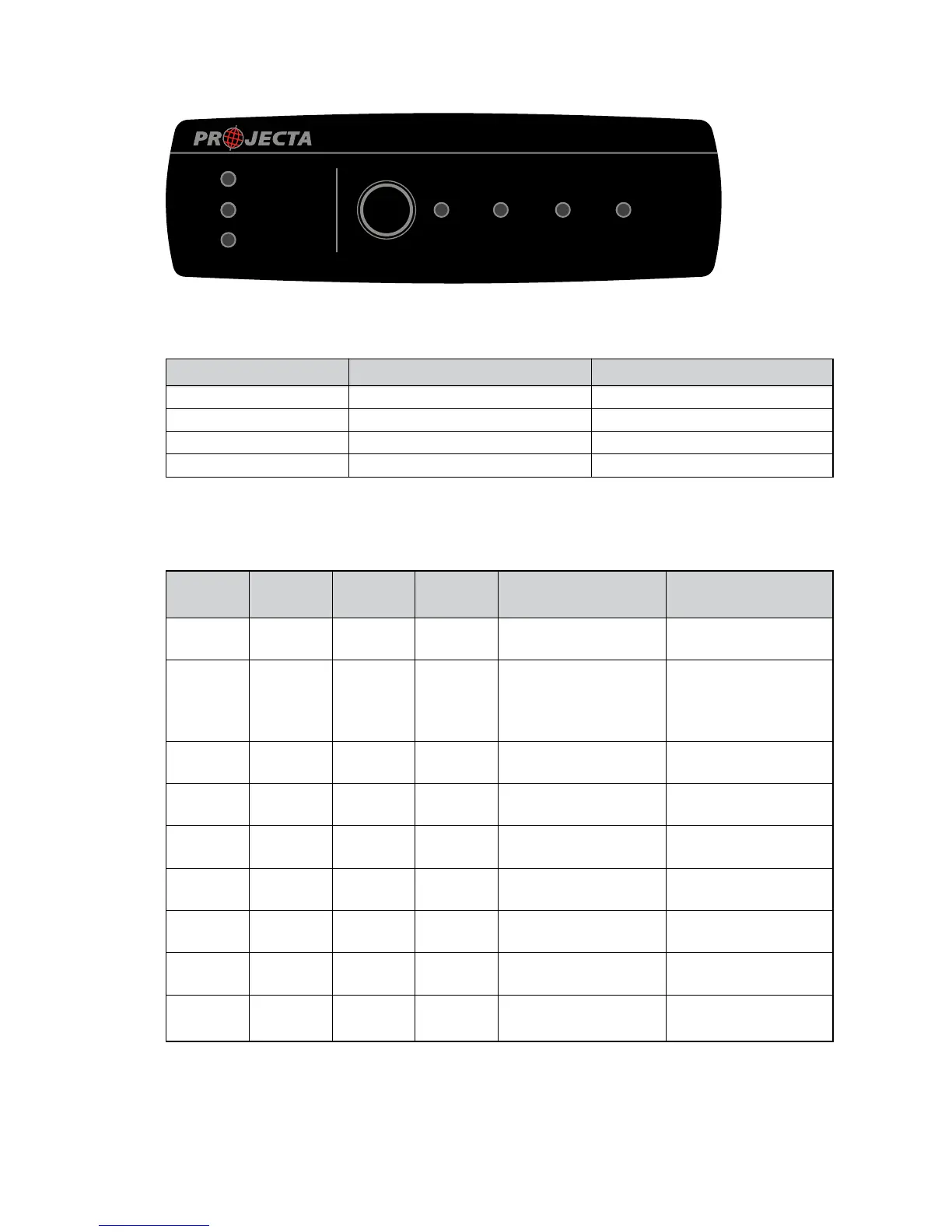

HOW TO READ LED DISPLAY
LED Charge Indicators
Fault LED Indicators
Charging LED Battery Type LED Charging Stage
GREEN Flashing Solid BLUE Bulk Charge
GREEN Flashing BLUE Flashing Adsorption Charge
Solid GREEN BLUE Flashing Equalization Charge
Solid GREEN Solid BLUE Float Charge
Charging Solar Alterator Battery Fault Remedy
LED LED LED Type LED
Solid RED The unit is faulty Check if there is any output
current from the unit
Amber Bulking charging time out Auxiliary battery may be
Flashing faulty or heavy load is
connected to the battery
for long time
Solid RED BLUE Output battery is reversely Check output cable
Flashing Connected connection
RED BLUE Overvoltage is detected Check auxiliary battery
Flashing Flashing at output voltage
Solid AMBER BLUE Output open circuit or Check auxiliary battery
Flashing dead Battery voltage & cable connections
Solid RED Solar Input is reversly Check Solar input
connected connection
RED Overvoltage is detected at Check solar panel open
Flashing Solar Input circuit voltage
Solid RED Alternator Input is Check Alternator input
reversly connected connection
RED Overvoltage is detected at Check vehicle battery
Flashing Alterantor voltage
GEL AGM WET CALCIUM
MODE
12V 25A DC 3-Stage
ALTERNATOR
CHARGING
SOLAR
12
