ProLights EclProfile CT+ - 6 Product Overview

PROLIGHTS - EclProfile CT+
09
9
8
6
3
3
4
4
2
3
7
1
8
1110
12
13
14
5

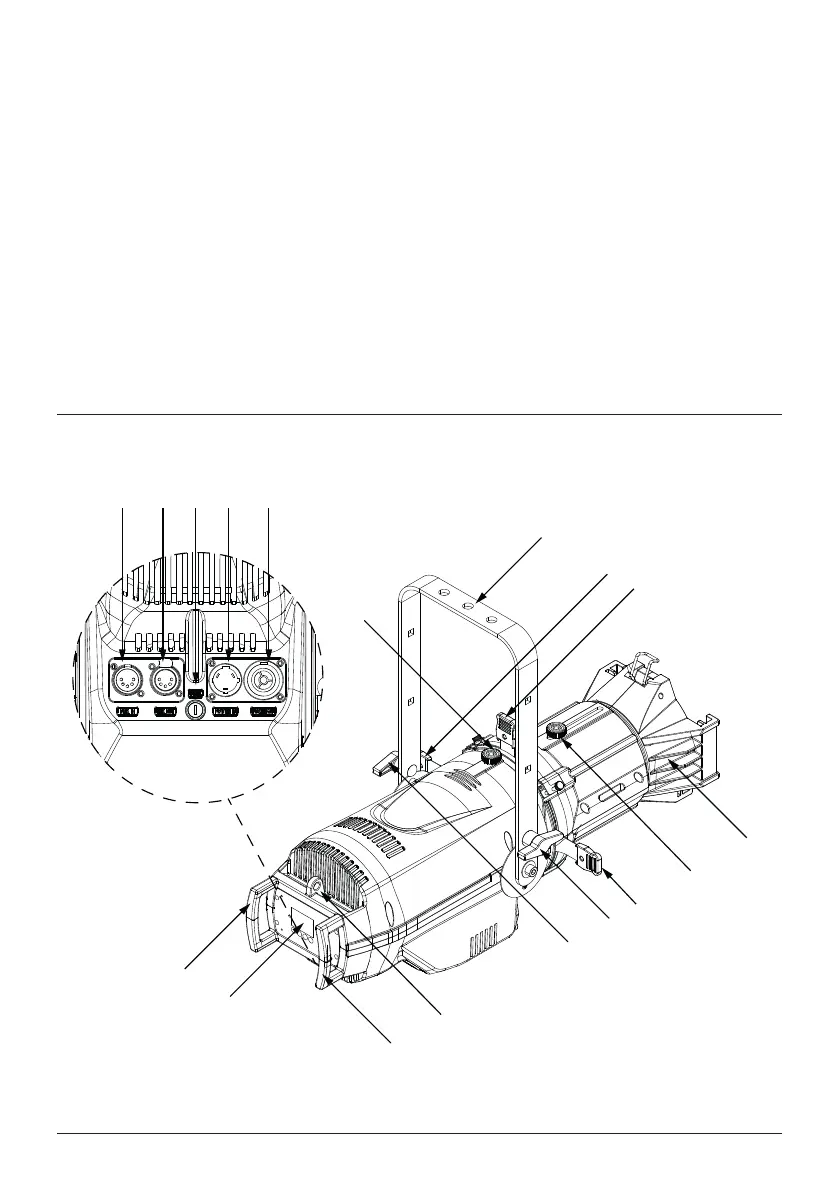

6 - PRODUCT OVERVIEW
1. OPTIC (optional accessory);
2. KNOB for focus;
3. BLADES for FRAMING SYSTEM;
4. KNOB for bracket;
5. KNOB for locking the middle part;
6. BRACKET;
7. SAFETY EYE to attach safety cable;
8. HANDLE;
9. USER INTERFACE with display and buttons for access to the control panel functions.
10. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C;
11. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C;
12. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T5A, 250 V););
13. POWER IN: for connection to the Mains 100-240V~/50-60Hz;
14. POWER OUT: power output for connection of multiple units in series.
Fig.3
