PROLIGHTS - EclProfile CT+
30
SOFT FOCUS DIFFUSION (CODE ECLPRSMOOTHF1)
ECL Proles Soft Focus Diffusion kit is available as optional accessory.

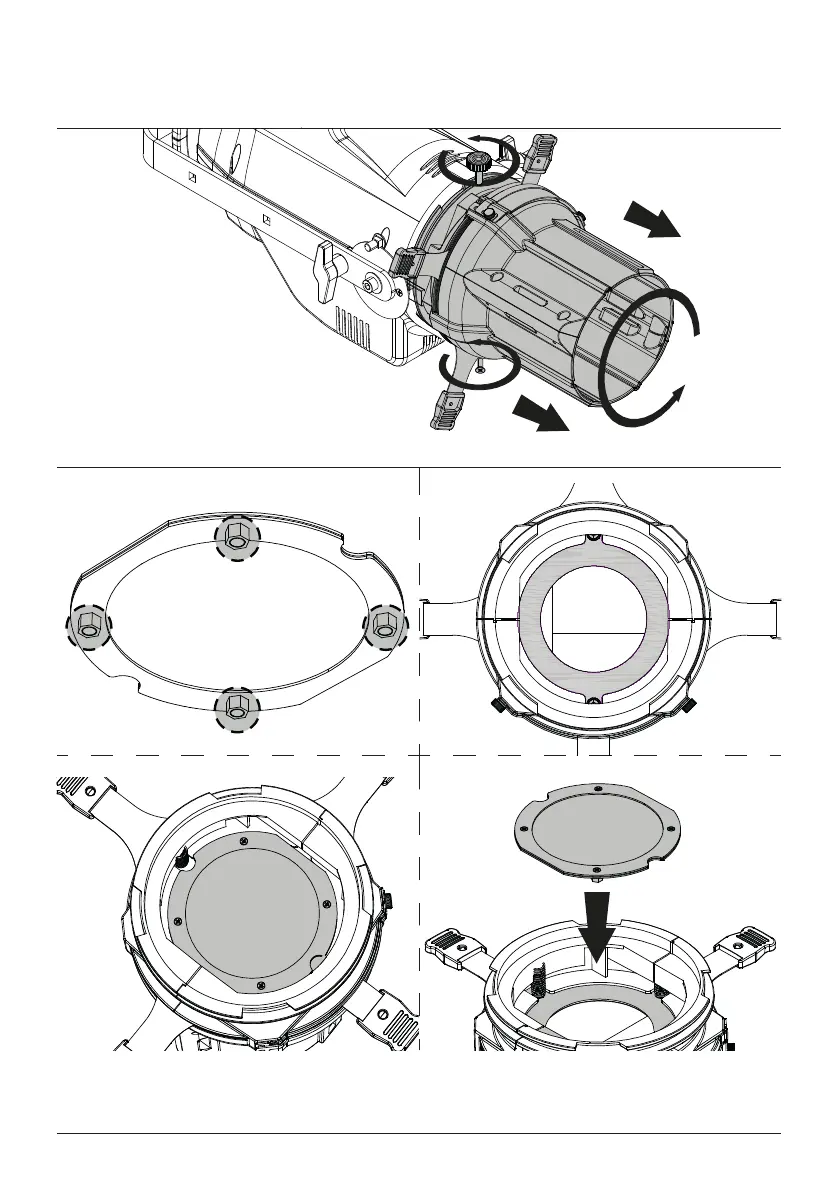

1. Loosen the marked knob and screw. Then rotate the middle part and remove it.
1 2
3 3
2. Insert the soft focus diffusion kit by placing the magnets (1) on the back of the framing system (2)
of the middle part.
NOTE: To remove the accessory, reverse the procedure.
Fig.14
