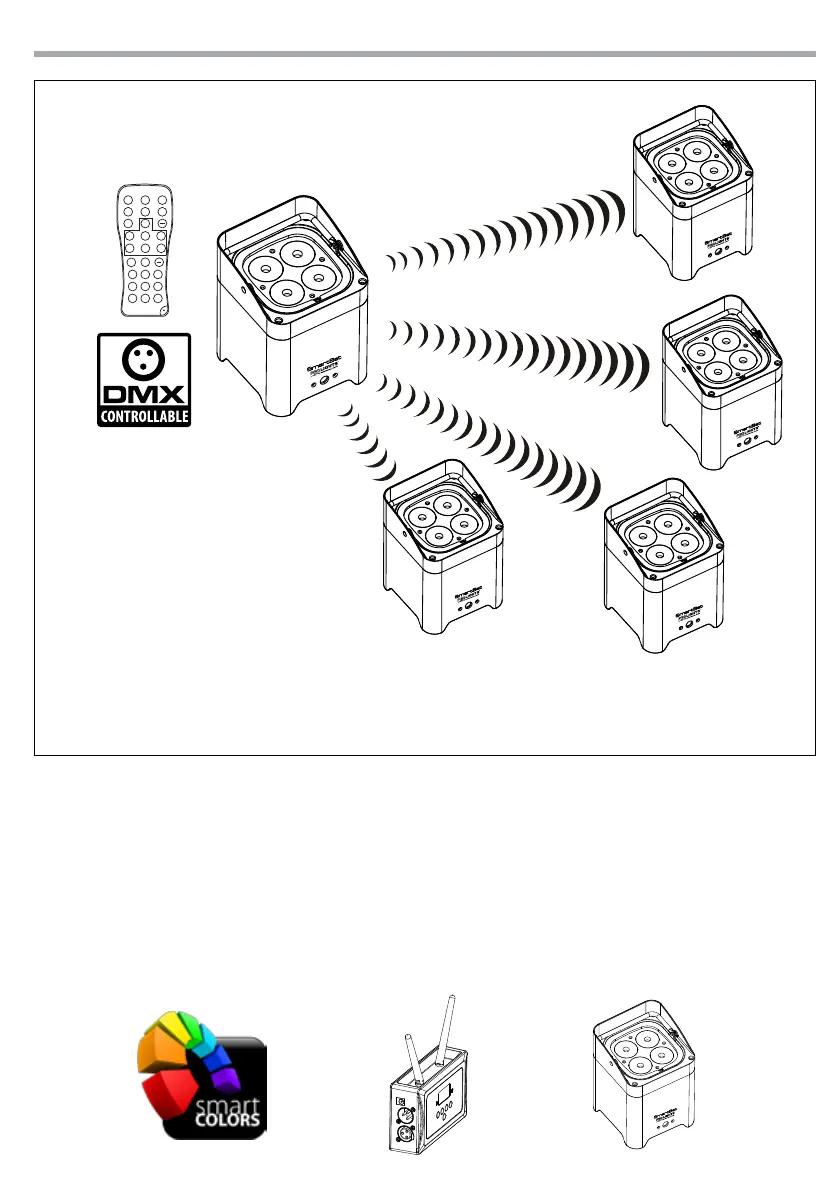

Fig.8 - Conguration Master/Slave mode
SLAVE
SLAVE
SLAVE
SLAVE
MASTER
IRC REMOTE
BLACK
OUT
AUTO
STROBE SPEED
SOUND
SENSI-
TIVITY
%
MANUAL
FADE
SNAP
R
G B
+
0
1
2
3
4
5
6
7 8 9
A
UV W
SMARTBAT (MASTER): SIGNAL INPUT
1) DMX (with a DMX Controller)
2) Control panel on device
3) IR remote controller
SMARTBAT (MASTER):
TRANSMITTER MODE
(type of channel for data wireless
communication)
1) Manual Channel --> dtCH
2) Auto Channel --> dtAU
SMARTBAT (SLAVE): RECEIVER MODE
1) drCH --> MASTER UNIT sets on Manual Channel
2) drAU --> MASTER UNIT sets on Auto Channel
Note: To work in the right way, all SMARTBAT must be congured with the same DMX address/mode.
3.14 OPERATION WITH APP “SMARTCOLORS”
Important: WIFIBOX hardware is required to use this app.
WIFIBOX is a new-generation light control system, conceived to obtain an easy and versatile platform for
LED projectors. The signal transmission is managed wired and wireless (through Wi-Fi), both in input and
output, even allowing to control the xtures through a smartphones applications “Smarcolors”, available
for IOS and Android devices. Before using the application, check that all devices are properly congured
with WIFIBOX. For device’s conguration refer to the WIFIBOX manual available on “www.musiclights.it”.
