PROLiNK MASTER II Series User Guide

5

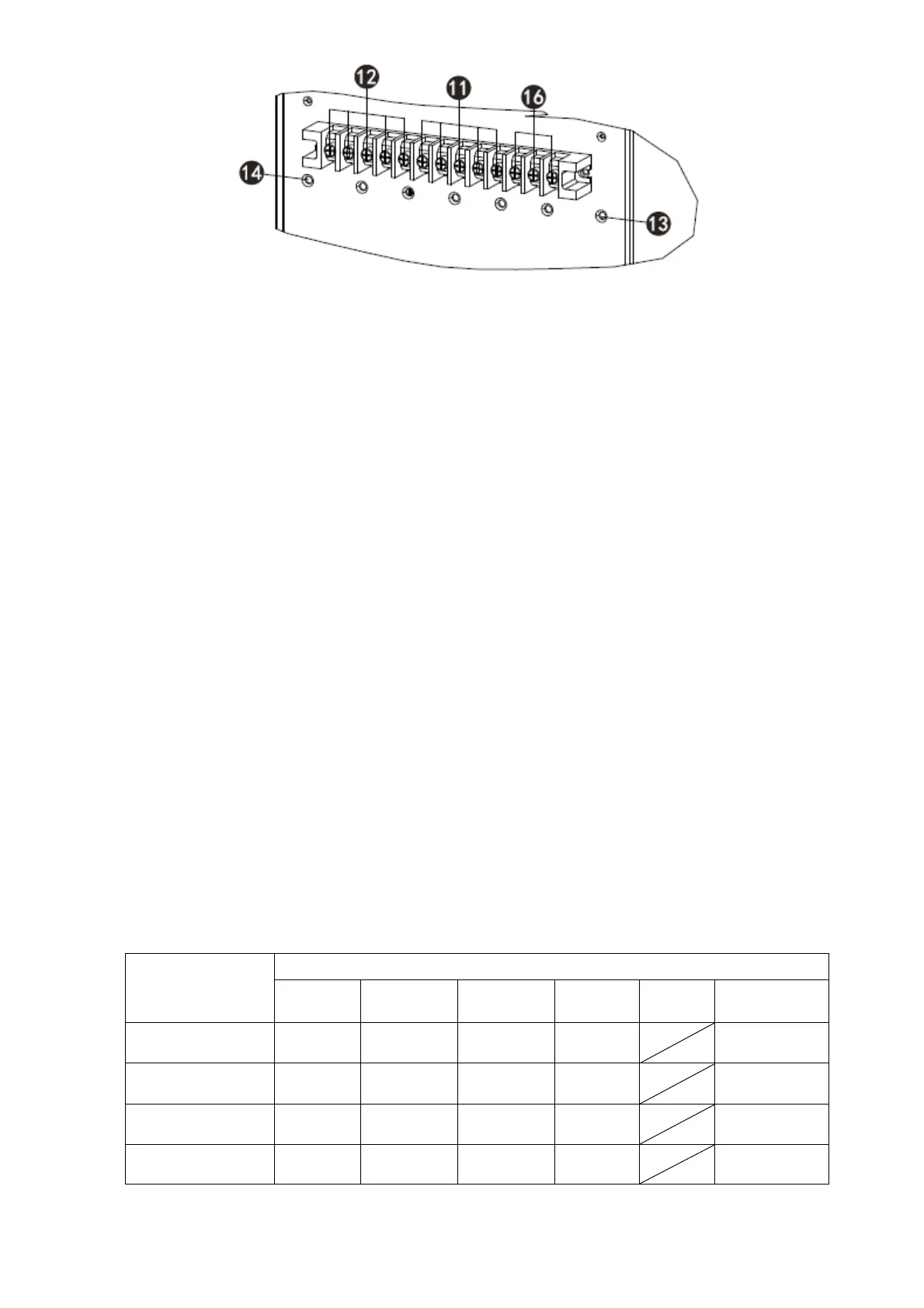

Diagram 2: INSPIRE 83310-QS & INSPIRE 83320-QS
Input/Output Terminal
1. RS-232 communication port
2. USB communication port
3. Emergency off function connector (EPO connector)
4. Share current port
5. Parallel port
6. Smart slot
7. External battery connectors/terminals
8. Line input switch/circuit breaker
9. Maintenance bypass switch
10. Input/Output Terminal
11. Channel input terminal
12. Output terminal
13. Insert the earthing terminal
14. Output earthing terminal
15. Skip the input circuit breaker/switch
16. Skip the input terminal
17. Output switch
18. Dry contact communication port (optional)
2-3. Single UPS mounting
Installation and wiring must be done in accordance with local electrical laws and regulations by trained
professionals.
1) Ensure that electrical wiring and building breakers are in line with the capacity of the UPS to prevent
electric shock or fire risk.
NOTE: Do not use a wall outlet as an input power source for the UPS, as the current value is less than the
maximum input current of the UPS. The container can be damaged and destroyed.
2) Turn off electrical switches in the building before installation.
3) Turn off all connected devices before connecting to the UPS.
4) Prepare the cable based on the following table:
Type
Wiring specification (AWG)
Input
( Ph)
Skip ( Ph)
Output
( Ph)
Neutral
Battery
Soil
INSPIRE 83310-QS
Configuration 3/3
14
14
14
10
8
INSPIRE 83310-QS
3/1 configuration
14
8
8
8
8
INSPIRE 83320-QS
Configuration 3/3
10
10
10
6
6
INSPIRE 83320-QS
3/1 configuration
10
4
4
4
4
NOTE:
The selection of cable color must be followed by local electrical laws and regulations.
