PRC2402M User Manual v1.1
Page 5 / 49

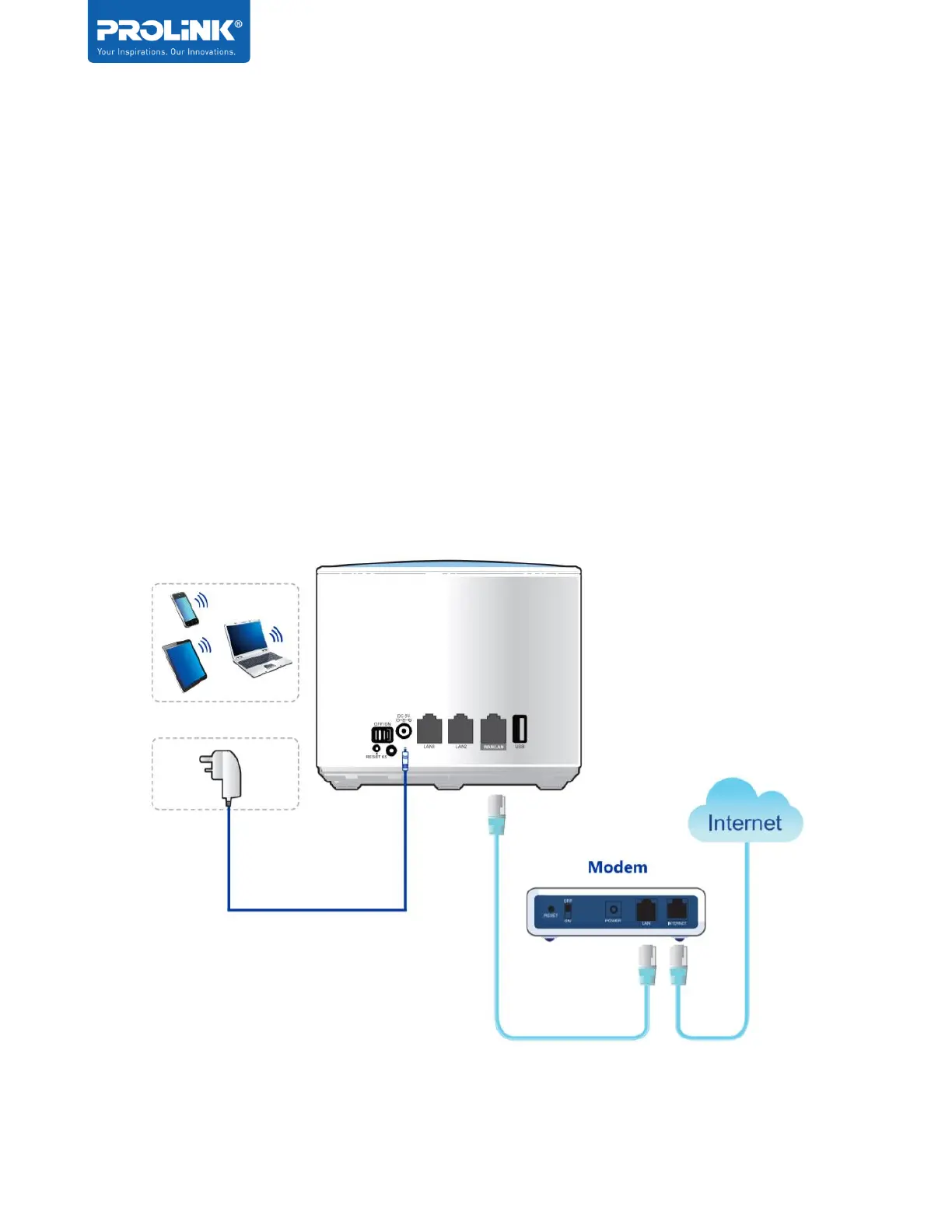

Physical Connectivity Setup - PRC2402M as Router or Access
Point (AP) Mode
Step 1. Identify the master Mesh Router (Blue Unit) to be connected to the existing Internet
Service
Step 2. Power off all existing Internet source from your equipment / modem / router provided
by your ISP (Internet Service Provider)
Step 3. Use the provided LAN cable to connect your Internet source equipment/modem’s LAN
port to the Mesh Router’s WAN port (WAN/LAN port)
Step 4. Power on the existing Internet source equipment/modem/router provided by the ISP
Step 5. Connect a LAN cable from PC/laptop to the Mesh Router’s LAN port
Step 6. Finally, power on your Mesh router with the provided power adapter (DC 5V 3A)
