SECTION 6—ARMS
Part No. 1139640 37 Pronto® M61™with SureStep®
Adjusting the Arms
Adjusting Width
NOTE: For this procedure, refer to FIGURE 6.2.
1. Loosen the two lock knobs that secure the arms to the arm support tube.
NOTE: Both arms should be adjusted to the same distance away from the arm support tube.
NOTE: Changing the width of the arms may also affect the overall width of the wheelchair.
2. Reposition the arms until desired width is achieved.
3. Securely tighten the two lock knobs that secure the arms to the arm support tube.

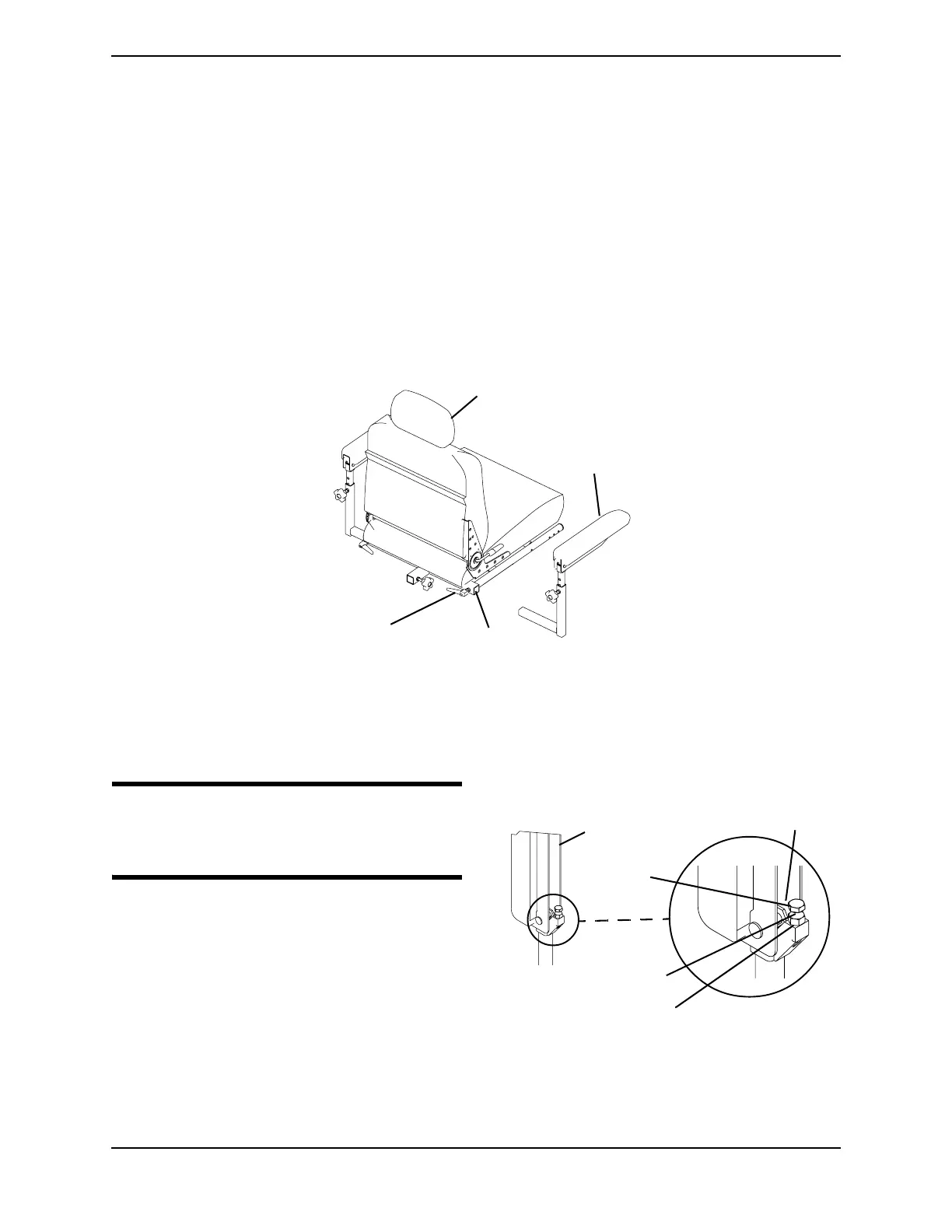

FIGURE 6.2 Adjusting Width
Adjusting Angle
WARNING
Pinch point may occur when adjusting
the arm angle position.
NOTE: For this procedure, refer to
FIGURE 6.3.
1. Lift up the arm pad.
2. Loosen the jam nut.
3. Adjust the socket screw up or down to
the desired arm angle position.
FIGURE 6.3 Adjusting Angle
4. Tighten the jam nut.
5. To determine the same angle for the opposite arm pad, count the exposed threads after
the jam nut has been tightened.
Arm Pad
Lock
Knob
Arm Support
Tube
Seat
Arm Pad
Adjustment
Screw
Jam Nut
Count Exposed Thread
Pinch Point
