Pronto M61 - Adjusting Calf Plate Height

SECTION 9—FRONT RIGGINGS
Part No. 1139640 57 Pronto® M61™with SureStep®

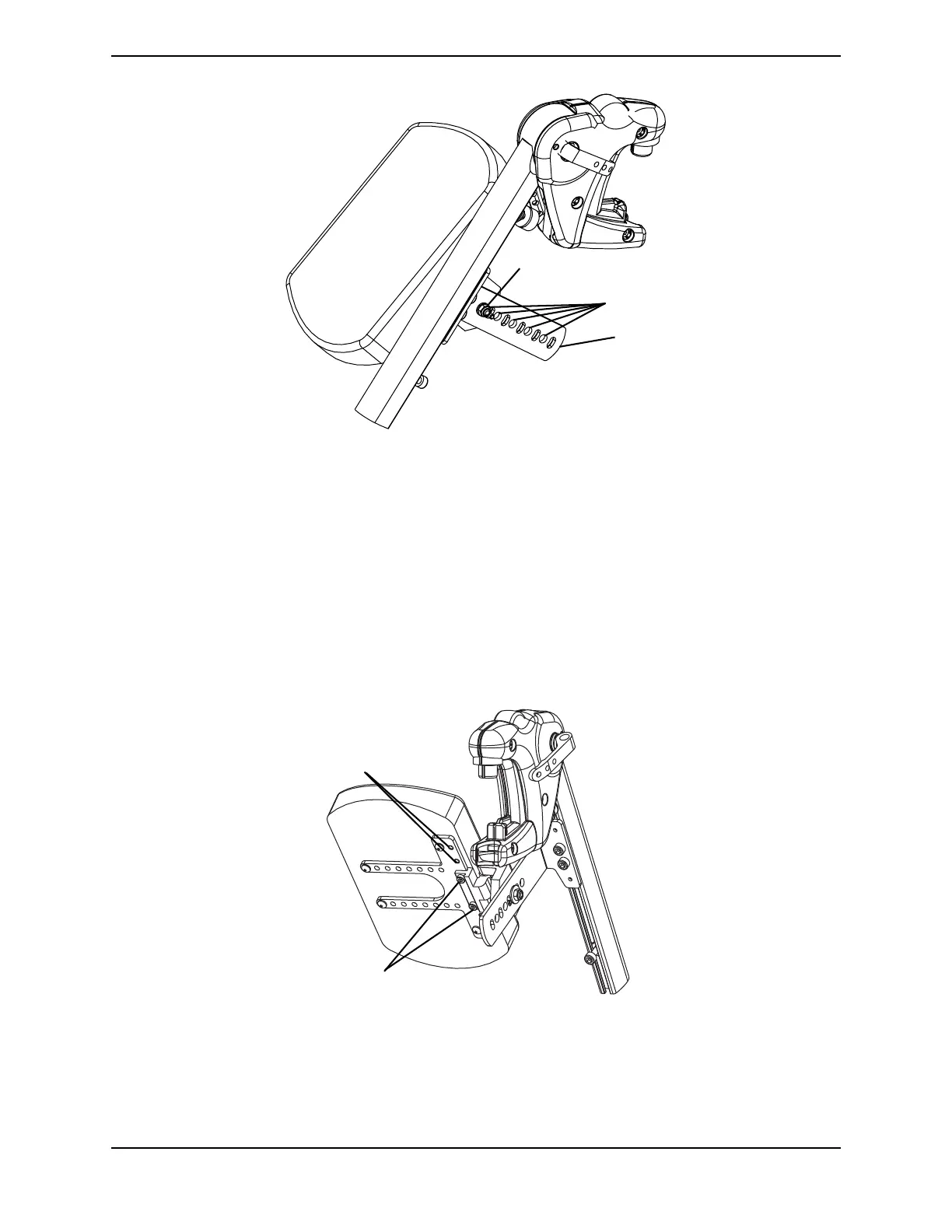

FIGURE 9.6 Adjusting Calf Plate Depth
Adjusting Calf Plate Height
NOTE: For this procedure, refer to FIGURE 9.7.
NOTE: This procedure requires a 1 x 4 mm Allen wrench.
1. Use the Allen wrench to loosen the two mounting screws.
2. Adjust to the desired position.
3. Re-tighten the mounting screws.
FIGURE 9.7 Adjusting Calf Plate Height
Locknut
Depth Setting Positions
Holding Plate
Mounting
Screws
Height
Adjustment
Positions
