SECTION 8—FOOTBOARD ASSEMBLY
Pronto® M61™with SureStep® 50 Part No. 1139640
Depth
NOTE: For this procedure, refer to FIGURE 8.3.
1. Remove the quick release pin that secures the footboard assembly to the wheelchair
frame.
WARNING
Make sure the detent balls of the quick-release pin are fully released and beyond the
outer edge of the tube before operating the wheelchair. Otherwise, injury and/or
damage may result.
Keep detent balls clean.
2. Adjust footboard to one of three mounting positions.
3. Install the quick release pin. Make sure the detent balls of the quick-release pin are
fully released and beyond the outer edge of the tube (Detail “A”).

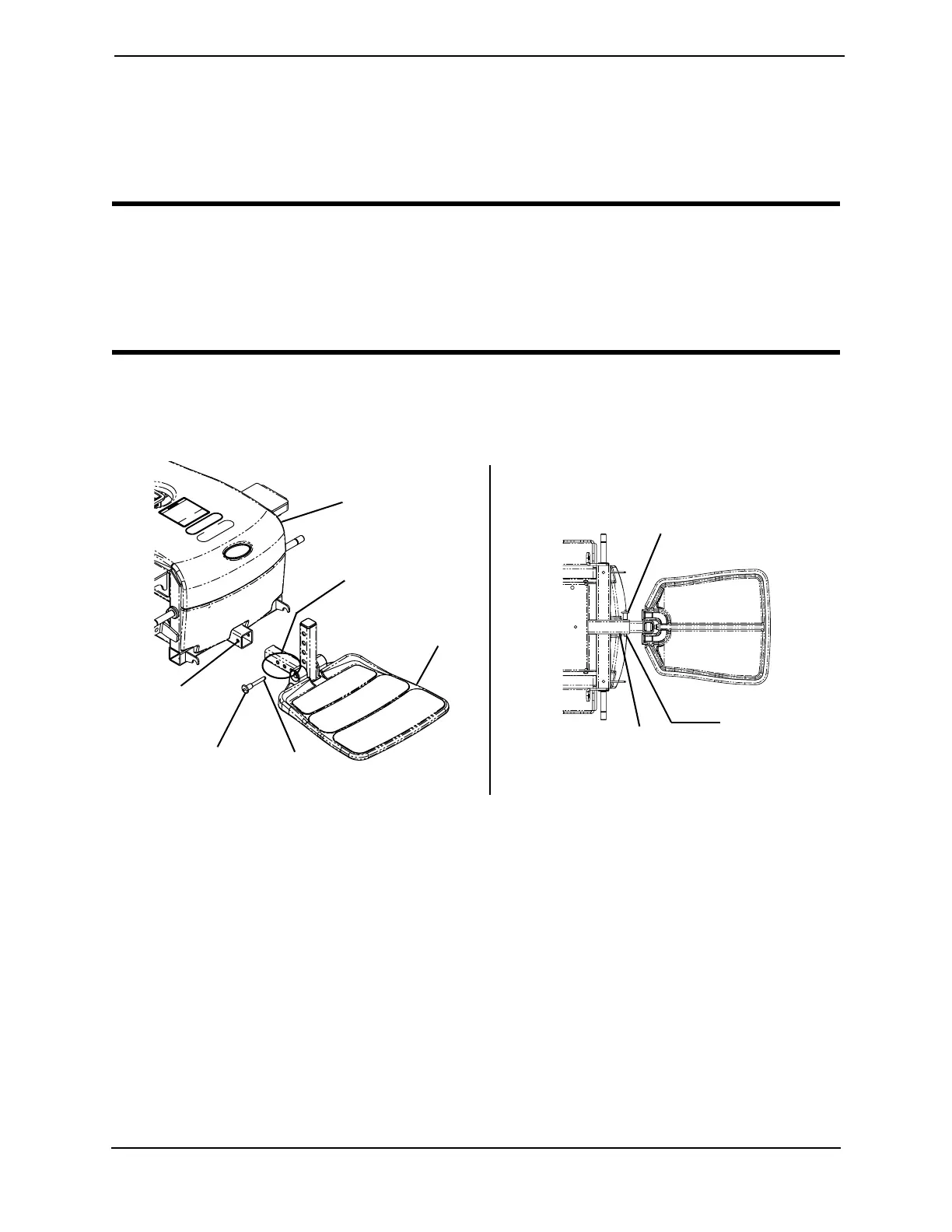

FIGURE 8.3 Adjusting the Footboard Assembly - Depth
DETAIL “A” - BOTTOM VIEW OF
FOOTBOARD
Quick
Release Pin
Detent
Ball
Footboard
Assembly
Mounting
Hole
Top Shroud
Quick Release Pin
Outer Edge
of Tube
Detent Balls
Three Depth
Adjustment Holes
