SECTION 7—SEAT
Part No. 1139640 43 Pronto® M61™with SureStep®

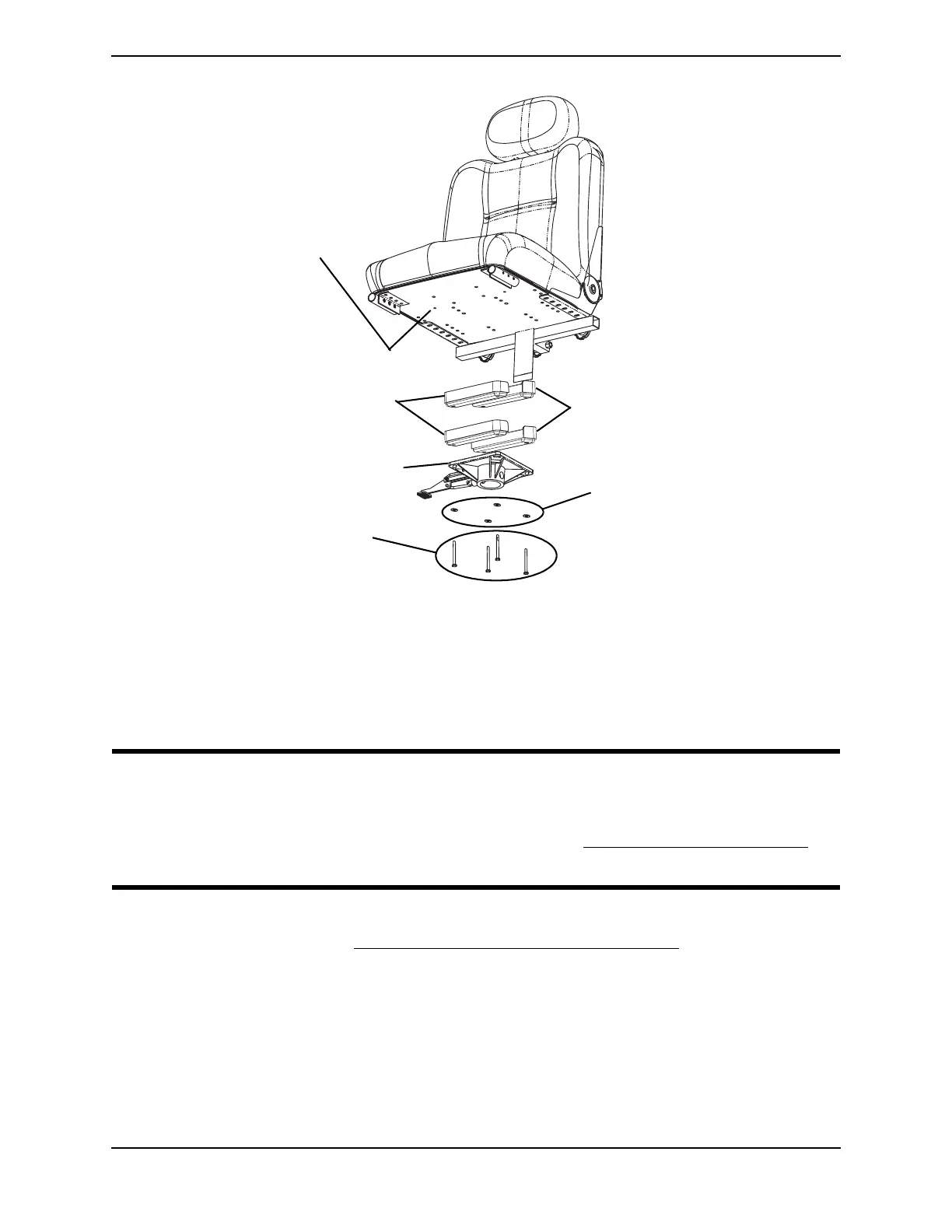

FIGURE 7.5 Adjusting the Seat Height
Adjusting Seat Position on Seat Base
WARNING
Refer to the table in FIGURE 7.6 for proper seat post mounting positions. For users
over 100 kg - seat MUST be in the 3 cm back position (FIGURE 7.6) when using seat
post mounting holes 3, 4 and 5 (FIGURE 7.6). Refer to Adjusting the Seat Height on
page 42.
NOTE: For this procedure, refer to FIGURE 7.6.
1. Remove the seat. Refer to Removing/Installing the Seat Assembly
on page 40.
2. Remove the four mounting screws and washers securing the seat adapter plate to the
seat base (FIGURE 7.6).
3. Separate the seat adapter plate from the seat base.
4. Refer to FIGURE 7.6 to determine the correct mounting holes to achieve the desired
seat position.
5. Align the mounting holes on the seat adapter plate (determined in STEP 4) with the
mounting holes on the seat base.
Washers
Mounting
Screws*
*NOTE: 9 cm mounting screws shown. 4 cm and 6 cm mounting screws are supplied
with the seat.
Seat Adapter
Plate
3 cm
Adjustment
Spacers
Seat
Base
3 cm
Adjustment
Spacers
To Next Page
