SECTION 9—FRONT RIGGINGS
Part No. 1139640 55 Pronto® M61™with SureStep®
Adjusting Legrest Angle
WARNING
Before driving the wheelchair, ensure
there is adequate clearance between
the legrests and the front casters and/or
the ground. Incorrect adjustment of the
legrests may cause bodily injury.
NOTE: For this procedure, refer to
FIGURE 9.3.
1. Pull up the release handle.
2. Adjust the legrest up or down to the
desired angle.
3. Push down the release handle to secure
the legrest into position.

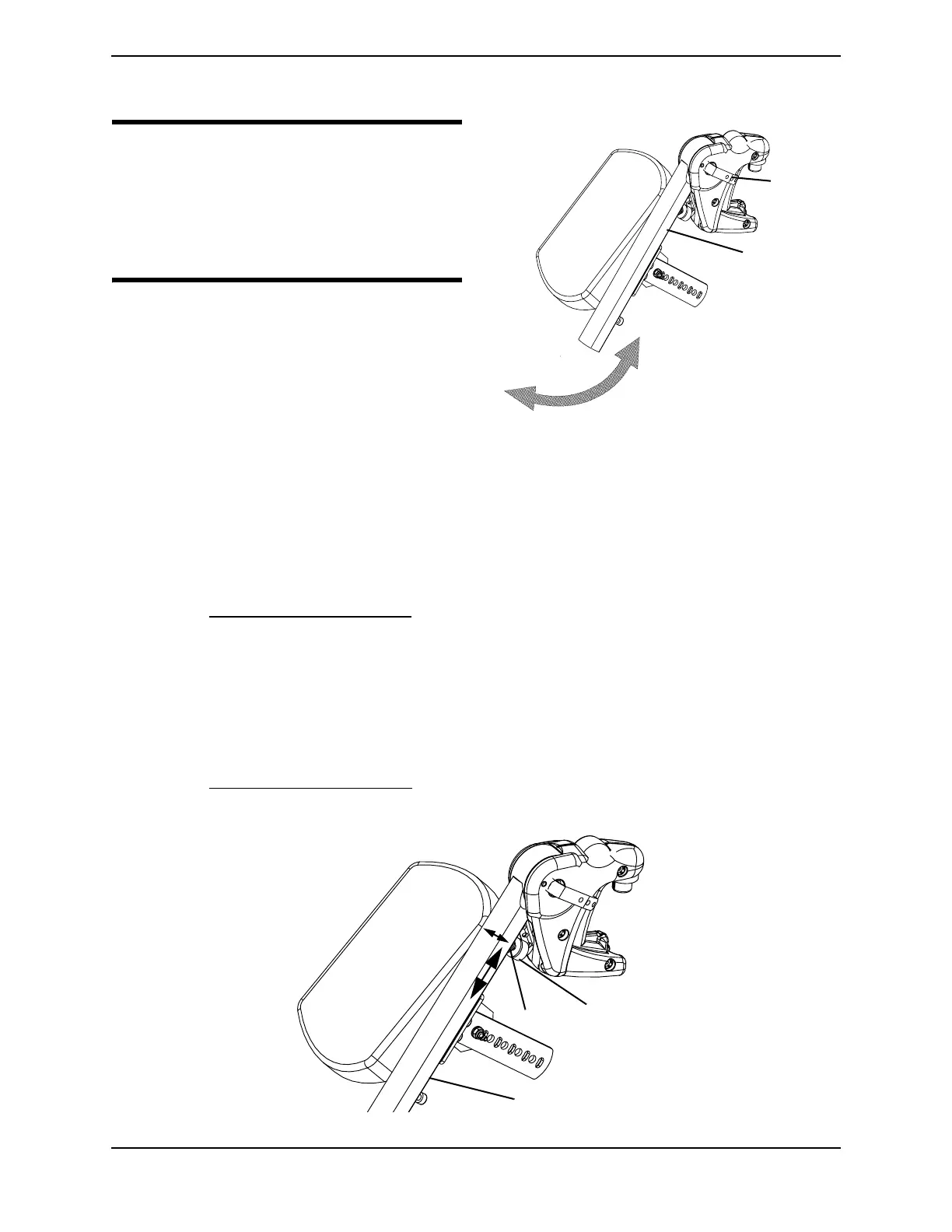

FIGURE 9.3 Adjusting Legrest Angle
Setting Legrest End Stop
NOTE: For this procedure, refer to FIGURE 9.4.
NOTE: This procedure requires a 1 x 10 mm open-ended wrench.
1. Refer to Adjusting Legrest Angle on page 55 to swivel the legrest upward in order to
access the rubber stop.
2. Use the open-ended wrench to loosen the counternut.
3. The rubber stop can be screwed in or out or pushed up or down the legrest adjusting
tube. Move the rubber stop to the desired position.
4. Re-tighten the counternut.
5. Refer to Adjusting Legrest Angle
on page 55 to move the legrest to the desired
position.
FIGURE 9.4 Setting Legrest End Stop
Release
Handle
Legrest
Rubber Stop
Counternut
Legrest Adjusting Tube
