SECTION 7—SEAT
Pronto® M61™with SureStep® 44 Part No. 1139640
6. Using the four mounting screws and washers, secure the seat adapter plate to the seat
base. Securely tighten.
7. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 40.

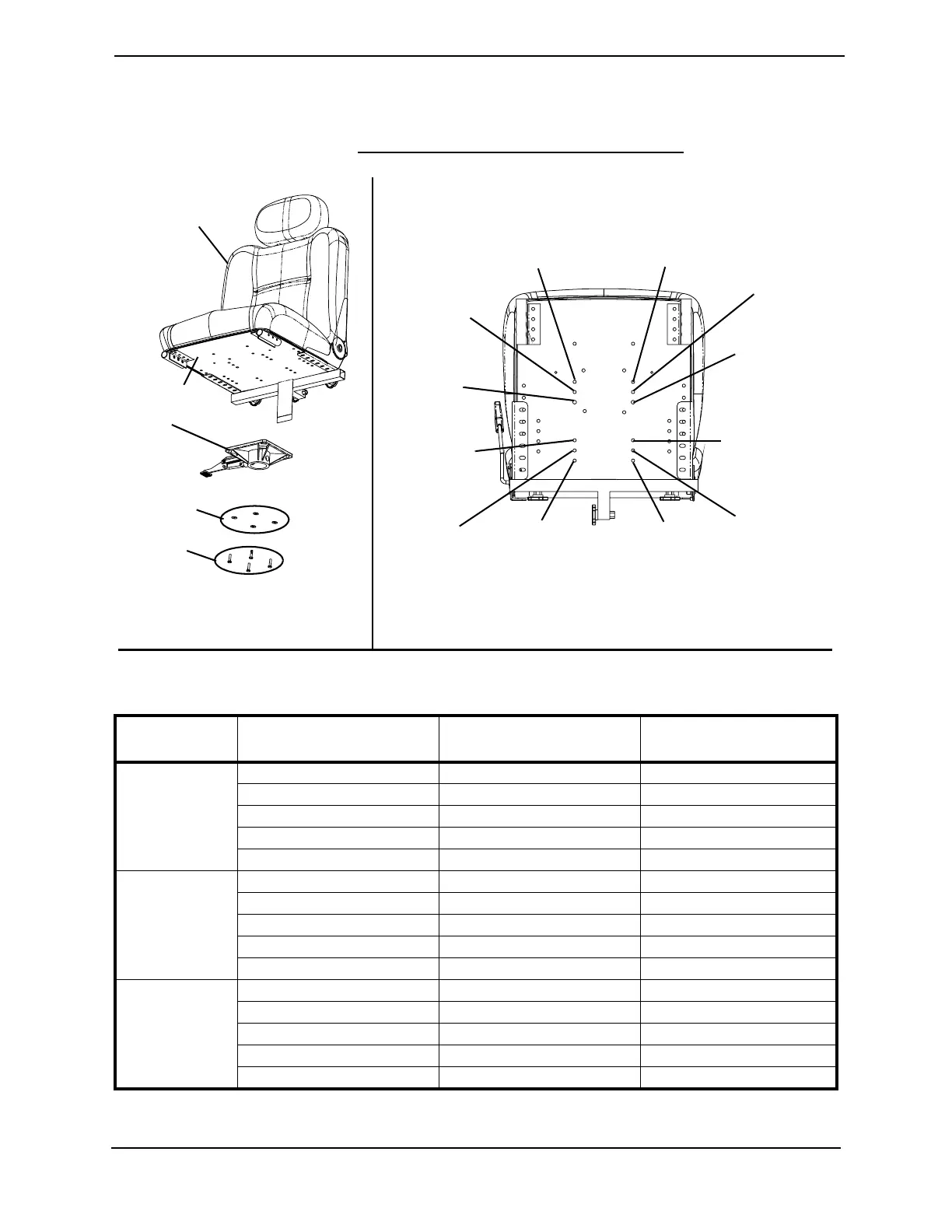

FIGURE 7.6 Adjusting Seat Position on Seat Base
WEIGHT
LIMITATION
3 CM
BACK
STANDARD 3 CM
FORWARD
136 KG
Y Y N/A
Y Y N/A
Y N/A N/A
Y N/A N/A
Y N/A N/A
100 KG
YYY
Y Y N/A
Y N/A N/A
Y N/A N/A
Y N/A N/A
68 KG
YYY
YYY
YYY
YYY
YYY
Mounting
Screws
Washers
Seat Base
DETAIL “A” - SEAT POSITION
3 cm Back
Seat Position
3 cm Back
Seat Position
3 cm Back
Seat Position
Standard
Seat
Position
Standard
Seat
Position
Standard
Seat
Position
Standard
Seat
Position
Front of Seat
Rear of Seat
Seat
Assembly
3 cm Forward
Position*
3 cm Forward
Seat Position*
3 cm Back
Seat Position
DETAIL “B” - PROPER SEAT POSITIONS FOR 46 CM DEEP BACK SETTING
Y - Use N/A - DO NOT Use
*NOTE: For users over 100 kg - DO NOT use 3 cm forward
position.
3 cm Forward
Position*
3 cm Forward
Position*
Seat
Adapter
Plate
