1. Installation and Connection
1.1 Location SiteUnit on
1. should outdoors in s
2. Connect the unit to the pool pump pressure side after al filters and before any
chlorinators, ozonators or dosing equipments (see next page). Place the eat ump
unit as close to the filter system as possible. It should be less than 15 m (50 feet).
will 50 mm ( ½”)
4. Consider the positioning of the water inlet and outlet to have good access for easy
draining of the unit for the winterizing.
5. The noise level is low, nevertheless we recommend to place the unit far away from the
sitting area so that you can enjoy your pool in silence.

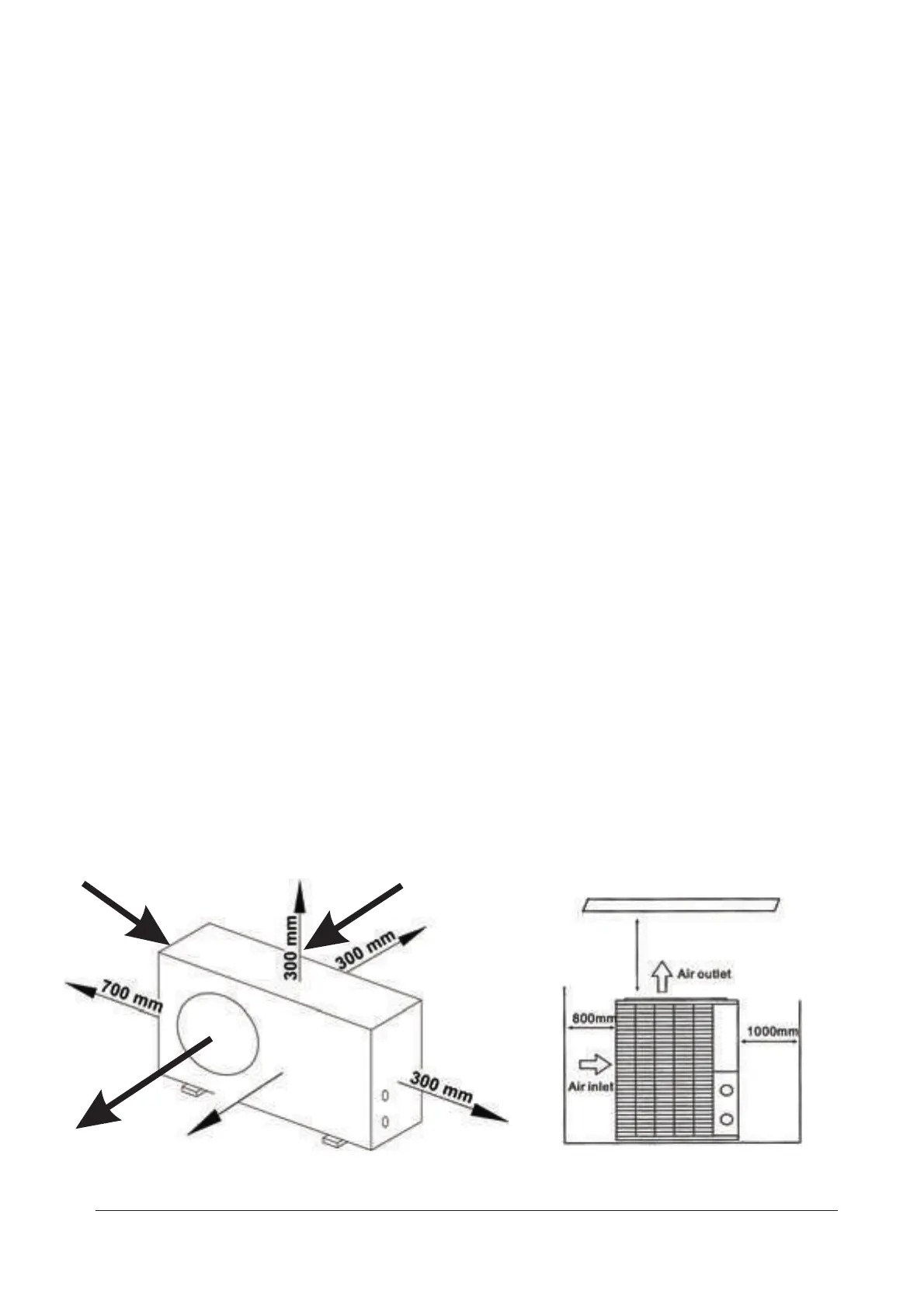

6. Observe the distances from a wall or other objects as given in the picture below, so
that the air can flow unrestricted (bushes or other objects around).
7. The insulation of the water tubes between the unit and the filter system is very
important for energy saving.
For example: In case of 10 m distance and 10 deg C temperature difference
between the pool water and the ambient air, 2 cm insulation is required; the heat
loss will be approximately 0.5 kW. The Heat Pump will run c. 2-4 % longer. Without
the insulation the heat loss will be ca 1.5 kW, the unit will run 6-10 % longer.
8. The heating process generates condense water. Water drips into the base-pan and can
be led away with a hose. Under special weather conditions the process can produce
several litres within a short time. That is normal. If you suspect leakage, follow the
instructions on the page 5
This unit be installed , under special conditions also door .
l
hp
3. The standard model accept 1 PVC pipe for connecting to the pool
filtration piping.
heat
1.
5
AIR IN
AIR OUT
Air-flow: Horizontal Air-flow: Vertical
(Air-flow: Upwards)
2500 mm
2000 mm
AIR IN
Important: Min. distance to obstacle or walls
