8.3.2 Replacing the carbon brushes
Information
Always replace both carbon brushes!
Caution!
Check the carbon brushes every three months and change if required. In a dusty
or hot-moist environment it is recommended to shorten the inspection intervals.

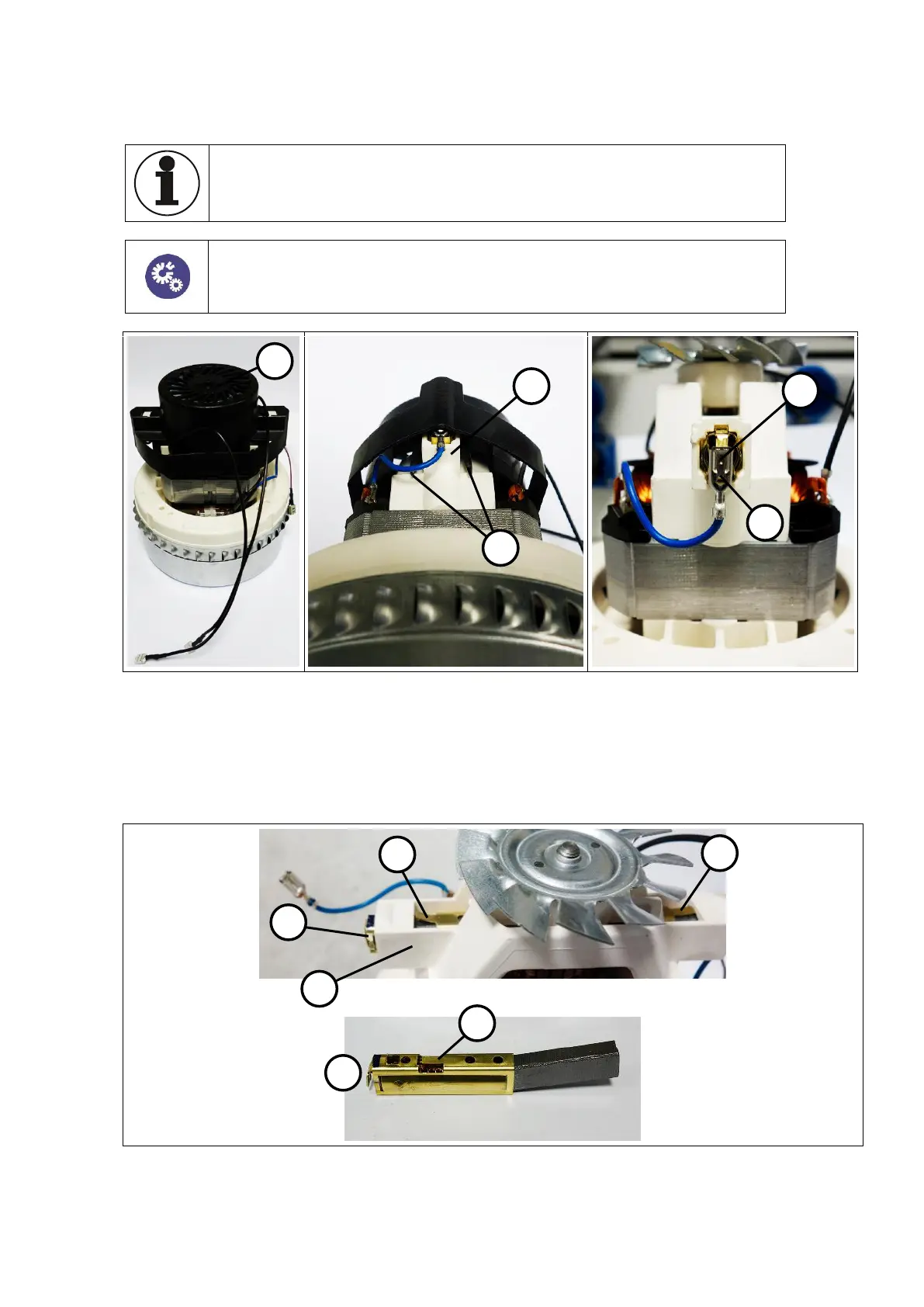

1. Remove rotor hood (1a).
2. To do this carefully loosen the snap-in hooks (1b) on both carbon brush holders (2).
3. Pull out the plug connector (3a) on the carbon brushes. To do this slightly lift the circlip
(3b).
1a
1b
2
3a
3b
5b
4b
2
5a
5b
4a
