ProTec Polymer Processing FG 206 - Plug in the Cable

ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en
57

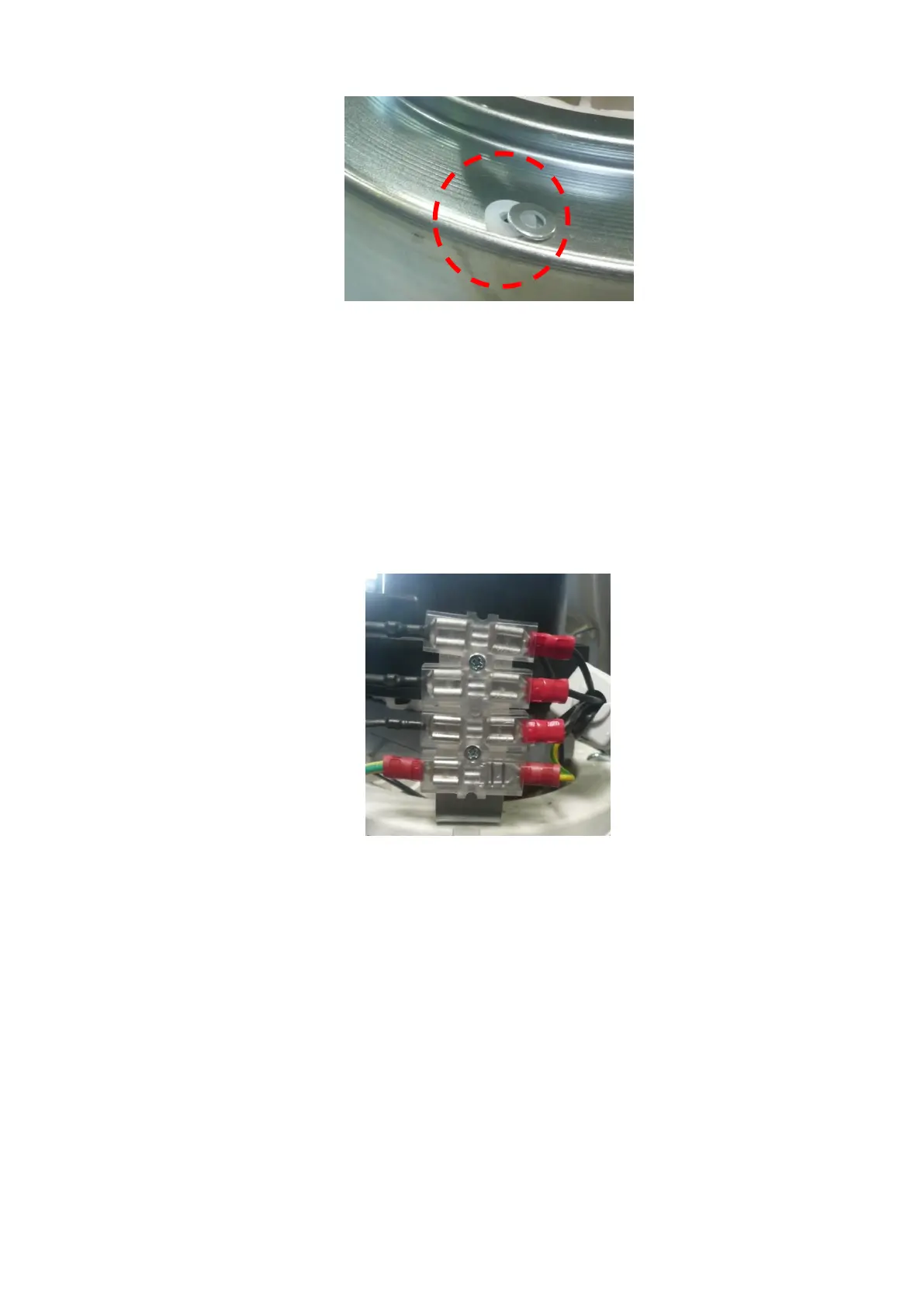

4. Check the screws for a tight seat.
8.3.6 Plug in the cable
 Insert the cable of the control in the cable lug.
Note: The contact for the carbon brushes must ALWAYS be on the third position (from the top).
ALWAYS stick the contact for the earthing on the fourth slot.
