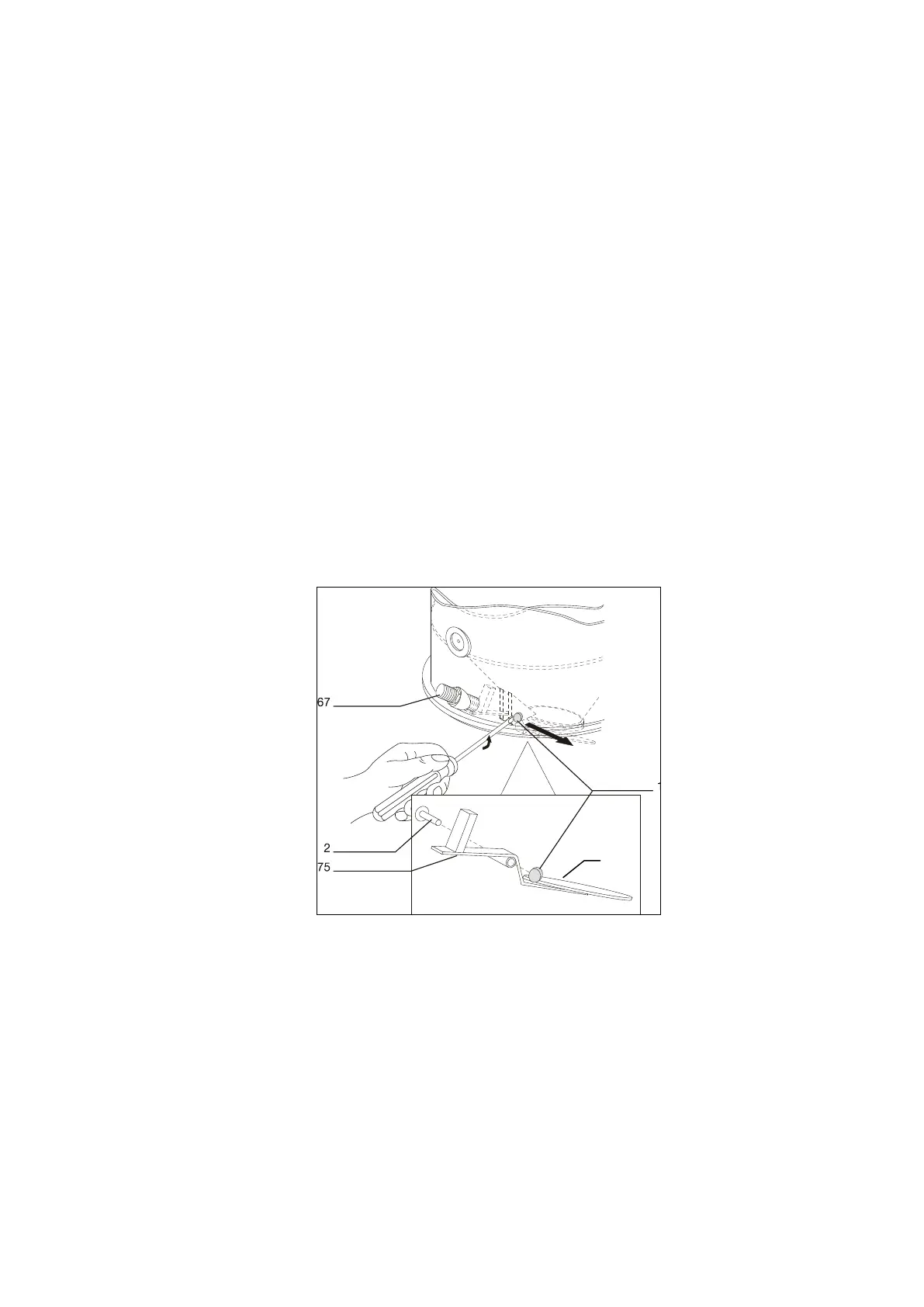

8.4.3 Replacing the discharge flap assembly
1. Remove device.
2. Do not set the conveyor on the discharge flap!
3. Otherwise it could be damaged.
4. Remove cap (1) and dispose of it.
5. Pull out pin (2) and dispose of it.
6. Pull out discharge flap (75).
7. Insert new discharge flap and fix with the new pin. Slide the new cap on the pin and push
tightly.
8. Refasten the device.
8.4.4 Replacing the plate on the discharge flap
1. Remove device.
2. Unscrew plate (75c) from the discharge flap (75).
3. Apply Loctite 242 on the threads of the new plate.
4. Screw on the new plate.
5. Refasten the device.
