Top of EB-91A
Bottom of EB-91A
H@1>45B?1B4#95<4-9B9>7
>9D91D9>75F9359B3E9DC

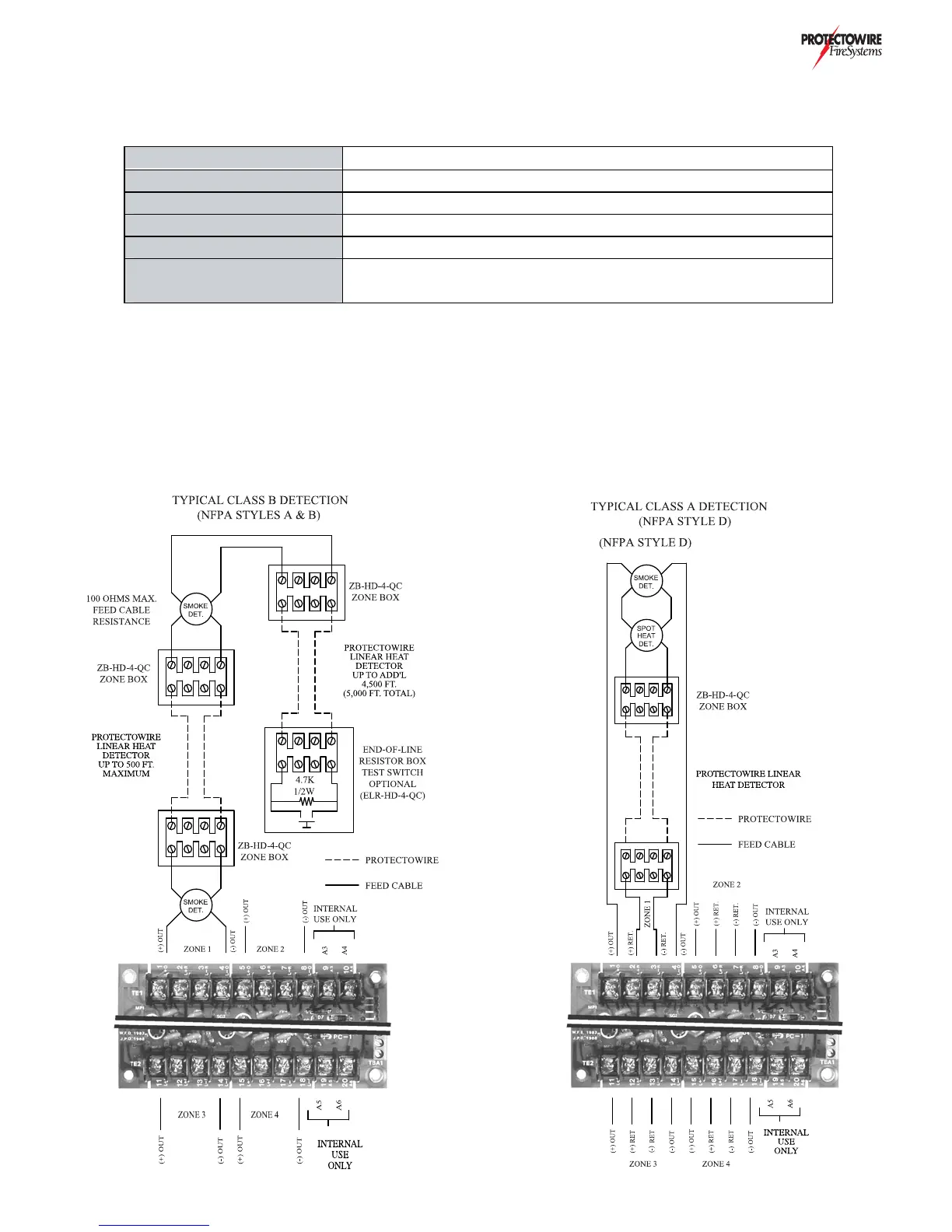

Class A (NFPA Style D)/Class B (NFPA Style A and B)
Voltage Standby
22VDC nominal, power limited
Current to insure alarm 15mA (1K ohm loop resistance minimum)
Short circuit current 35mA
Supervision current 4.5mA
End-of-line resistor ELR-4.7K, 1/2 Watt (Class B only)
Maximum feed cable
resistance
100 ohms. Feed cable may consist of any combination of
PROTECTOWIRE or copper feed
+C5D856?<<?G9>73?=@1D92<545F935C?B45F935C1@@B?F542I*85&B?D53D?G9B5?=@1>I>3
- Up to 5,000 ft. of PROTECTOWIRE per circuit.
- Any combination of normally open contact devices.
- Up to (30) Two-Wire Smoke Detectors per circuit.
- Smoke Detectors NS-series #SLR-24, #SIJ-24, #SLR-24H
- Detector Identifier - HD-3 Base Identifier - HB-3
Note: Smoke detectors shall not be employed on intrinsic safe detection circuits.
Power Limited wiring must be isolated from Non-Power Limited Wiring.
