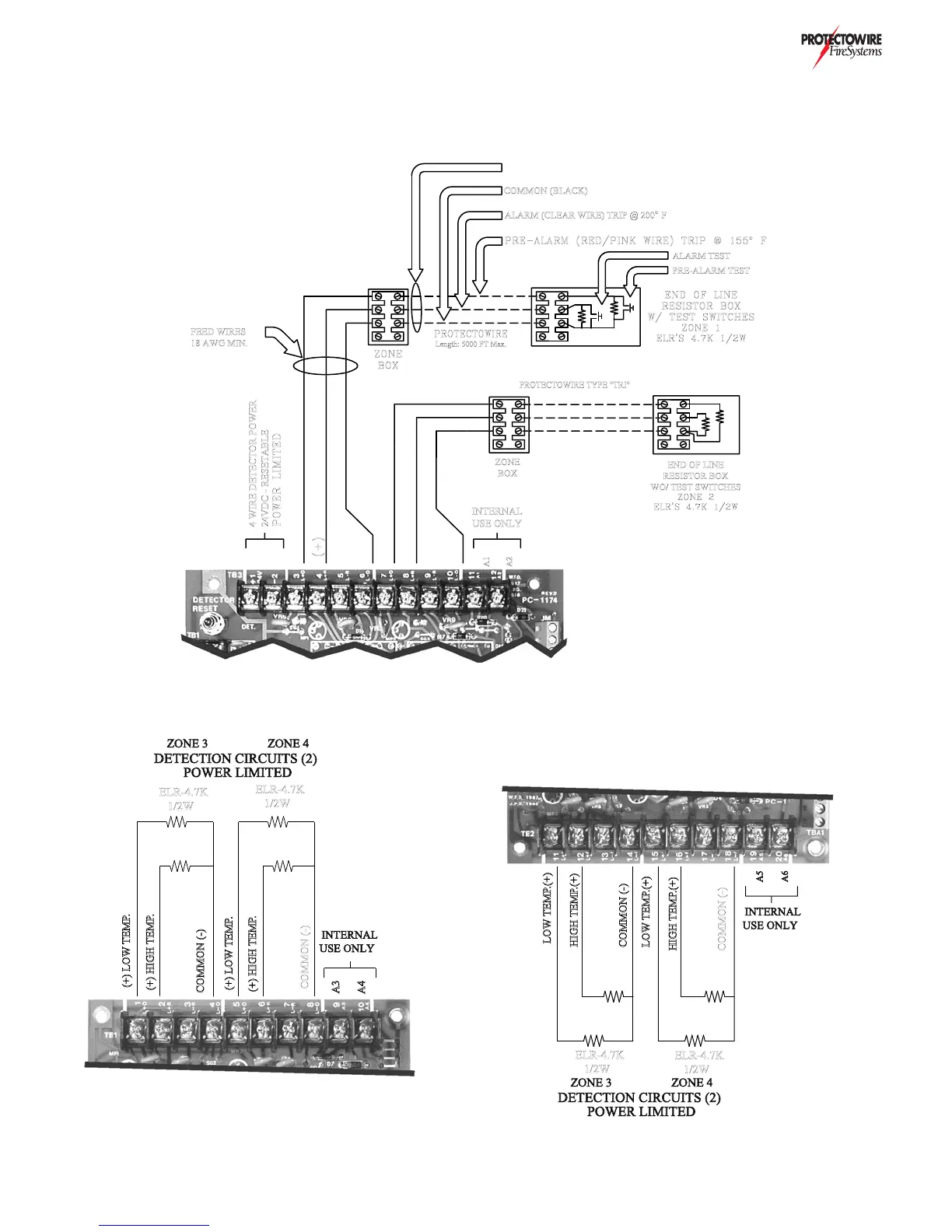

Protectowire 2000 FireSystem - X Dual Temperature Zone Card Field Wiring

~ 52 ~
%@D9?>L.ME1<*5=@5B1DEB50?>51B40
95<4G9B9>76?B#19>?1B4#1>4H@1>45B?1B4
.&$(%(
**(#$"
.&$(%(
**(#$"
#$N%(
**(#$"
&&""%(#&&(%,)/)*#)%$"/
LOW TEMP.(+)
COMMON (-)
HIGH TEMP.(+)
LOW TEMP.(+)
COMMON (-)
HIGH TEMP.(+)
ELR-4.7K
1/2W
ELR-4.7K
1/2W
(+) LOW TEMP.
COMMON (-)
(+) HIGH TEMP.
(+) LOW TEMP.
COMMON (-)
(+) HIGH TEMP.
ELR-4.7K
1/2W
ELR-4.7K
1/2W
A3
A4
(+)
(+)
(-)
(+)
(+)
(-)
END OF LINE
RESISTOR BOX
W/ TEST SWITCHES
ZONE 1
ELR'S 4.7K 1/2W
PROTECTOWIRE
Length: 5000 FT Max.
BOX
ZONE
PRE-ALARM (RED/PINK WIRE) TRIP @ 155
°
F
ALARM (CLEAR WIRE) TRIP @ 200
°
F
COMMON (BLACK)
PROTECTOWIRE TYPE "TRI"
ZONE
BOX
END OF LINE
RESISTOR BOX
WO/ TEST SWITCHES
ZONE 2
ELR'S 4.7K 1/2W
ALARM TEST
PRE-ALARM TEST
PROTECTOWIRE TYPE "TRI"
FEED WIRES
18 AWG MIN.
(+)
(-)
4 WIRE DETECTOR POWER
24VDC - RESETABLE
POWER LIMITED
A2
A1
INTERNAL
USE ONLY
&%-("#*+"
*#&(*+(*(
-("$(*
**%$(+*)
&%-("#*+"
*#&(*+(*(
-("$(*
**%$(+*)
