Page 7
Installation and Wiring
Mounting and location - The CTM-530 can be provided as a complete module assembly for installation in
a customer supplied enclosure or pre-mounted in a factory supplied enclosure. Please refer to the specifi cation
section for enclosure information. When mounting the CTM-530 please follow the installation guidelines
below.
The CTM-530 interface module shall be located in a clean, dry, vibration free environment and shall not be
subjected to temperatures or humidity that exceeds the modules specifi cations.
The CTM-530 should be mounted in an accessible location where the user interface can be viewed without
obstruction.
The enclosure rating should meet or exceed that which is required for the installation environment. All en-
closure penetrations should be via connectors and/or conduit hardware that meet or exceed the rating of the
enclosure.
To utilize the maximum detector length capacity of the CTM-530, feed cable lengths should be kept to a
minimum by locating the CTM-530 as close to the area of detection as possible.

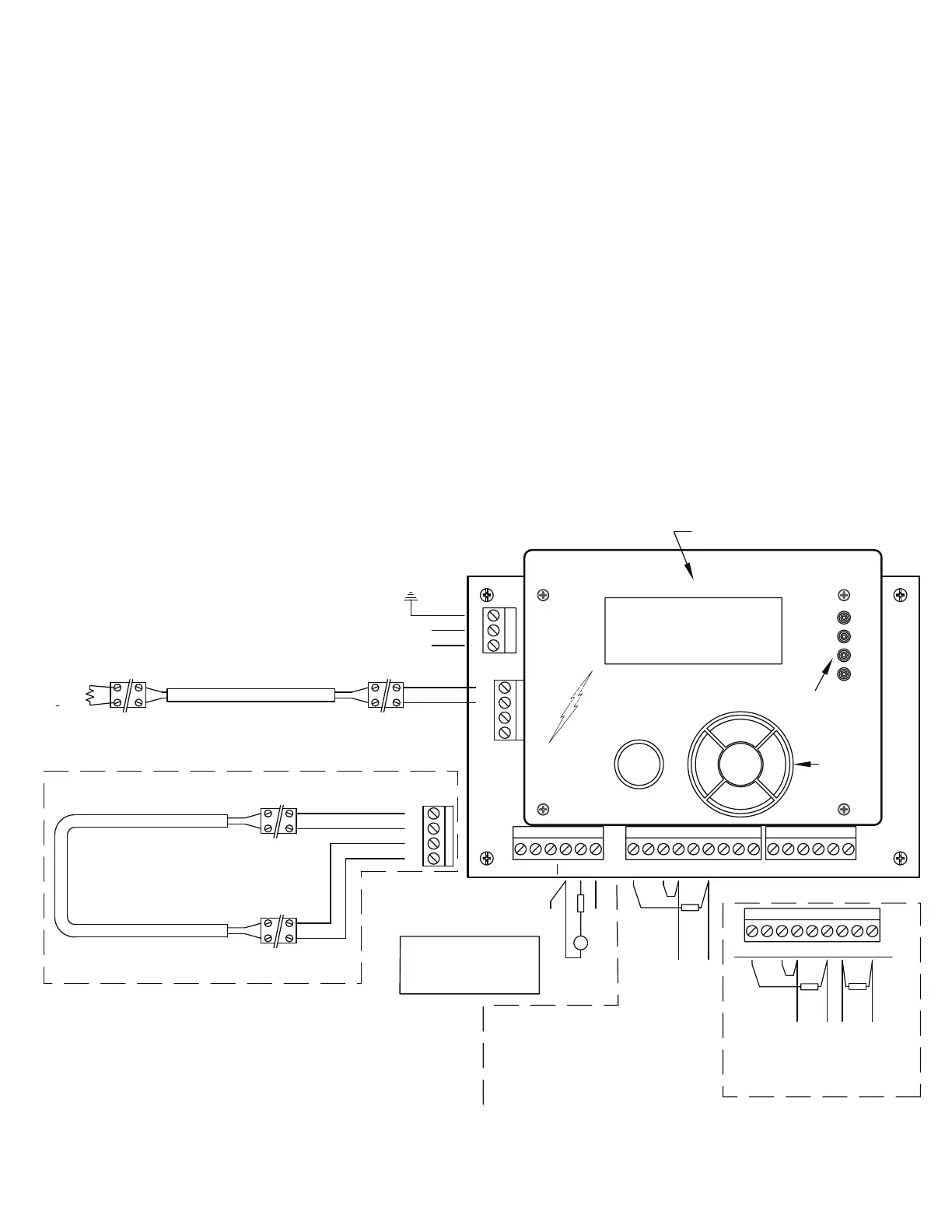

Wiring Diagram
OK
NC NO C NO NC C NO NC CRTN OUT +V RTN OUT +V
LOOP 2 LOOP 1
FAULT ALARM SHORT
GND +V COM
+- +-
OUT
RET
ESC
POWER
ALARM
FAULT
IDC
FROM HOST
PANEL
(+) (-)
HOST
ZB-5 ZONE
BOX
* TX EXTENSION
ZB-5 ZONE
BOX
PROTECTOWIRE CTI LINEAR
HEAT DETECTOR
(CLASS B)
END LINE
RESISTOR
10K
1
2
WATT
(+)
(-)
(+)
(-)
(+)
(-)
Note: For CTI type detector and
corrosponding extension cable, polarity
MUST be observed. Copper (CU) colored
conductor is positive, silver (CO) conductor
is negative.
+- +-
OUT RET
* TX EXTENSION CABLES
PROTECTOWIRE CTI LINEAR
HEAT DETECTOR
(CLASS A)
(+)
(-)
(+)
(-)
Note: For CTI type detector and
corrosponding extension cable, polarity
MUST be observed. Copper (CU) colored
conductor is positive, silver (CO) conductor
is negative.
(+)
(-)
(+)
(-)
J10
J11
J11
(+)
(-)
POWER
12-24VDC
1.6 WATT
EARTH GND
Note: Connections shown are typical. Other
monitoring scenarios can be congured as
required by the authority having jurisdiction.
NC NO C NO NC C NO NC C
FAULT ALARM SHORT
FROM HOST
PANEL
(+) (-)
HOST ELD
(+) (-)
IDC #1
ALARM
IDC #2
PRE-ALARM
OR SUPVERVISORY
LCD DISPLAY
STATUS
INDICATORS
NAVIGATION
SWITCHES
(+)(-)
A
RES
SUPPLY (-)
SUPPLY (+)
WIRING TYPICAL
FOR LOOP 1 & 2
SUPPLY OF 5-24VDC
MAY BE
LOCAL OR REMOTE
SEE LOOP 1
FOR WIRING
4-20ma
ALARM POINT OUTPUT
4-20ma
STATUS OUTPUT
SUPPLY @ 12V - 300 Ohms
SUPPLY @ 24V - 800 Ohms
TOTAL MEASURMENT LOOP RESISTANCE
INCLUDING FEED CABLE AND LOAD
RESISTOR NOT TO EXCEED BELOW VALUES
Note: If dedicated earth ground is not
available, GND terminal and COM terminal
must be connected to each other.
J9
J13 J12
CONNECTION
DIAGRAM #2
CONNECTION
DIAGRAM #1
Interface Contact wiring 12 AWG to 30 AWG. When
using maximum of two conductors within a single
terminal; 18 AWG Maximum. Wires must be
individually inserted to terminal and not twisted
together as that could aect circuit supervision.
* For all CTI type detectors, twisted "T" type extension grade
thermocouple wire is required for use as interconnecting
wire on the detection circuit. Minimum conductor size is
20AWG (0.812mm), or as required by local code.
CABLE
ELD
CTM-530
**
** Fault contacts shown normally energized.
**
SHORT
DRTB2
Terminal
DRTB2
Terminal
ZB-5 ZONE
BOX
DRTB2
Terminal
ZB-5 ZONE
BOX
DRTB2
Terminal
TX+ TX-
AB
RX+ RX- 1 2
RTERM
RS-485
MODBUS RTU
CU
CO
CU
CO
CU
CO
CU
CO
CU
CO
CU
CO
CU
CO
PROTECTOWIRE CTI-155
NORMAL
11:38am 12/21/2016
FireS ystems
PROTECTOWIRE
®
Note: See last page of manual for full size view of this wiring diagram
Figure - 6
