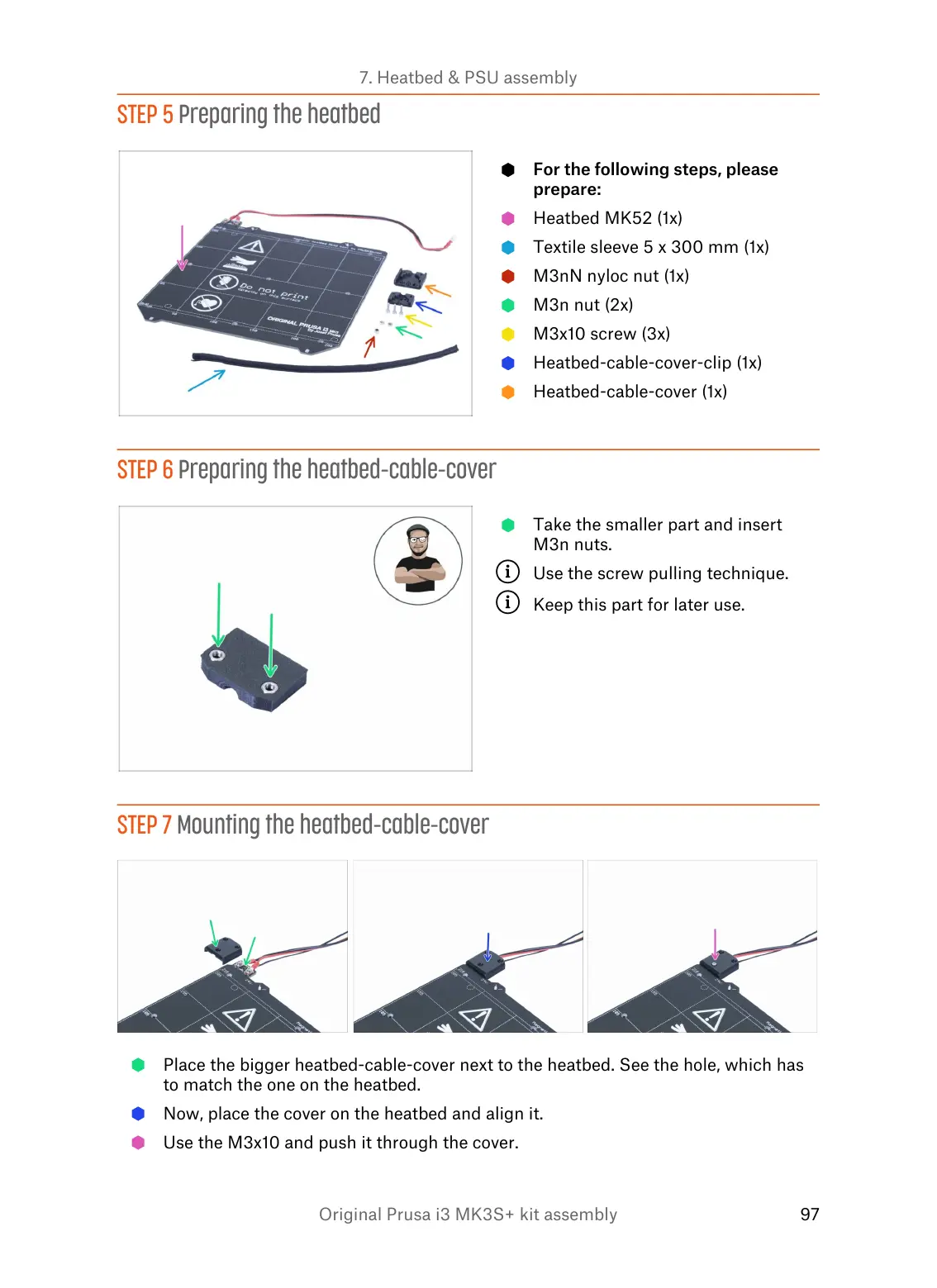

7. Heatbed & PSU assembly
Original Prusa i3 MK3S+ kit assembly 97
STEP 5 Preparing the heatbed
For the following steps, please
prepare:
Heatbed MK52 (1x)
Textile sleeve 5 x 300 mm (1x)
M3nN nyloc nut (1x)
M3n nut (2x)
M3x10 screw (3x)
Heatbed-cable-cover-clip (1x)
Heatbed-cable-cover (1x)
STEP 6 Preparing the heatbed-cable-cover
Take the smaller part and insert
M3n nuts.
Use the screw pulling technique.
Keep this part for later use.
STEP 7 Mounting the heatbed-cable-cover
Place the bigger heatbed-cable-cover next to the heatbed. See the hole, which has
to match the one on the heatbed.
Now, place the cover on the heatbed and align it.
Use the M3x10 and push it through the cover.
