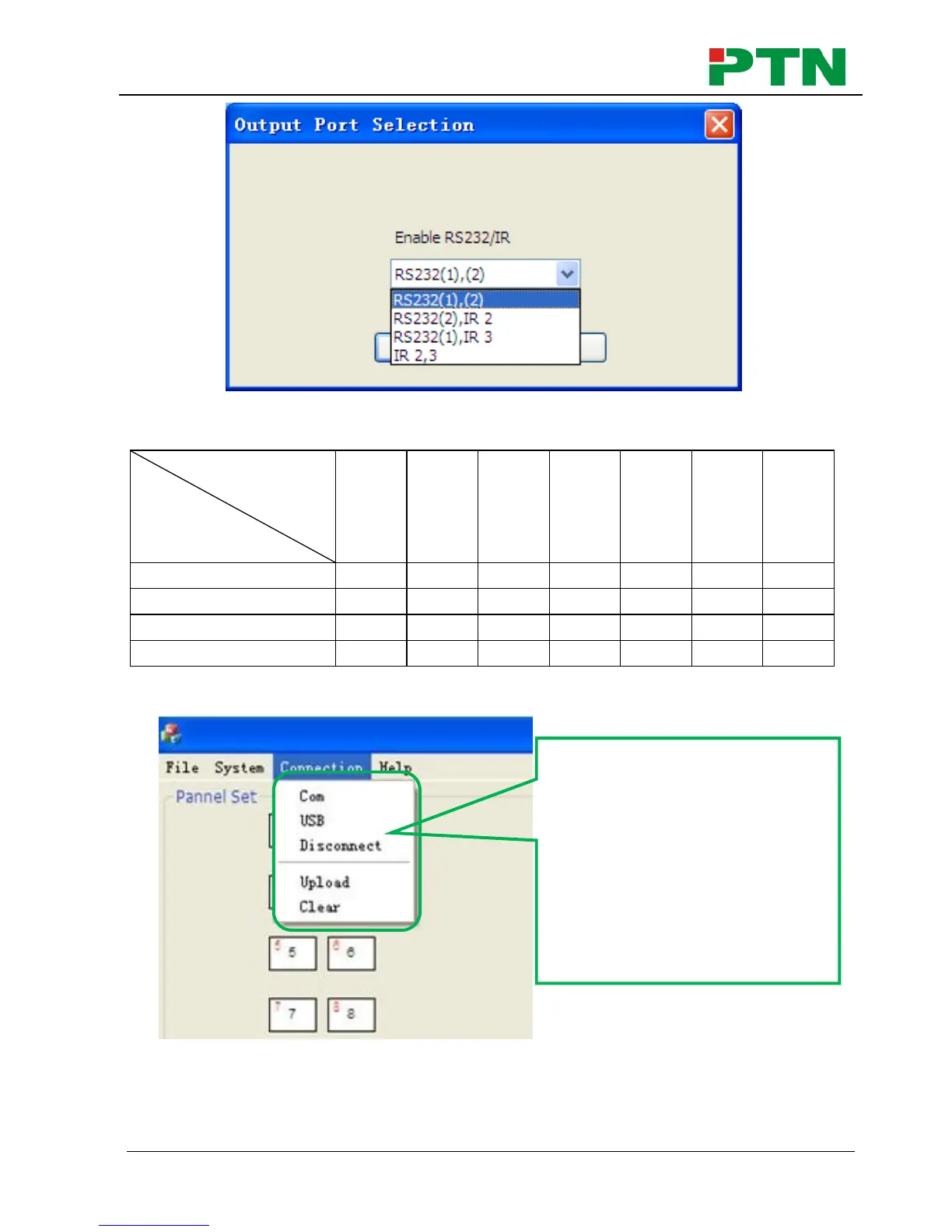

The output port set in PS-WP and the port used in WP8 is corresponding. And there
are four output types. They are showed as below form (“√” means port is available):
Output port of
WP8
Output mode
of PS-WP
IR1
RS232(1)
IR2
RS232(2)
IR3
RS232(3)
RS485
RS232(1)(2)
√
√
√
√
√
RS232(2),IR2
√
√
√
√
RS232(1),IR3
√
√
√
√
√
IR2,3
√
√
√
√
3) Connection type: the instructions are in the picture below:
The functions of WP8’s buttons will be available only after the programmed data is
uploading successfully.
4) Help: Show the information of PS-WP.
1：Com, connect by serial port.
2：USB, connect by mini USB.
3：Disconnect, disconnect the
connection.
4：Upload: upload the
programmed data to WP8. It
will clear all the old data in
WP8.
5：Clear, clear the data in WP8.
