6. System Diagram
The WP8 can active different ports at one time. It means every button can send the
RS232 and RS485 commands, IR code and control the relay at the same time.

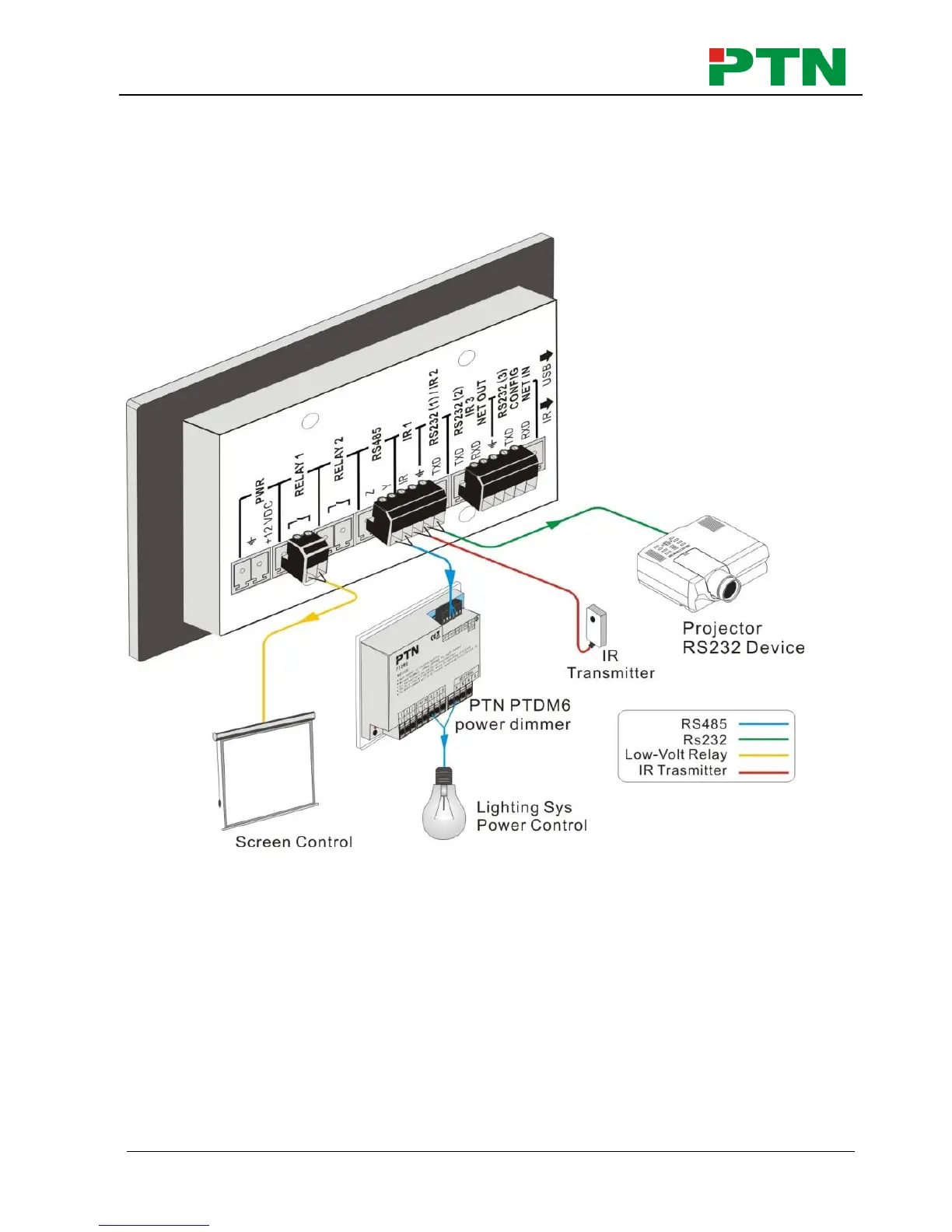

The demo system diagram as below:
System Diagram
