PTN WP8 - Specification; Connection Introduction; Introduction of the Interfaces

Programmable Control Panel
PTN Electronics Limited 2 www.PTN-electronics.com
3. Specification
Specification
Program Port
USB or RS232
Output Port
3 x RS232, 1 x RS485, 3
x Infrared, 2 x Relay
Serial Control
Port
RS232
Baud Rate
And Protocol
9600 baud, 8 data bits, 1
stop bit, no parity
Software
PS-WP
Temperature
-20 ~ +70°C
Frequency
Response
20Hz ~20KHz
Humidity
10% ~ 90%
Power Supply
100VAC~240VAC,
50/60 Hz
Power
Consumption
1W
Case
Dimensions
Dual-gang electron
box, 114x70 x28mm
Product
Weight
0.15kg
4. Connection Introduction

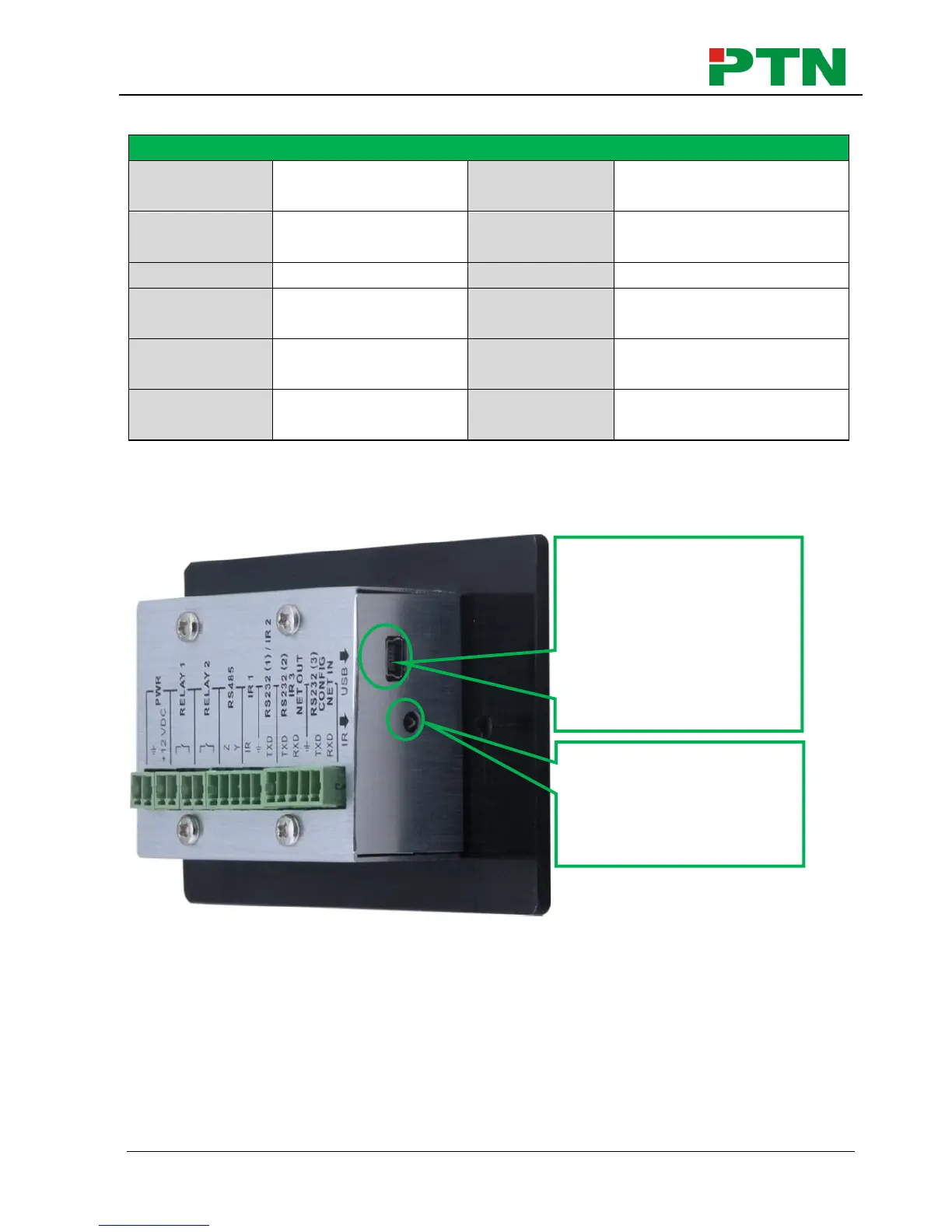

4.1 Introduction of the Interfaces
Mini USB Connector:
1. Communicate with PC
which uses PS-WP to
program the buttons.
2. Transmit the infrared
data when learning IR
(Optional).
Infrared sensor port:
receive and learn the IR
code, to build the IR
database.
