PTN WP8 - Event List

Programmable Control Panel
PTN Electronics Limited 20 www.PTN-electronics.com
c) When press the button7 and then button1, the button1 will execute the event of
num3, press button1 more times it will execute num4, then
num1->num2->num3 and so on.
d) When press the button8 and then button1, the button1 will execute the event of
num4, press button1 more times it will execute num1, then
num2->num3->num4 and so on.

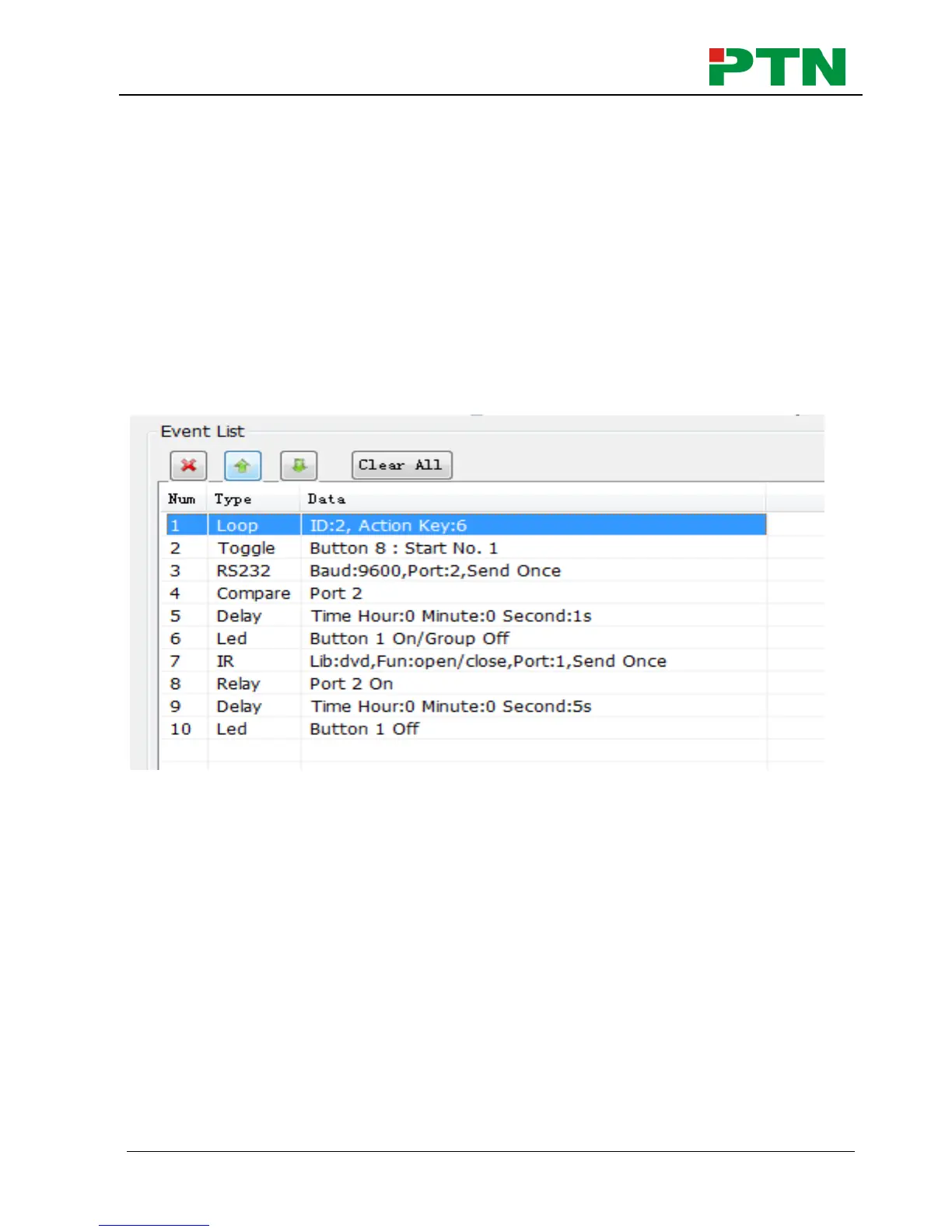

5.3.5 Event List
The event list shows all events of the selected action, and for each action of WP8, the
most events can be added is ten. The executing priority is from 1 to 10, see the picture
below. If there is an event execute incorrectly, all the events behind it will not be
executed.
