Programmable Control Panel
PTN Electronics Limited 4 www.PTN-electronics.com
4.2 Connection of Programming and Looping
WP8 can be connected to the computer for programming, to default the functions of
every button. It can be connected by USB or RS232, working with the PS-WP software.
It is shown as below:

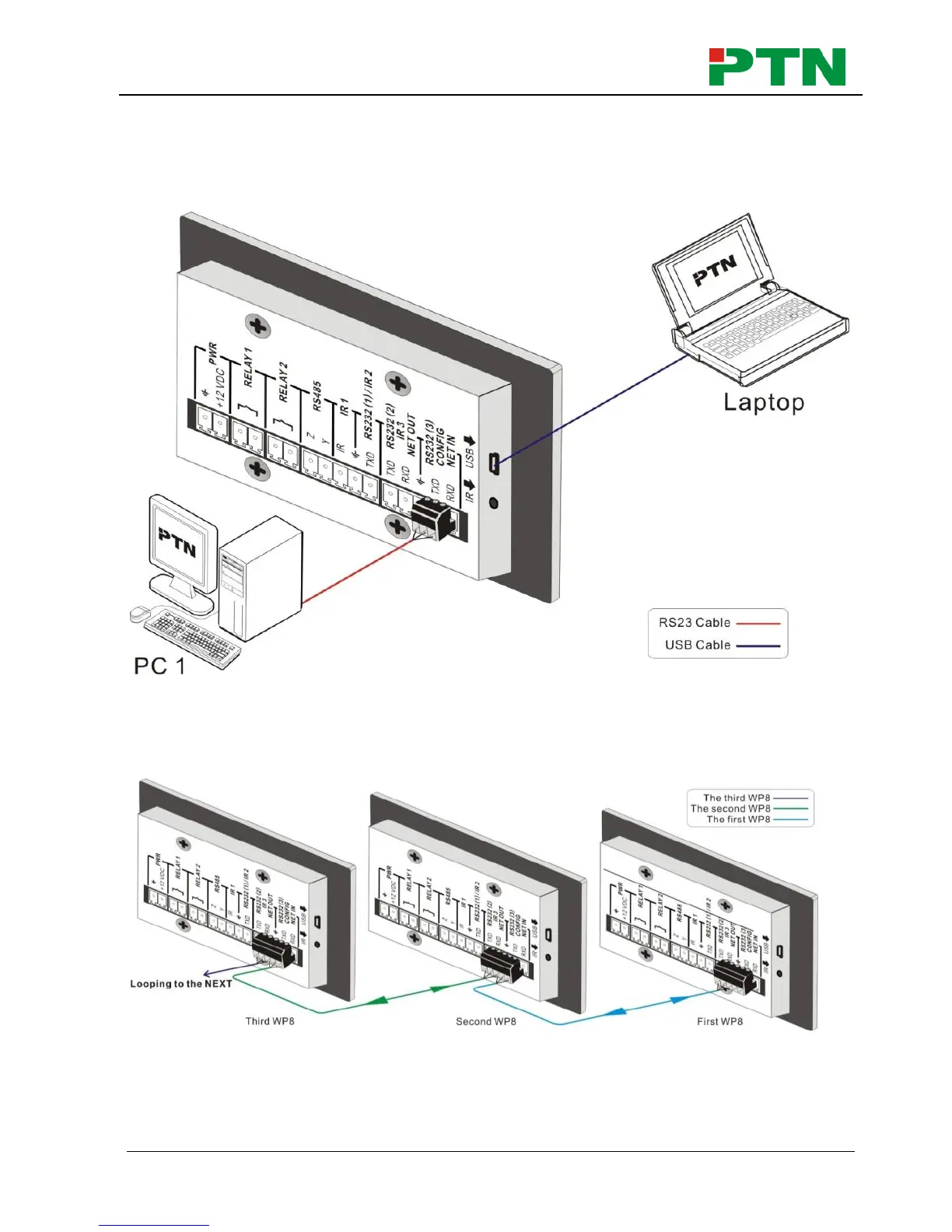

Programming Connection
Several pieces WP8 can be also looped to be a system, for control more devices. It is
looped by the inter RS232 setting. Please check the demo picture as below:
Several WP8 Looping connecting
After connect the WP8 as above, and then we should set the ID of each WP8 by
PS-WP. The ID number is from 01 to 99, and it also is the class of WP8 in the loop,
