Programmable Control Panel
PTN Electronics Limited 10 www.PTN-electronics.com

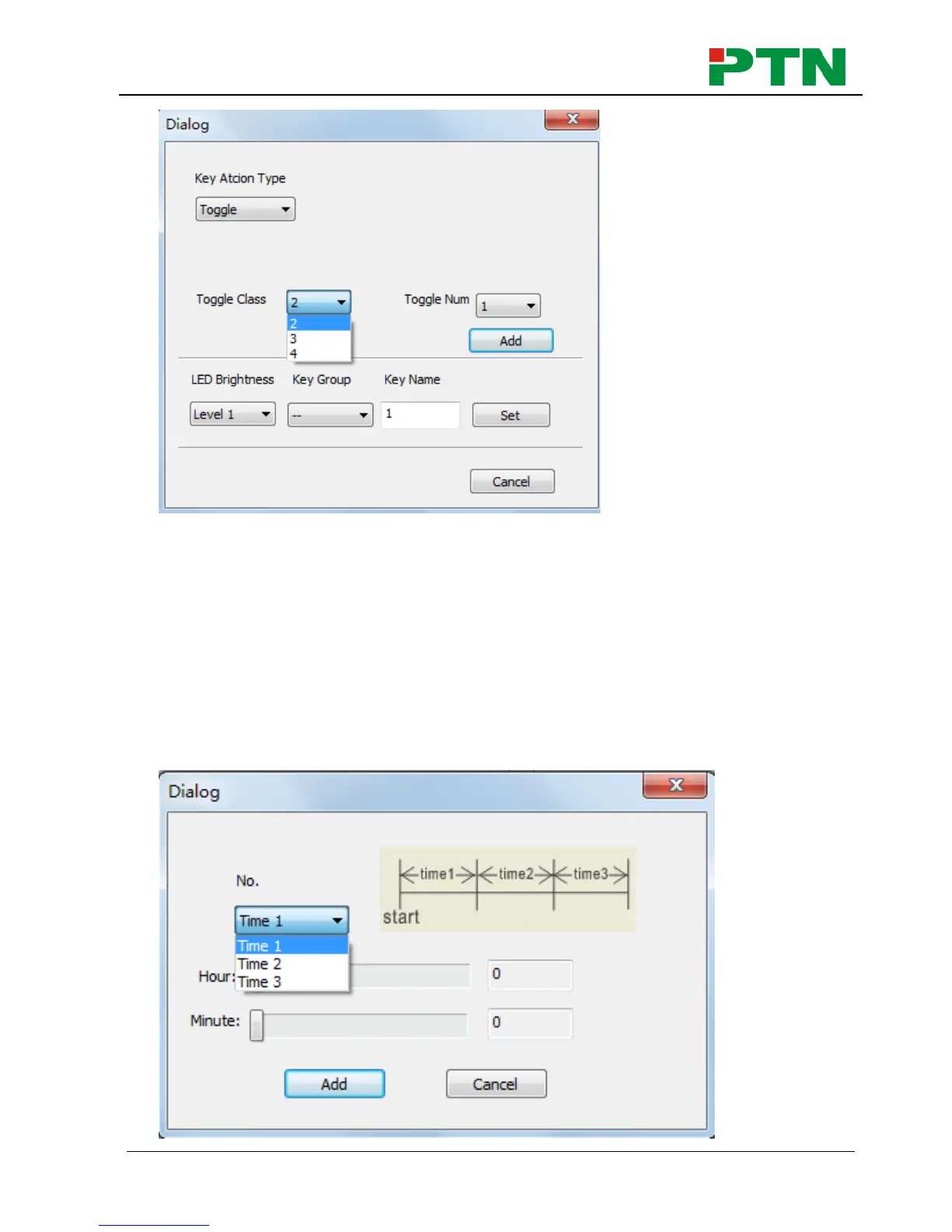

The toggle class is the action loop class, depends on the numbers of looped
actions. When the class is 2, there are two actions in the toggle. And so on.
2. Blue Keys: Keys 9-32, all are virtual keys, used in the loop function. When use the
loop function, the ID must be set, the ID can be 1 to 99. Press “add” will add the
button to action list.
3. Yellow Keys: Keys 33-36, all are virtual keys. Key 33 and 34 are for I/O control,
which is not supported with WP8. Key 36 is a start action, if add events to this
action, when the WP8 is power on, it will execute the events in this action. Key 35
is delay button, there are three time slots can be set. See in the picture below:
