PAGE 14
GENERAL:
In most cases, when the hydraulic winch does not perform satisfactorily, the cause of malfunction is found
somewhere in the hydraulic circuit. Before the winch is removed from its mounting and disassembled, all
hydraulic circuit components should be checked for proper function. Make certain hydraulic reservoir is filled to
top level. If the pump is drive by v-belts, check for belt slippage.
IMPORTANT:
The hydraulic operating volume relates to the line speed or rpm of the winch.
Therefore, if the winch does not produce the specified maximum rated line speed or drum rpm, install a flow
meter into the hydraulic circuit to check the volume supplied to the pressure port of the hydraulic winch motor
when the winch control is completely opened. The flow meter should indicate the maximum operating volume.
If this test indicates a loss of hydraulic flow, check the hydraulic pump, the relief valve and the control valve.
The hydraulic operating pressure relates to the line pull or lifting capacity of the winch.
If the winch will not lift the specified maximum line pull, install a pressure gauge into the pressure line leading
to the hoisting port on the hydraulic winch motor. Stall the winch to prevent rotation of the drum and then open
the control valve. Check the hydraulic pressure reading of the installed pressure gauge. If the pressure reads
below the specified maximum operating pressure, look for trouble in the hydraulic pump, the relief valve and
the control valve.
Only if the hydraulic system has been checked and found to be in order, use the following indications for
probable causes of failure in the winch:
313 REV.970317

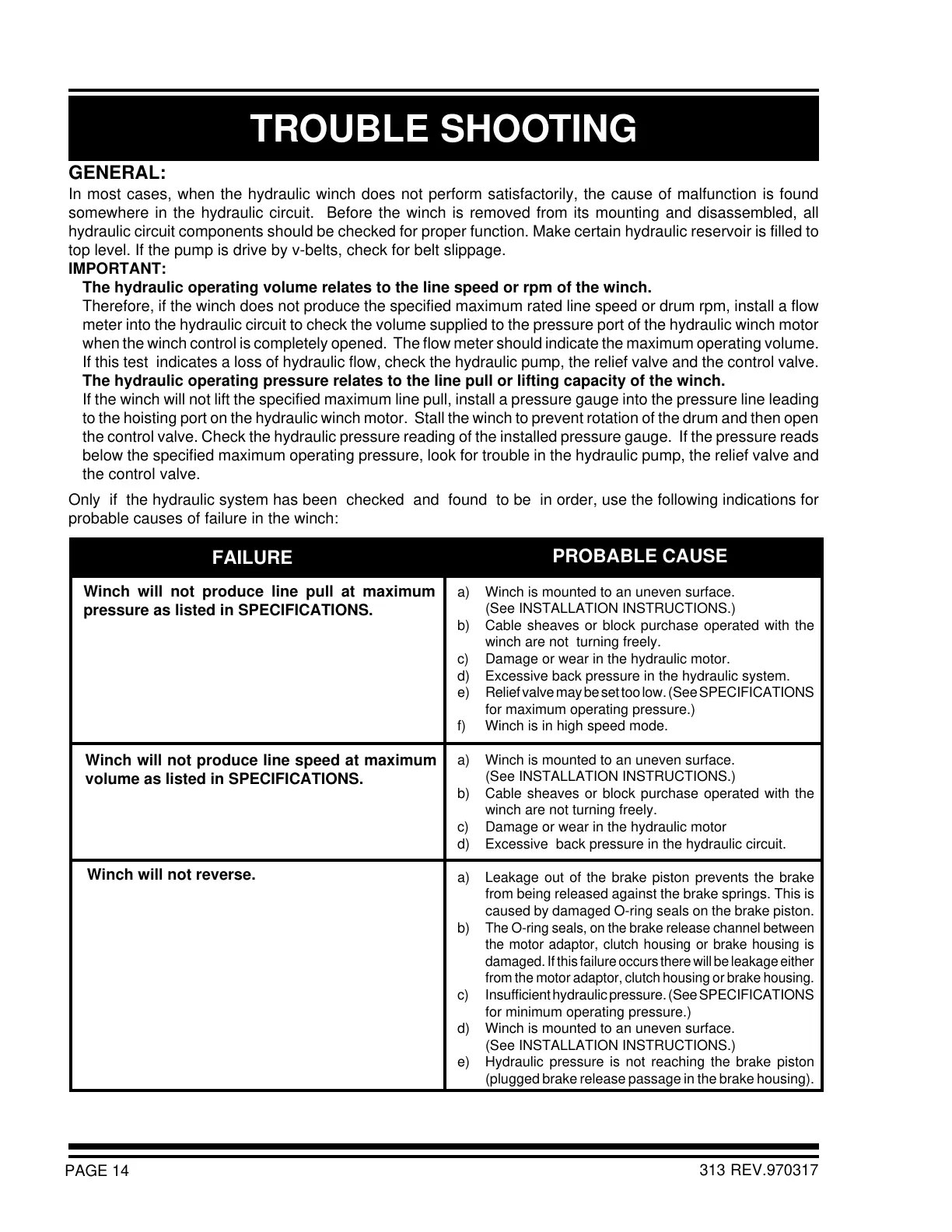

TROUBLE SHOOTING
FAILURE
PROBABLE CAUSE
Winch will not produce line pull at maximum
pressure as listed in SPECIFICATIONS.
a) Winch is mounted to an uneven surface.
(See INSTALLATION INSTRUCTIONS.)
b) Cable sheaves or block purchase operated with the
winch are not turning freely.
c) Damage or wear in the hydraulic motor.
d) Excessive back pressure in the hydraulic system.
e) Relief valve may be set too low. (See SPECIFICATIONS
for maximum operating pressure.)
f) Winch is in high speed mode.
a) Winch is mounted to an uneven surface.
(See INSTALLATION INSTRUCTIONS.)
b) Cable sheaves or block purchase operated with the
winch are not turning freely.
c) Damage or wear in the hydraulic motor
d) Excessive back pressure in the hydraulic circuit.
a) Leakage out of the brake piston prevents the brake
from being released against the brake springs. This is
caused by damaged O-ring seals on the brake piston.
b)
The O-ring seals, on the brake release channel between
the motor adaptor, clutch housing or brake housing is
damaged. If this failure occurs there will be leakage either
from the motor adaptor, clutch housing or brake housing.
c) Insufficient hydraulic pressure. (See SPECIFICATIONS
for minimum operating pressure.)
d) Winch is mounted to an uneven surface.
(See INSTALLATION INSTRUCTIONS.)
e) Hydraulic pressure is not reaching the brake piston
(plugged brake release passage in the brake housing).
Winch will not produce line speed at maximum
volume as listed in SPECIFICATIONS.
Winch will not reverse.
