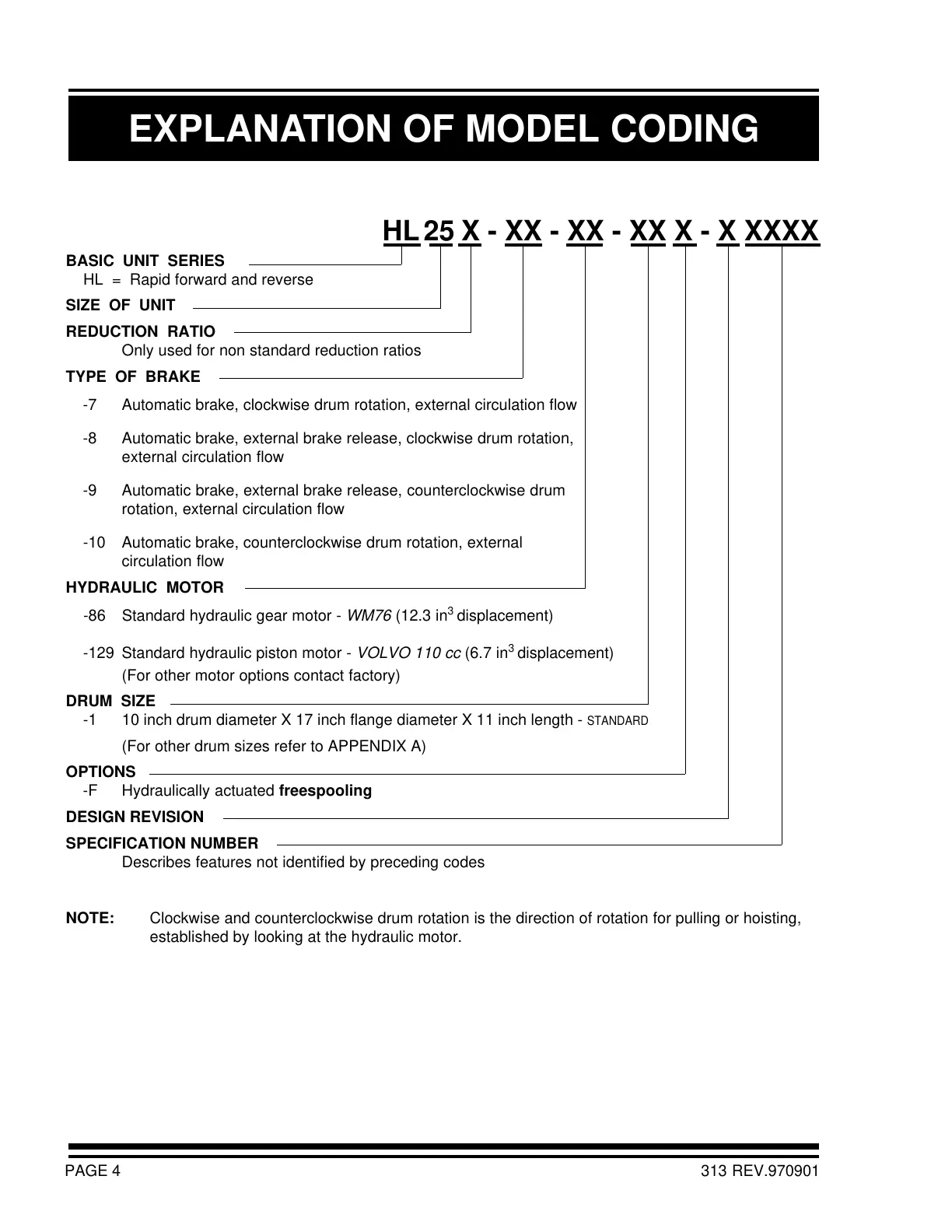

Pullmaster HL25 - EXPLANATION OF MODEL CODING

PAGE 4
X - XX - XX - XX X - X XXXX
25
313 REV.970901
HL
EXPLANATION OF MODEL CODING
BASIC UNIT SERIES
HL = Rapid forward and reverse
SIZE OF UNIT
REDUCTION RATIO
Only used for non standard reduction ratios
TYPE OF BRAKE
-7 Automatic brake, clockwise drum rotation, external circulation flow
-8 Automatic brake, external brake release, clockwise drum rotation,
external circulation flow
-9 Automatic brake, external brake release, counterclockwise drum
rotation, external circulation flow
-10 Automatic brake, counterclockwise drum rotation, external
circulation flow
HYDRAULIC MOTOR
-86 Standard hydraulic gear motor - WM76 (12.3 in
3
displacement)
-129 Standard hydraulic piston motor - VOLVO 110 cc (6.7 in
3
displacement)
(For other motor options contact factory)
DRUM SIZE
-1 10 inch drum diameter X 17 inch flange diameter X 11 inch length - STANDARD
(For other drum sizes refer to APPENDIX A)
OPTIONS
-F Hydraulically actuated freespooling
DESIGN REVISION
SPECIFICATION NUMBER
Describes features not identified by preceding codes
NOTE: Clockwise and counterclockwise drum rotation is the direction of rotation for pulling or hoisting,
established by looking at the hydraulic motor.
