PAGE 28
PART NO.
QTY.
ITEM NO.
DESCRIPTION

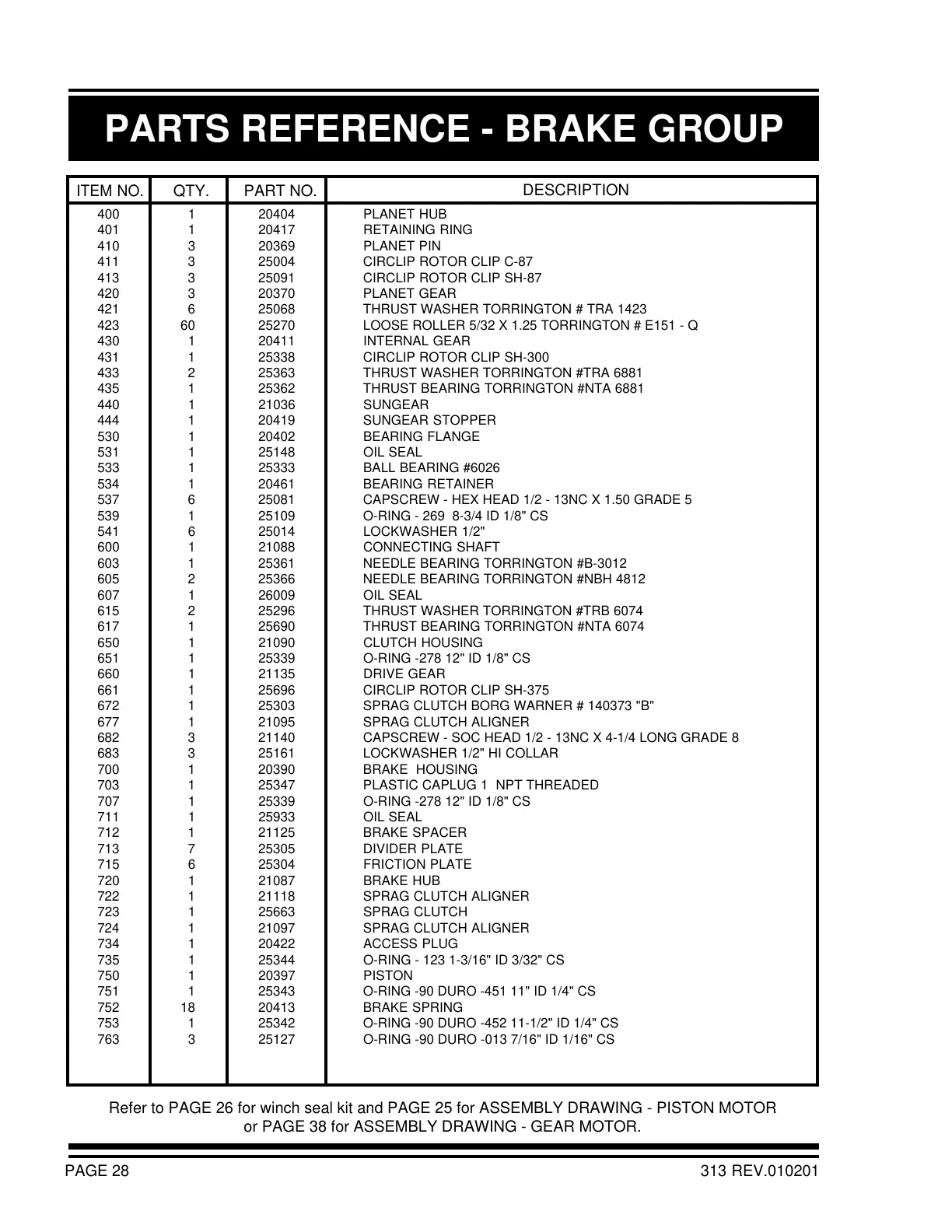

PARTS REFERENCE - BRAKE GROUP
400 1 20404 PLANET HUB
401 1 20417 RETAINING RING
410 3 20369 PLANET PIN
411 3 25004 CIRCLIP ROTOR CLIP C-87
413 3 25091 CIRCLIP ROTOR CLIP SH-87
420 3 20370 PLANET GEAR
421 6 25068 THRUST WASHER TORRINGTON # TRA 1423
423 60 25270 LOOSE ROLLER 5/32 X 1.25 TORRINGTON # E151 - Q
430 1 20411 INTERNAL GEAR
431 1 25338 CIRCLIP ROTOR CLIP SH-300
433 2 25363 THRUST WASHER TORRINGTON #TRA 6881
435 1 25362 THRUST BEARING TORRINGTON #NTA 6881
440 1 21036 SUNGEAR
444 1 20419 SUNGEAR STOPPER
530 1 20402 BEARING FLANGE
531 1 25148 OIL SEAL
533 1 25333 BALL BEARING #6026
534 1 20461 BEARING RETAINER
537 6 25081 CAPSCREW - HEX HEAD 1/2 - 13NC X 1.50 GRADE 5
539 1 25109 O-RING - 269 8-3/4 ID 1/8" CS
541 6 25014 LOCKWASHER 1/2"
600 1 21088 CONNECTING SHAFT
603 1 25361 NEEDLE BEARING TORRINGTON #B-3012
605 2 25366 NEEDLE BEARING TORRINGTON #NBH 4812
607 1 26009 OIL SEAL
615 2 25296 THRUST WASHER TORRINGTON #TRB 6074
617 1 25690 THRUST BEARING TORRINGTON #NTA 6074
650 1 21090 CLUTCH HOUSING
651 1 25339 O-RING -278 12" ID 1/8" CS
660 1 21135 DRIVE GEAR
661 1 25696 CIRCLIP ROTOR CLIP SH-375
672 1 25303 SPRAG CLUTCH BORG WARNER # 140373 "B"
677 1 21095 SPRAG CLUTCH ALIGNER
682 3 21140 CAPSCREW - SOC HEAD 1/2 - 13NC X 4-1/4 LONG GRADE 8
683 3 25161 LOCKWASHER 1/2" HI COLLAR
700 1 20390 BRAKE HOUSING
703 1 25347 PLASTIC CAPLUG 1 NPT THREADED
707 1 25339 O-RING -278 12" ID 1/8" CS
711 1 25933 OIL SEAL
712 1 21125 BRAKE SPACER
713 7 25305 DIVIDER PLATE
715 6 25304 FRICTION PLATE
720 1 21087 BRAKE HUB
722 1 21118 SPRAG CLUTCH ALIGNER
723 1 25663 SPRAG CLUTCH
724 1 21097 SPRAG CLUTCH ALIGNER
734 1 20422 ACCESS PLUG
735 1 25344 O-RING - 123 1-3/16" ID 3/32" CS
750 1 20397 PISTON
751 1 25343 O-RING -90 DURO -451 11" ID 1/4" CS
752 18 20413 BRAKE SPRING
753 1 25342 O-RING -90 DURO -452 11-1/2" ID 1/4" CS
763 3 25127 O-RING -90 DURO -013 7/16" ID 1/16" CS
313 REV.010201
Refer to PAGE 26 for winch seal kit and PAGE 25 for ASSEMBLY DRAWING - PISTON MOTOR
or PAGE 38 for ASSEMBLY DRAWING - GEAR MOTOR.
