PAGE 26 313 REV.970901

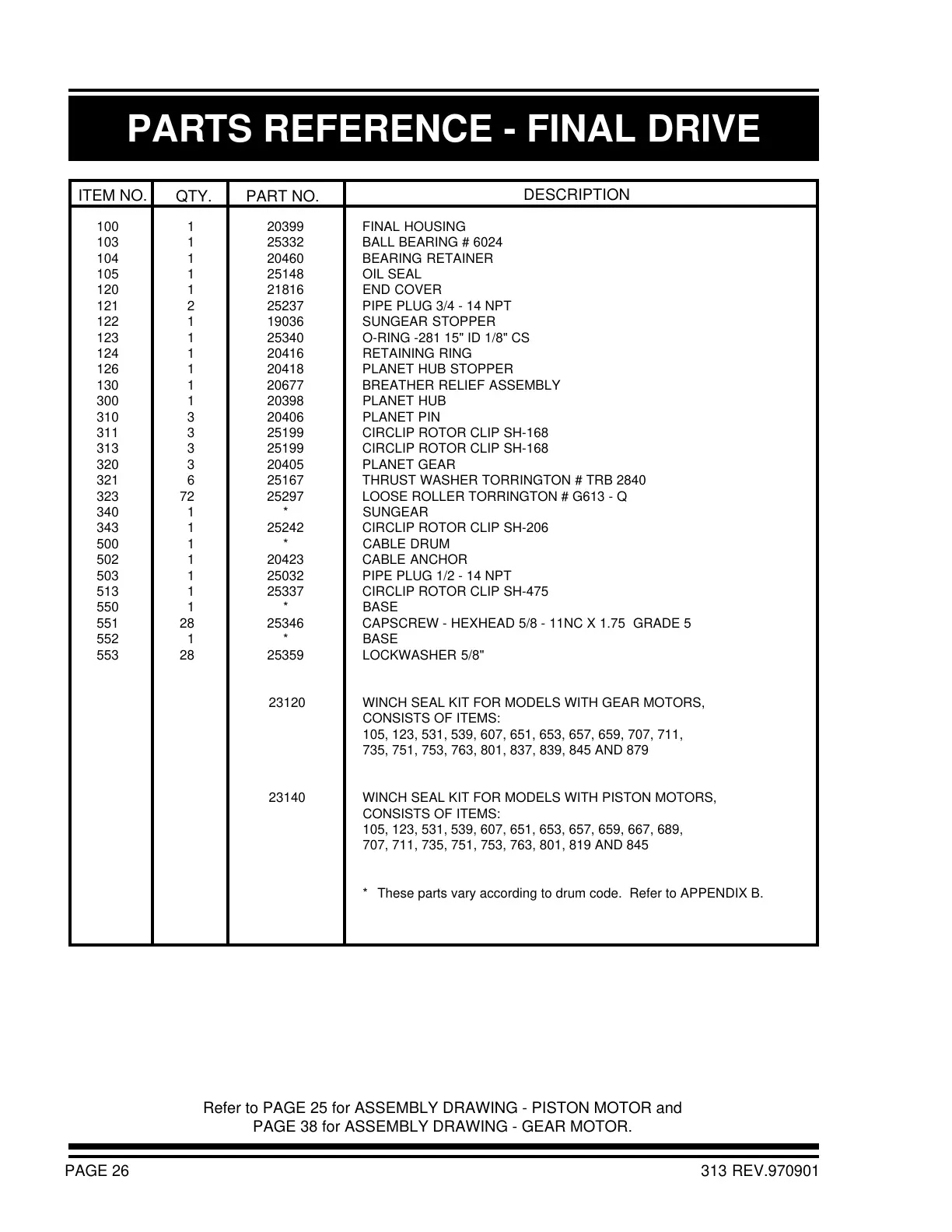

PARTS REFERENCE - FINAL DRIVE
Refer to PAGE 25 for ASSEMBLY DRAWING - PISTON MOTOR and
PAGE 38 for ASSEMBLY DRAWING - GEAR MOTOR.
ITEM NO.
QTY.
PART NO.
DESCRIPTION
100 1 20399 FINAL HOUSING
103 1 25332 BALL BEARING # 6024
104 1 20460 BEARING RETAINER
105 1 25148 OIL SEAL
120 1 21816 END COVER
121 2 25237 PIPE PLUG 3/4 - 14 NPT
122 1 19036 SUNGEAR STOPPER
123 1 25340 O-RING -281 15" ID 1/8" CS
124 1 20416 RETAINING RING
126 1 20418 PLANET HUB STOPPER
130 1 20677 BREATHER RELIEF ASSEMBLY
300 1 20398 PLANET HUB
310 3 20406 PLANET PIN
311 3 25199 CIRCLIP ROTOR CLIP SH-168
313 3 25199 CIRCLIP ROTOR CLIP SH-168
320 3 20405 PLANET GEAR
321 6 25167 THRUST WASHER TORRINGTON # TRB 2840
323 72 25297 LOOSE ROLLER TORRINGTON # G613 - Q
340 1 * SUNGEAR
343 1 25242 CIRCLIP ROTOR CLIP SH-206
500 1 * CABLE DRUM
502 1 20423 CABLE ANCHOR
503 1 25032 PIPE PLUG 1/2 - 14 NPT
513 1 25337 CIRCLIP ROTOR CLIP SH-475
550 1 * BASE
551 28 25346 CAPSCREW - HEXHEAD 5/8 - 11NC X 1.75 GRADE 5
552 1 * BASE
553 28 25359 LOCKWASHER 5/8"
23120 WINCH SEAL KIT FOR MODELS WITH GEAR MOTORS,
CONSISTS OF ITEMS:
105, 123, 531, 539, 607, 651, 653, 657, 659, 707, 711,
735, 751, 753, 763, 801, 837, 839, 845 AND 879
23140 WINCH SEAL KIT FOR MODELS WITH PISTON MOTORS,
CONSISTS OF ITEMS:
105, 123, 531, 539, 607, 651, 653, 657, 659, 667, 689,
707, 711, 735, 751, 753, 763, 801, 819 AND 845
* These parts vary according to drum code. Refer to APPENDIX B.
