PAGE 30

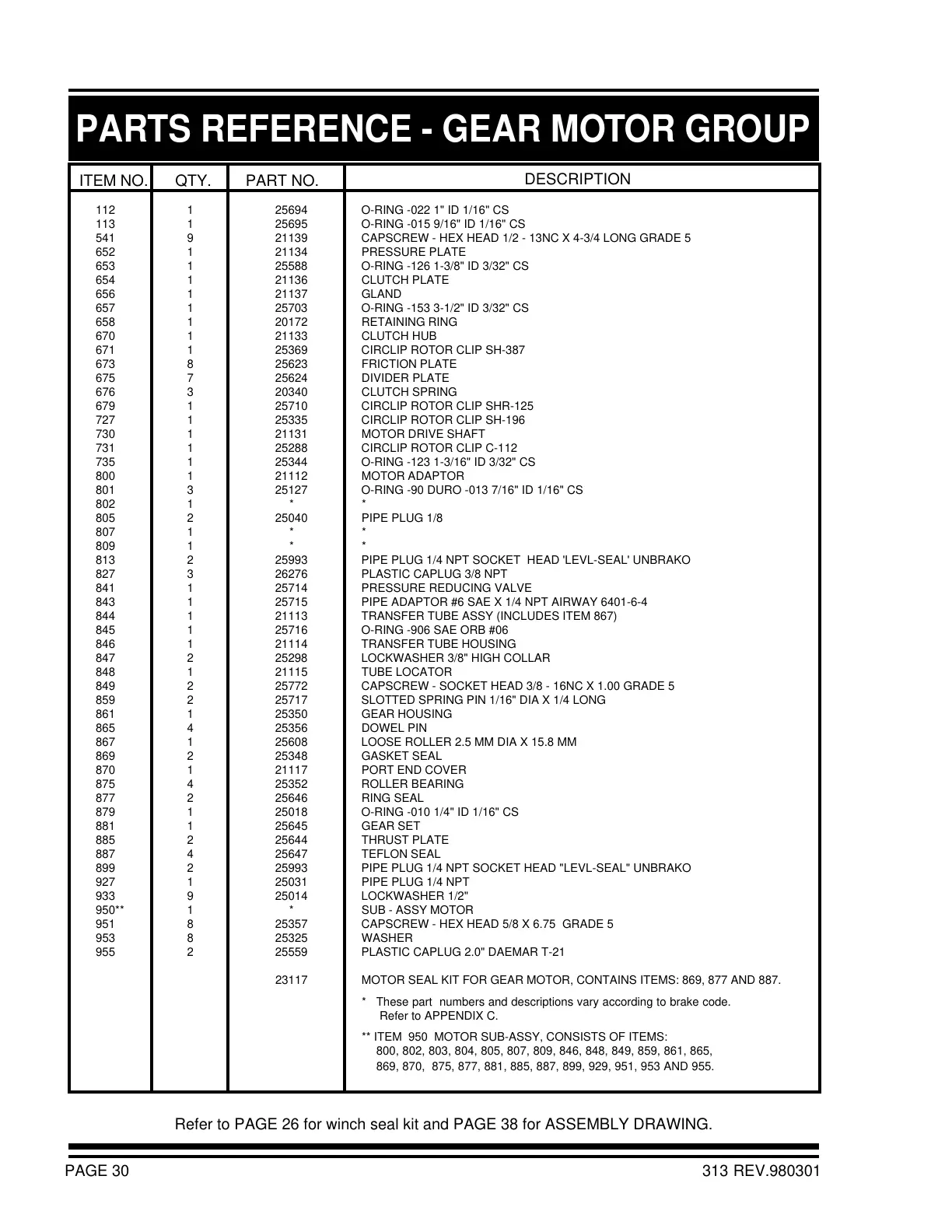

PARTS REFERENCE - GEAR MOTOR GROUP
QTY.
PART NO.
DESCRIPTION
112 1 25694 O-RING -022 1" ID 1/16" CS
113 1 25695 O-RING -015 9/16" ID 1/16" CS
541 9 21139 CAPSCREW - HEX HEAD 1/2 - 13NC X 4-3/4 LONG GRADE 5
652 1 21134 PRESSURE PLATE
653 1 25588 O-RING -126 1-3/8" ID 3/32" CS
654 1 21136 CLUTCH PLATE
656 1 21137 GLAND
657 1 25703 O-RING -153 3-1/2" ID 3/32" CS
658 1 20172 RETAINING RING
670 1 21133 CLUTCH HUB
671 1 25369 CIRCLIP ROTOR CLIP SH-387
673 8 25623 FRICTION PLATE
675 7 25624 DIVIDER PLATE
676 3 20340 CLUTCH SPRING
679 1 25710 CIRCLIP ROTOR CLIP SHR-125
727 1 25335 CIRCLIP ROTOR CLIP SH-196
730 1 21131 MOTOR DRIVE SHAFT
731 1 25288 CIRCLIP ROTOR CLIP C-112
735 1 25344 O-RING -123 1-3/16" ID 3/32" CS
800 1 21112 MOTOR ADAPTOR
801 3 25127 O-RING -90 DURO -013 7/16" ID 1/16" CS
802 1 * *
805 2 25040 PIPE PLUG 1/8
807 1 * *
809 1 * *
813 2 25993 PIPE PLUG 1/4 NPT SOCKET HEAD 'LEVL-SEAL' UNBRAKO
827 3 26276 PLASTIC CAPLUG 3/8 NPT
841 1 25714 PRESSURE REDUCING VALVE
843 1 25715 PIPE ADAPTOR #6 SAE X 1/4 NPT AIRWAY 6401-6-4
844 1 21113 TRANSFER TUBE ASSY (INCLUDES ITEM 867)
845 1 25716 O-RING -906 SAE ORB #06
846 1 21114 TRANSFER TUBE HOUSING
847 2 25298 LOCKWASHER 3/8" HIGH COLLAR
848 1 21115 TUBE LOCATOR
849 2 25772 CAPSCREW - SOCKET HEAD 3/8 - 16NC X 1.00 GRADE 5
859 2 25717 SLOTTED SPRING PIN 1/16" DIA X 1/4 LONG
861 1 25350 GEAR HOUSING
865 4 25356 DOWEL PIN
867 1 25608 LOOSE ROLLER 2.5 MM DIA X 15.8 MM
869 2 25348 GASKET SEAL
870 1 21117 PORT END COVER
875 4 25352 ROLLER BEARING
877 2 25646 RING SEAL
879 1 25018 O-RING -010 1/4" ID 1/16" CS
881 1 25645 GEAR SET
885 2 25644 THRUST PLATE
887 4 25647 TEFLON SEAL
899 2 25993 PIPE PLUG 1/4 NPT SOCKET HEAD "LEVL-SEAL" UNBRAKO
927 1 25031 PIPE PLUG 1/4 NPT
933 9 25014 LOCKWASHER 1/2"
950** 1 * SUB - ASSY MOTOR
951 8 25357 CAPSCREW - HEX HEAD 5/8 X 6.75 GRADE 5
953 8 25325 WASHER
955 2 25559 PLASTIC CAPLUG 2.0" DAEMAR T-21
23117 MOTOR SEAL KIT FOR GEAR MOTOR, CONTAINS ITEMS: 869, 877 AND 887.
LK;
* These part numbers and descriptions vary according to brake code.
Refer to APPENDIX C.
LK;
** ITEM 950 MOTOR SUB-ASSY, CONSISTS OF ITEMS:
800, 802, 803, 804, 805, 807, 809, 846, 848, 849, 859, 861, 865,
869, 870, 875, 877, 881, 885, 887, 899, 929, 951, 953 AND 955.
ITEM NO.
313 REV.980301
Refer to PAGE 26 for winch seal kit and PAGE 38 for ASSEMBLY DRAWING.
