PAGE 32
QTY.
PART NO.
DESCRIPTION
541 9 25014 LOCKWASHER 1/2"
652 1 21635 PRESSURE PLATE
653 1 25588 O-RING -126 1-3/8" ID 3/32" CS
654 1 21136 CLUTCH PLATE
656 1 21137 GLAND
657 1 25703 O-RING -153 3-1/2" ID 3/32" CS
658 1 20172 RETAINING RING
664 1 21568 BEARING CARRIER
665 1 25810 BALL BEARING 065 X 100 X 18 # 6013
666 2 21634 SEAL RING
667 1 25858 O-RING -237 3-3/8 ID 1/8 CS
668 1 21623 CLUTCH CONNECTOR
669 1 25856 NEEDLE BEARING TORRINGTON # NB4012
670 1 21549 CLUTCH HUB
671 1 25369 CIRCLIP ROTOR CLIP SH-387
673 8 25623 FRICTION PLATE
675 7 25624 DIVIDER PLATE
676 3 20340 CLUTCH SPRING
679 1 25710 CIRCLIP ROTOR CLIP SHR-125
685 6 25161 LOCKWASHER 1/2" HI COLLAR
687 6 25424 CAPSCREW - SOCKET HEAD 1/2 - 13NC X 1.50 GRADE 5
689 2 25694 O-RING -022 1" ID 1/16" CS
727 1 25335 CIRCLIP ROTOR CLIP SH-196
730 1 21570 MOTOR DRIVE SHAFT
735 1 25344 O-RING -123 1-3/16" ID 3/32" CS
800 1 22116 MOTOR ADAPTOR
801 3 25127 O-RING -90 DURO -013 7/16" ID 1/16" CS
803 1 25370 PIPE PLUG 1/16 NPT
805 2 25040 PIPE PLUG 1/8
807 1 25040 PIPE PLUG 1/8
815 4 25564 CAPSCREW - HEX HEAD 3/4 - 10NC X 2.00 GRADE 5
817 4 25299 LOCKWASHER 3/4"
819 1 25061 O-RING -163 6" ID 3/32" CS
826 1 25491 PIPE NIPPLE 1/4 NPT AIRWAY 5405-4-4
827 3 26276 PLASTIC CAPLUG 3/8 NPT
828 1 26048 PIPE COUPLING 1/4 NPT AIRWAY 5000-4-4
841 1 25714 PRESSURE REDUCING VALVE
843 1 25715 PIPE ADAPTOR #6 SAE X 1/4 NPT AIRWAY 6401-6-4
845 1 25716 O-RING -906 SAE ORB #06
850 1 23223 MOTOR -129 VOLVO F12-110
852 1 22715 TUBE ASSEMBLY 1/4" OD 1/8 NPT X 1/8 NPT -90L
931 9 21139 CAPSCREW - HEX HEAD 1/2 - 13NC X 4-3/4 LONG
939 1 25040 PIPE PLUG 1/8 NPT
ITEM NO.

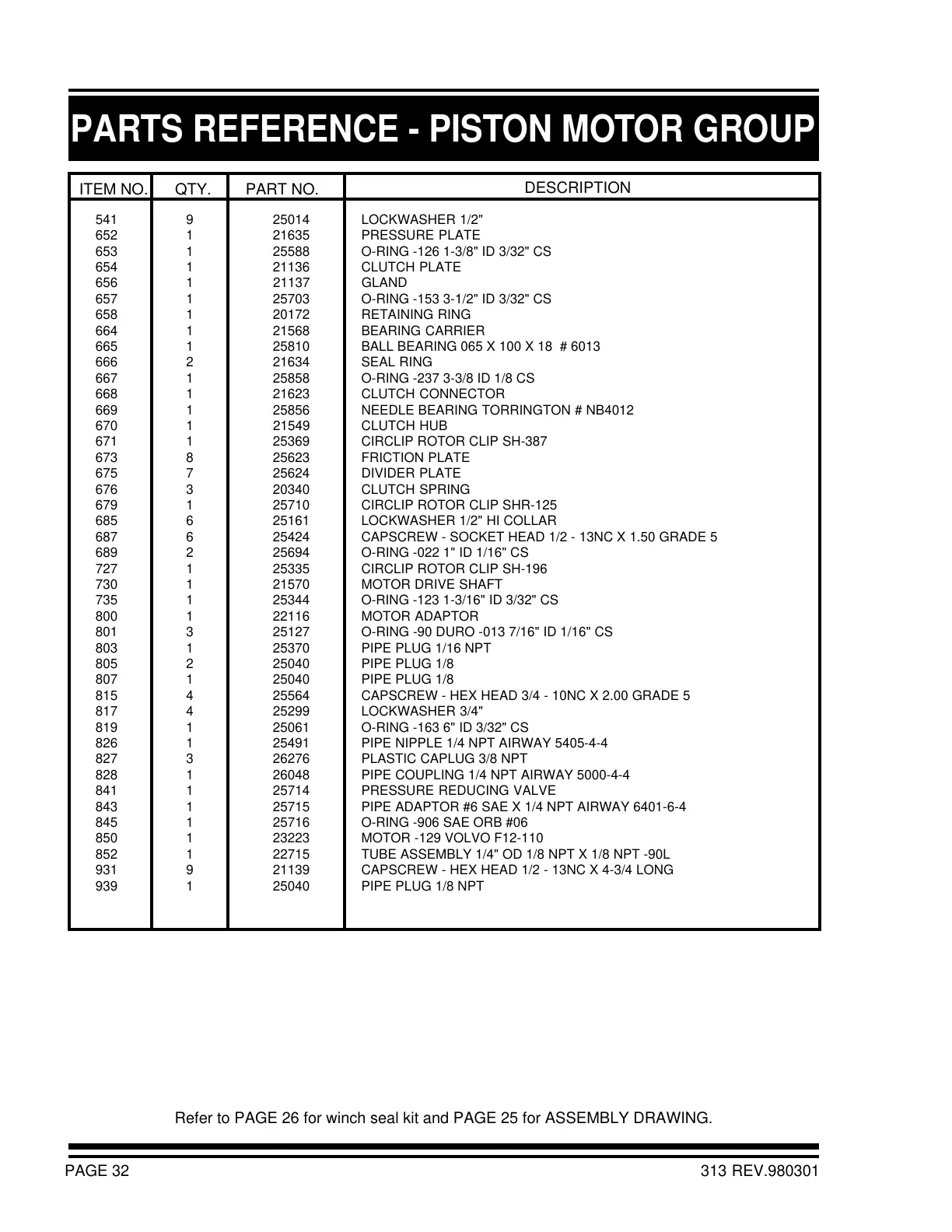

PARTS REFERENCE - PISTON MOTOR GROUP
Refer to PAGE 26 for winch seal kit and PAGE 25 for ASSEMBLY DRAWING.
313 REV.980301
