-9-
1 Feed Gap Adjustment
2 Dust Pocket
3 Hopper Guide
4 Upper Cover Lever
5 Lower Cover Lever
6 Power Switch
7 I/O Port
Adjustment screw for feed gap size
Pocket for Colleting Dusts on Operation
Adjustable Guides to Note Size
Latch Handle to open Upper Cover
Latch Handle to open Lower Cover
Switch for Power On/Off
I/O port (Refer to “I/O port” on page12)
Installation Guide

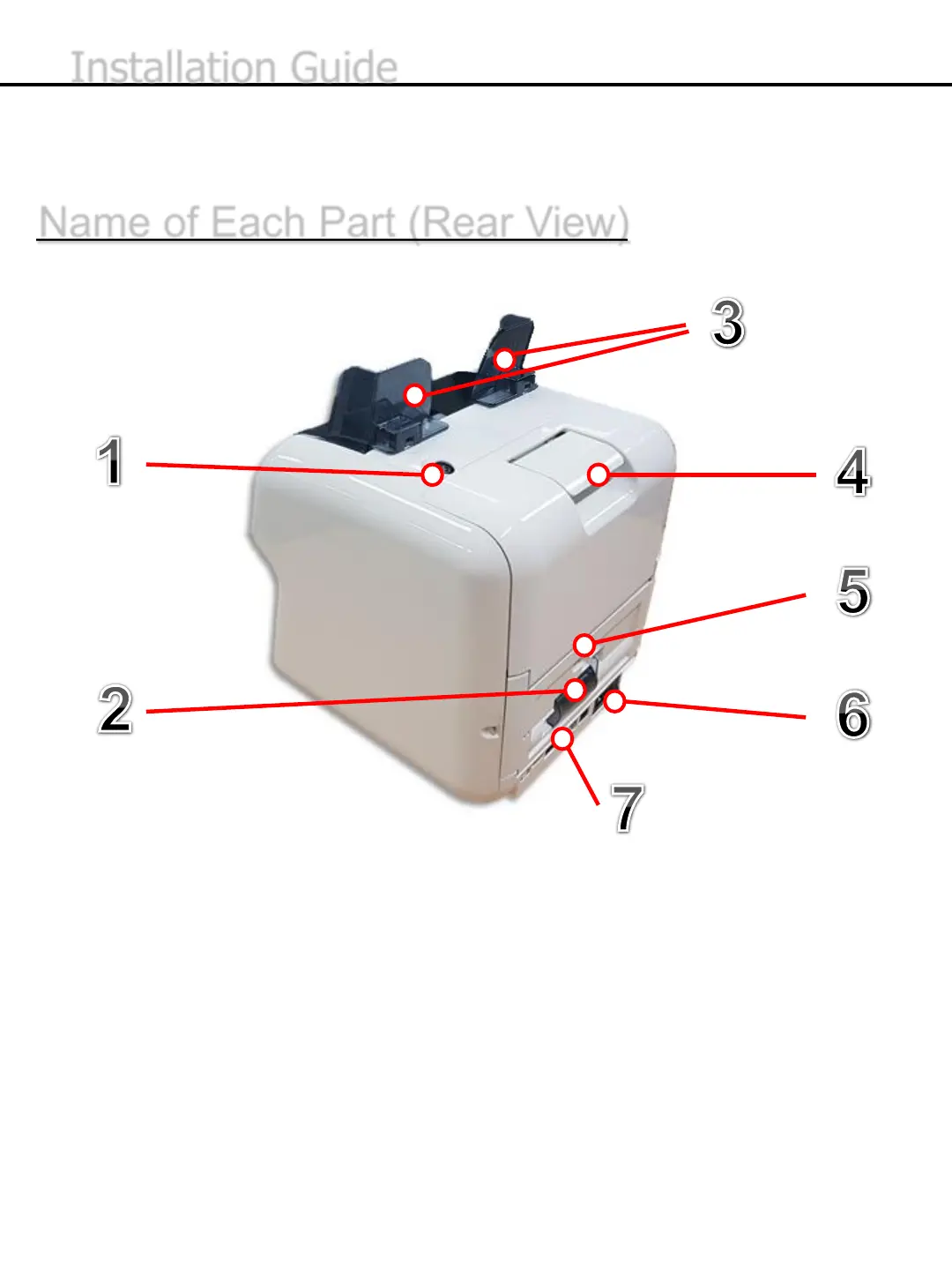

Name of Each Part (Rear View)
